WLS70ZXW900DAQM Banner Signal Beacons
Part#:WLS70ZXW900DAQM
Manufacturer:Banner
Alt. Part#:809470
Product Lifecycle:Active
Get a quick Quote!

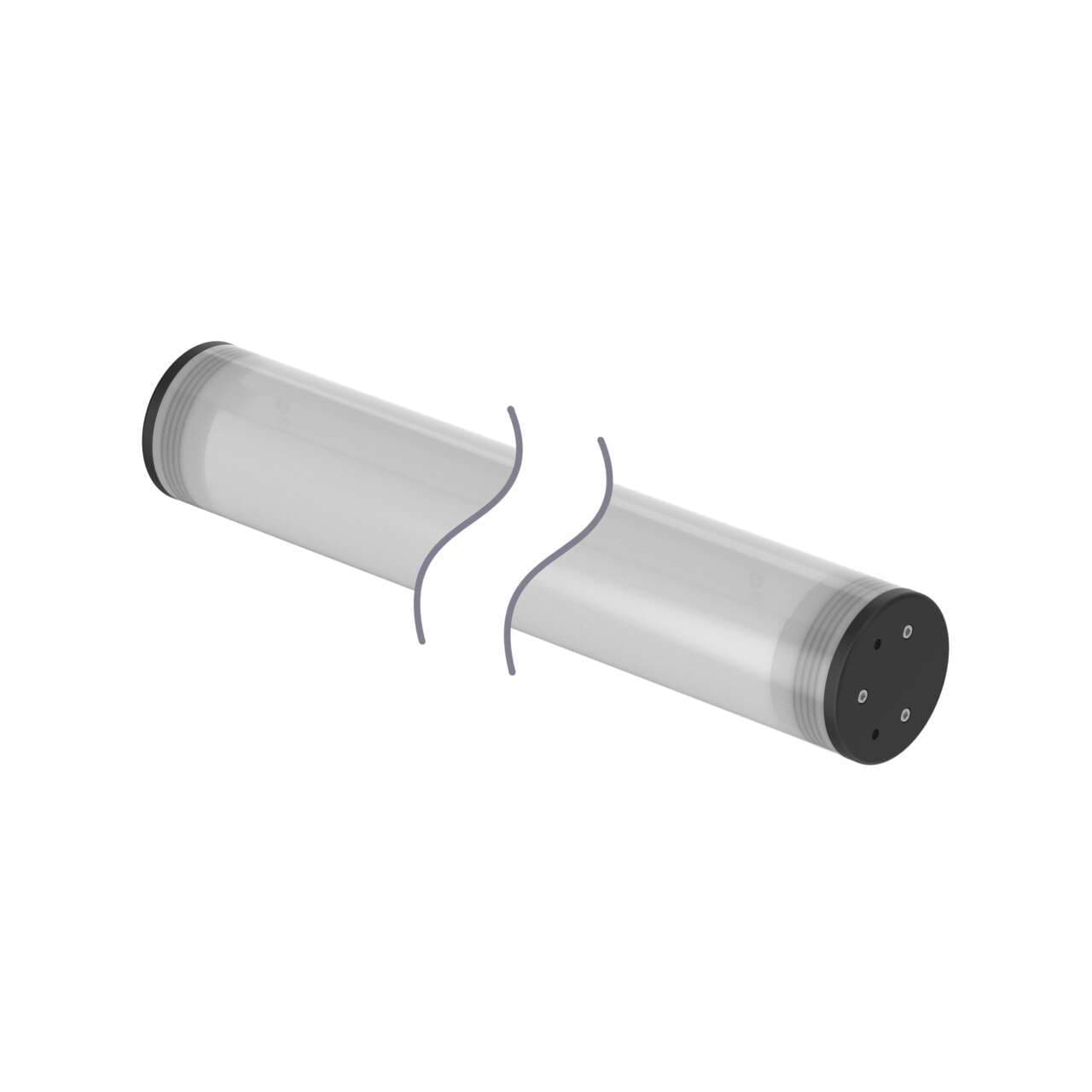

WLS70 Sealed Work Light; Length: 900 mm; 0-10 V dc Analog Dimming; Voltage: 120-277 V ac; Environ. Rating: IP65; Color: White; Diffused Window; 5-pin Mini Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS70ZXW900DAQM Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 3628.736 g
- Country Of Origin MX
- Wireless No
- Pro-Editor Compatible (Discrete) No
- IO Link No
- Modbus RTU No
- Feature: Quick Disconnect Yes
- Feature: Chemical Resistant No
- Primary Window Material Polycarbonate Diffused
- Feature: Audible No
- Feature: Hazardous Area No
- Secondary Material Metal
- Storage Temp (°C) -40 to 70
- Max Op. Temperature (°C) 50
- Min Op. Temperature (°C) -40
- Environmental Rating IP65
- Illuminated Length (LxWxH mm) 898
- Max Current Color (mA) 320
- Physical Dimensions (LxWxH or DxH mm) 68.5 x 965.3
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Number of Input Pins/Conductors 5
- Supply Voltage 100-277 V ac
- Dimming Option 0-10 V dc
- Quick Disconnect Type 7/8 in. (Mini)
- Lumens Color 1 4050
- Connection Integral QD
- Animation Option 1 Solid On
- Color Option 1 White
- Color Technology Standard LED
- Illumination Yes
- Product Size (mm) 70
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Number of Colors / Segments 1
- Mounting Thread No Thread
- Housing Style Linear Strip
- Power Source AC
- Primary Housing Material Polycarbonate
- Power AC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
WLS70ZXW900DAQM Description
Banner Engineering WLS70ZXW900DAQM is a task light designed for industrial applications, featuring LED technology with a single-color Daylight White illumination. It is equipped with a diffused window and offers 0-10Vdc analog dimming control input for adjustable lighting. This model operates on a supply voltage range of 100Vac-277Vac, accommodating various standard voltages such as 120Vac, 220Vac, 230Vac, and 240Vac. The light measures 900mm in length and 70mm in depth, constructed with a polycarbonate outer housing and a clear anodized aluminum housing for durability. It connects via a pre-equipped 5-pin 7/8"-16UN-2B Mini-style QD connector, featuring a cylindrical linear strip shape. The WLS70ZXW900DAQM is rated with an IP65 degree of protection, making it suitable for use in environments with temperatures ranging from -40°C to +50°C.
