WLS70ZCW1200DAQM Banner Signal Beacons

WLS70ZCW1200DAQM on Powermatic Associates
Banner

Part#:WLS70ZCW1200DAQM

Manufacturer:Banner

Alt. Part#:809745

Product Lifecycle:Active

Get a quick Quote!

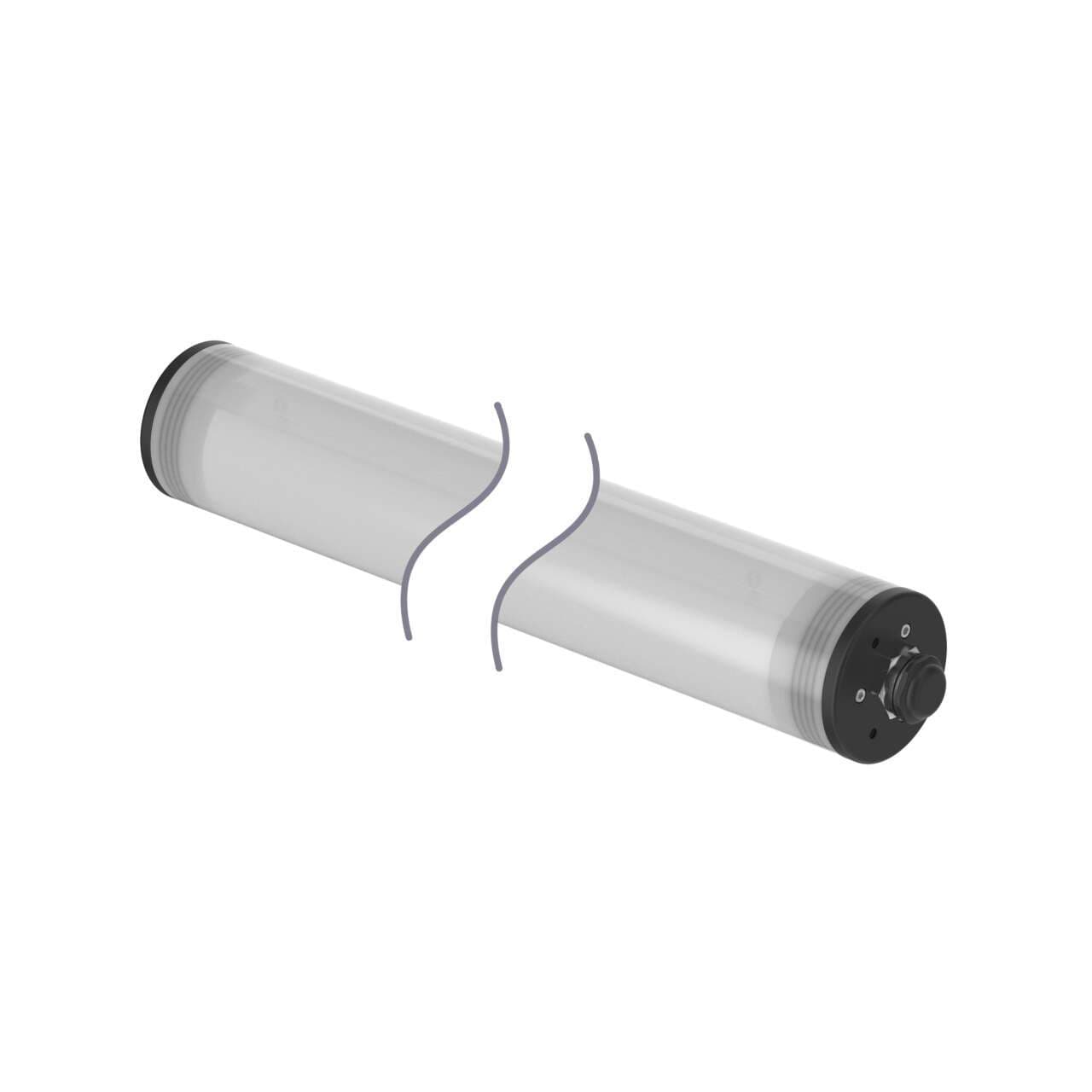

WLS70 Sealed Work Light; Length: 1200 mm; 0-10 V dc Analog Dimming; Voltage: 120-277 V ac; Environ. Rating: IP65; Color: White; Diffused Window; Cascadable; 5-pin Mini Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS70ZCW1200DAQM Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    4399.8424 g
  • Country Of Origin
    MX
  • Feature: Quick Disconnect
    Yes
  • Min Op. Temperature (°C)
    -40
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Feature: Chemical Resistant
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Hazardous Area
    No
  • Feature: Cascade
    Yes
  • Feature: Audible
    No
  • Secondary Material
    Metal
  • Primary Window Material
    Polycarbonate Diffused
  • Storage Temp (°C)
    -40 to 70
  • Max Op. Temperature (°C)
    50
  • Environmental Rating
    IP65
  • Physical Dimensions (LxWxH or DxH mm)
    68.5 x 1263.0
  • Illuminated Length (LxWxH mm)
    1196
  • Supply Voltage
    100-277 V ac
  • Color 1 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
  • Number of Input Pins/Conductors
    5
  • Dimming Option
    0-10 V dc
  • Max Current Color (mA)
    420
  • Quick Disconnect Type
    7/8 in. (Mini)
  • Lumens Color 1
    5400
  • Animation Option 1
    Solid On
  • Connection
    Integral QD
  • Color Option 1
    White
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Number of Colors / Segments
    1
  • Color Technology
    Standard LED
  • Housing Style
    Linear Strip
  • Power
    AC
  • Illumination
    Yes
  • Product Size (mm)
    70
  • Mounting Thread
    No Thread
  • Primary Housing Material
    Polycarbonate
  • Power Source
    AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLS70ZCW1200DAQM Description

Banner Engineering WLS70ZCW1200DAQM is a task light designed for industrial applications, featuring a cascading LED strip light/bar with a diffused window and 0-10Vdc analog dimming control input for 1-color Daylight White (W) LED illumination. It operates on a supply voltage range of 100Vac-277Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac. The dimensions of this product are L1200mm x D70mm, constructed with a polycarbonate (PC) outer housing and a clear anodized aluminum housing, ensuring durability. It comes pre-equipped with a 5-pin 7/8"-16UN-2B Mini-style QD connector for easy connection. The cylindrical linear strip shape of this light is designed to fit a variety of spaces, and it boasts an IP65 degree of protection, making it suitable for use in environments with temperatures ranging from -40°C to +50°C.

Related documents WLS70ZCW1200DAQM Specs

WLS70ZCW1200DAQM 216262.pdf
