WLS70ZXW1200DAQM Banner Signal Beacons

Name: WLS70ZXW1200DAQM
Brand: Banner
Price: 611 USD
Availability: BackOrder

WLS70ZXW1200DAQM on Powermatic Associates

Part#:WLS70ZXW1200DAQM

Manufacturer:Banner

Alt. Part#:809471

Product Lifecycle:Active

Get a quick Quote!

WLS70 Sealed Work Light; Length: 1200 mm; 0-10 V dc Analog Dimming; Voltage: 120-277 V ac; Environ. Rating: IP65; Color: White; Diffused Window; 5-pin Mini Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS70ZXW1200DAQM Banner price in the box on the right side or send a quick quote.

Product Details

Weight
4241.0852 g
Country Of Origin
MX
IO Link
No
Pro-Editor Compatible (Discrete)
No
Wireless
No
Modbus RTU
No
Feature: Audible
No
Feature: Quick Disconnect
Yes
Feature: Chemical Resistant
No
Feature: Hazardous Area
No
Secondary Material
Metal
Primary Window Material
Polycarbonate Diffused
Storage Temp (°C)
-40 to 70
Min Op. Temperature (°C)
-40
Max Op. Temperature (°C)
50
Physical Dimensions (LxWxH or DxH mm)
68.5 x 1263.0
Environmental Rating
IP65
Illuminated Length (LxWxH mm)
1196
Number of Input Pins/Conductors
5
Supply Voltage
100-277 V ac

Dimming Option

0-10 V dc

Max Current Color (mA)

420

Quick Disconnect Type

7/8 in. (Mini)

Color 1 - Wavelength/Color Temp/Coordinates

5000K (Daylight)

Lumens Color 1

5400

Connection

Integral QD

Animation Option 1

Solid On

Color Option 1

White

Color Technology

Standard LED

Number of Colors / Segments

Power

Mounting Thread

No Thread

Housing Style

Linear Strip

Product Size (mm)

Power Source

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Illumination

Yes

Primary Housing Material

Polycarbonate

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLS70ZXW1200DAQM Description

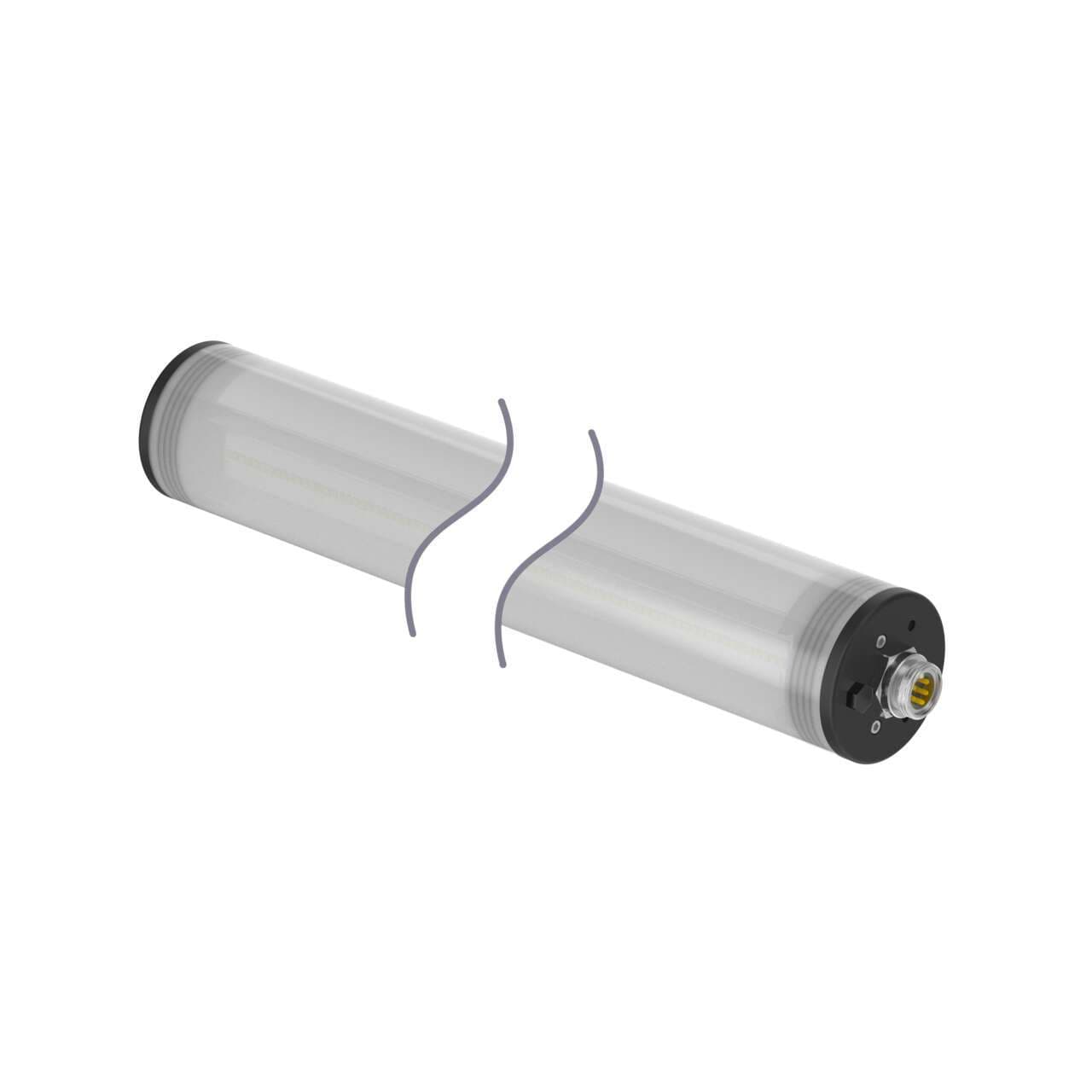

Banner Engineering WLS70ZXW1200DAQM is a task light designed as an LED industrial strip light/bar with a diffused window and 0-10Vdc analog dimming control input for 1-color Daylight White (W) LED illumination. It operates on a supply voltage of 100Vac-277Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac. The dimensions of this product are L1200mm x D70mm, featuring a polycarbonate (PC) outer housing and a clear anodized aluminum housing for durability. It is pre-equipped with a 5-pin 7/8"-16UN-2B Mini-style QD connector for connectivity. The cylindrical linear strip shape of this light is designed to meet IP65 protection standards, making it suitable for use in environments with ambient air temperatures ranging from -40°C to +50°C.

$611.00

Request a quote, and we will send availability within minutes.

Select Qty:

$611.00

$611.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
