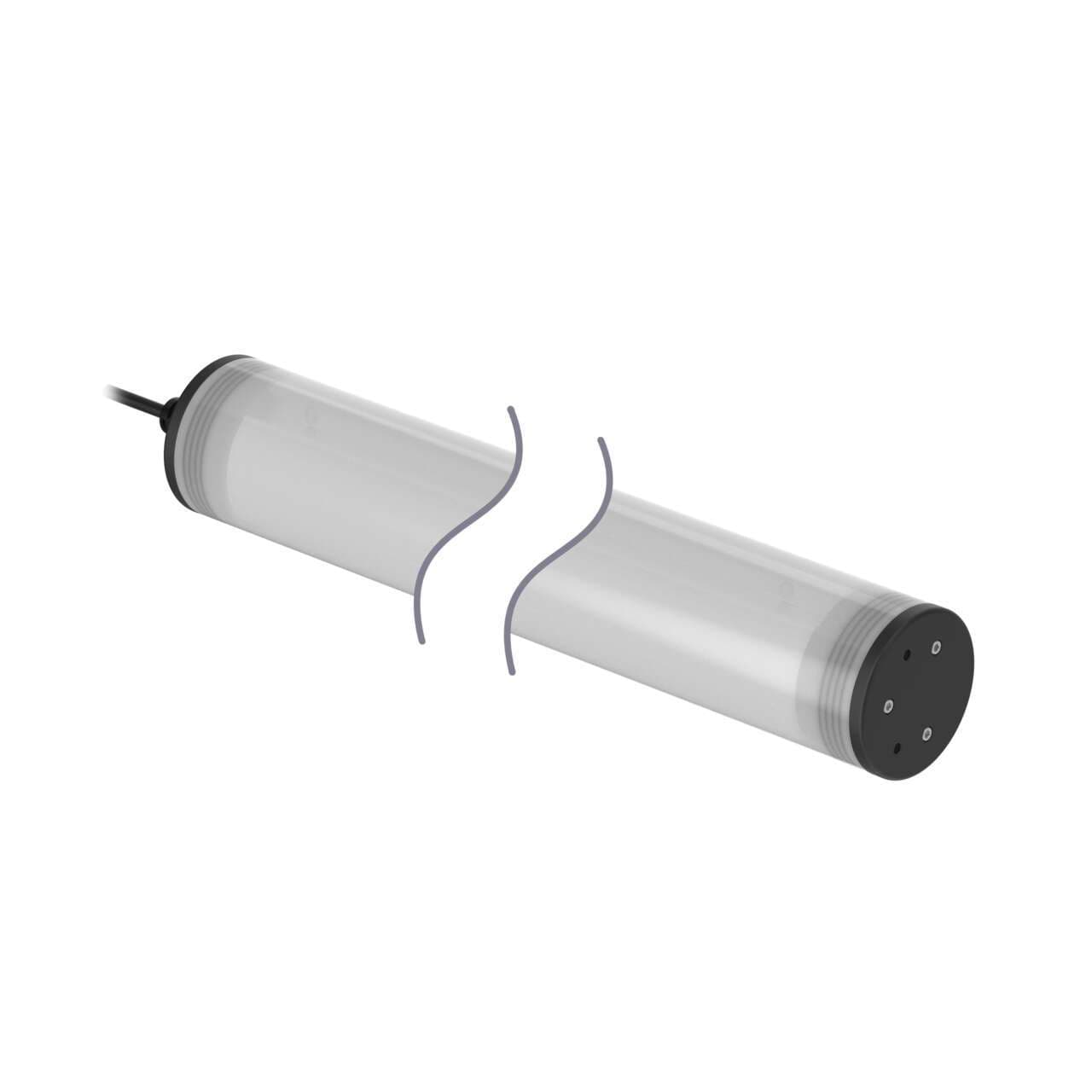

WLS70XW600DPWM Banner Signal Beacons
Part#:WLS70XW600DPWM
Manufacturer:Banner
Alt. Part#:809477
Product Lifecycle:Active
Get a quick Quote!
WLS70 Sealed Work Light; Length: 600 mm; PWM Dimming; Voltage: 12-30 V dc; Environ. Rating: IP65; Color: White; Diffused Window; 2 m (6.5 ft) Integral Cable
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS70XW600DPWM Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 1687.36224 g
- Country Of Origin MX
- Wireless No
- Modbus RTU No
- Pro-Editor Compatible (Discrete) No
- IO Link No
- Feature: Quick Disconnect No
- Secondary Material Metal
- Feature: Audible No
- Feature: Chemical Resistant No
- Feature: Hazardous Area No
- Storage Temp (°C) -40 to 70
- Environmental Rating IP65
- Min Op. Temperature (°C) -40
- Max Op. Temperature (°C) 50
- Physical Dimensions (LxWxH or DxH mm) 68.5 x 667.6
- Primary Window Material Polycarbonate Diffused
- Supply Voltage 10-30 V dc
- Number of Input Pins/Conductors 4
- Illuminated Length (LxWxH mm) 600
- Dimming Option PWM
- Max Current Color (mA) 220
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Lumens Color 1 2700
- Color Option 1 White
- Connection Cable
- Animation Option 1 Solid On
- Color Technology Standard LED
- Product Size (mm) 70
- Number of Colors / Segments 1
- Power DC
- Mounting Thread No Thread
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Illumination Yes
- Primary Housing Material Polycarbonate
- Power Source DC
- Housing Style Linear Strip
- Cable Length (m) 2
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
WLS70XW600DPWM Description
Banner Engineering WLS70XW600DPWM is a task light designed for industrial applications, featuring LED technology in a diffused window design that is PWM dimmable. This 1-color Daylight White (W) LED illumination operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. It measures L600mm x D70mm and is constructed with a polycarbonate (PC) outer housing and a clear anodized aluminum housing for durability. The light is pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads for easy installation. Its cylindrical linear strip shape is designed to fit a variety of spaces, and it offers a degree of protection rated at IP65, making it suitable for use in environments with temperatures ranging from -40°C to +50°C.
