WLS70XW1200DPWM Banner Signal Beacons

WLS70XW1200DPWM on Powermatic Associates
Banner

Part#:WLS70XW1200DPWM

Manufacturer:Banner

Alt. Part#:809479

Product Lifecycle:Active

Get a quick Quote!

WLS70 Sealed Work Light; Length: 1200 mm; PWM Dimming; Voltage: 18-30 V dc; Environ. Rating: IP65; Color: White; Diffused Window; 2 m (6.5 ft) Integral Cable

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS70XW1200DPWM Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    3184.21584 g
  • Country Of Origin
    MX
  • Modbus RTU
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Feature: Hazardous Area
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Secondary Material
    Metal
  • Min Op. Temperature (°C)
    -40
  • Storage Temp (°C)
    -40 to 70
  • Max Op. Temperature (°C)
    50
  • Illuminated Length (LxWxH mm)
    1196
  • Physical Dimensions (LxWxH or DxH mm)
    68.5 x 1263.0
  • Environmental Rating
    IP65
  • Supply Voltage
    10-30 V dc
  • Number of Input Pins/Conductors
    4
  • Dimming Option
    PWM
  • Max Current Color (mA)
    420
  • Color 1 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
  • Connection
    Cable
  • Lumens Color 1
    5400
  • Product Size (mm)
    70
  • Color Technology
    Standard LED
  • Color Option 1
    White
  • Animation Option 1
    Solid On
  • Power Source
    DC
  • Number of Colors / Segments
    1
  • Mounting Thread
    No Thread
  • Power
    DC
  • Housing Style
    Linear Strip
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Illumination
    Yes
  • Primary Housing Material
    Polycarbonate
  • Cable Length (m)
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLS70XW1200DPWM Description

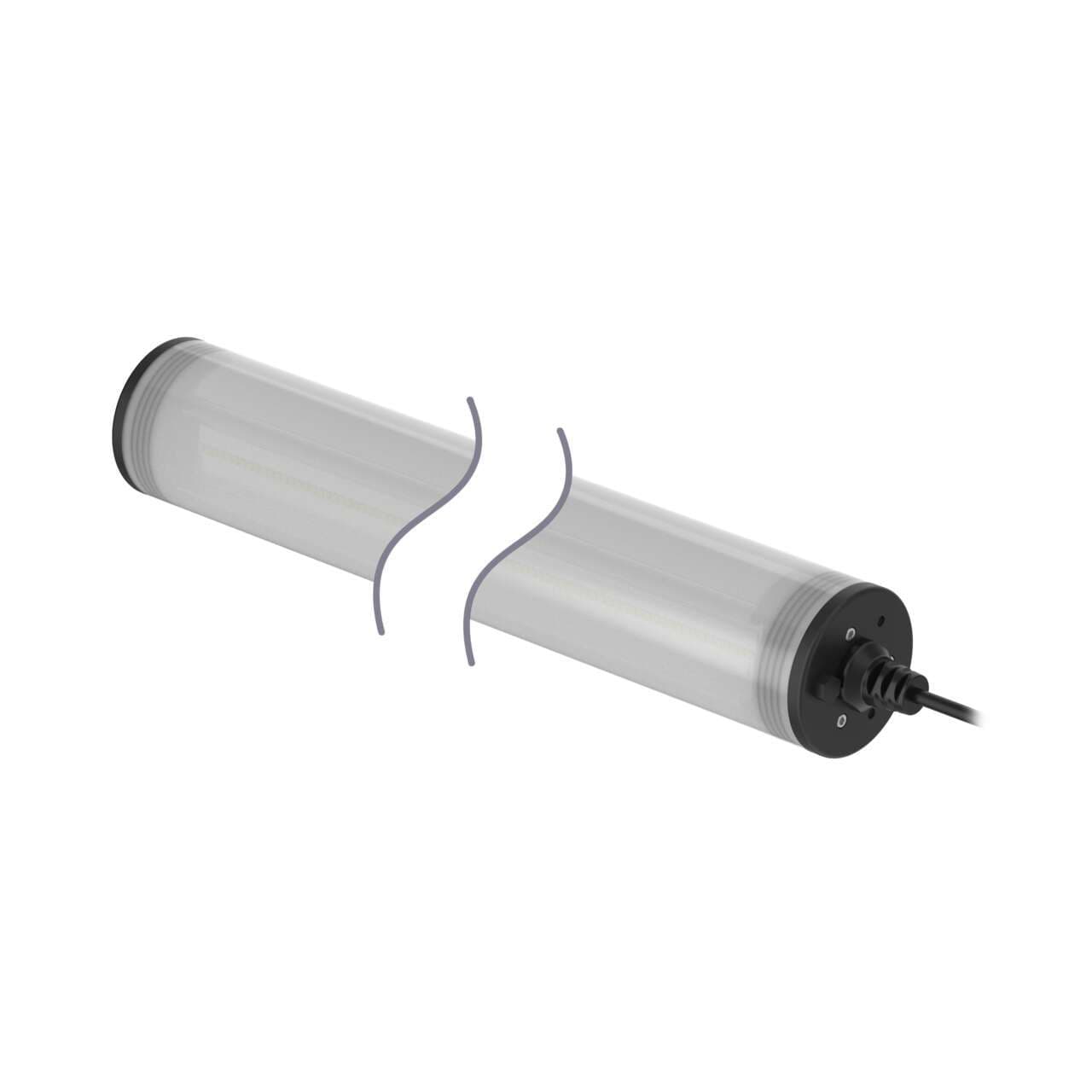

Banner Engineering WLS70XW1200DPWM is a task light designed for industrial applications, featuring LED technology in a diffused window design that is PWM dimmable. This 1-color Daylight White (W) LED illumination operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. It measures 1200mm in length and 70mm in diameter, constructed with a polycarbonate (PC) outer housing and a clear anodized aluminum housing for durability. The light is pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads for easy installation. Its cylindrical linear strip shape is designed to fit a variety of industrial settings. With an IP65 degree of protection, it is suitable for use in environments with temperatures ranging from -40°C to +50°C.

Related documents WLS70XW1200DPWM Specs

WLS70XW1200DPWM 216263.pdf

Manufacturer warranty

$598.00

Request a quote, and we will send availability within minutes.

Select Qty:

$598.00

$598.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
