T18S2P6FF50Q Banner Proximity Sensors

T18S2P6FF50Q on Powermatic Associates
Banner

Part#:T18S2P6FF50Q

Manufacturer:Banner

Category:Proximity Sensors

Alt. Part#:45163

Product Lifecycle:Active

Get a quick Quote!

EZ-BEAM T18 Series: Fixed Field; Range: 50 mm; Input: 10-30 V dc; Output: PNP - Light Operate; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the T18S2P6FF50Q Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    54.43104 g
  • Country Of Origin
    US
  • Opposed Mode Emitter/Receiver
    N/A
  • IO Link
    No
  • Feature: Health/ Marginal Signal Output
    Yes
  • DeviceNet
    No
  • Feature: Chemical Resistant
    Yes
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Washdown Rated
    Yes
  • Feature: Encapsulated
    Yes
  • Feature: Ecolab Certified
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Barrel Diameter (mm)
    18
  • Adjustments
    N/A
  • Indicator
    LEDs
  • NEMA Rating
    NEMA 6P
  • IP Rating
    IP67, IP69
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Delay at Power-up (ms)
    100
  • Special Feature: Water Detection
    No
  • Number of Pins
    4
  • Repeatability (µs)
    750
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    3
  • Special Feature: Remote Teach
    No
  • Max Op. Temp. (°C)
    70
  • Quick Disconnect Type
    M12 (Euro)
  • Operation
    Light Operate
  • Min Op. Temp. (°C)
    -40
  • Power Supply/Supply Voltage
    10-30 V dc
  • Outputs
    PNP
  • Connection
    Integral QD
  • Max Sensing Distance (mm)
    50
  • Input/Output
    Discrete
  • Housing Style
    Barrel
  • Primary Housing Material
    Thermoplastic
  • Sensing Mode (Detailed)
    Background Suppression (Fixed)
  • Power
    DC
  • Sensing Mode (General)
    Proximity
  • Sensing Beam
    Infrared LED
  • Sensing distance
    50mm
  • Mounting mode
    Threaded mount
  • Ambient air temperature for operation
    -40...+70 °C
  • Sub-range name
    T18 series
  • Functions
    Fixed-field photo-electric sensor green LED (power ON) amber LED (output state)
  • Wavelength
    880 nm
  • Connection type
    Pre-equipped with 4-pin Euro-style M12 connector
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Design
    background suppression system
  • Response time
    3ms / 0.003 s
  • Product series / family name
    EZ-BEAM series
  • Thread size
    M18
  • Degree of protection
    IP67 IP69K NEMA 6P
  • Main function
    Sensor (Photo-electric)
  • Light Color
    Infrared (IR)
  • Shape
    Cylindrical smooth
  • Operating mode
    Light-ON NO (Normally Open)
  • Digital outputs
    1 x digital output (PNP transistor)
  • Material
    thermoplastic housing Acrylic lns.
  • Compliant with standard(s)
    cULus CSA CE
  • Order code / Manufacturer SKU
    45163

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

T18S2P6FF50Q Description

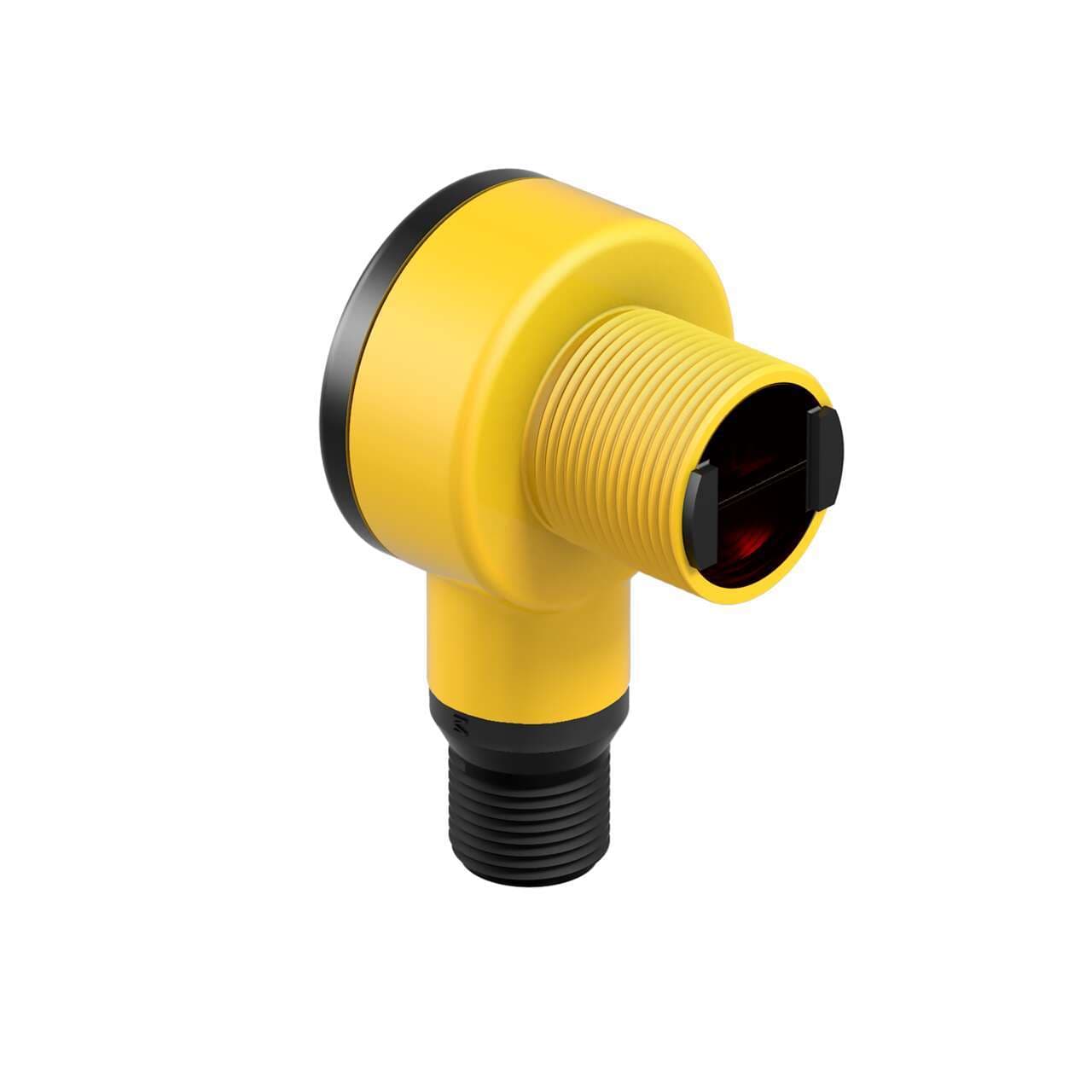

Banner Engineering T18S2P6FF50Q is a fixed-field photo-electric sensor within the T18 series, featuring a background suppression system. This sensor is housed in thermoplastic with an acrylic lens and comes pre-equipped with a 4-pin Euro-style M12 connector for connectivity. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. Designed for threaded mount installation, it can operate within an ambient air temperature range of -40 to +70°C. The T18S2P6FF50Q offers a degree of protection rated at IP67, IP69K, and NEMA 6P, ensuring durability in various environments. Its shape is an M18 cylindrical threaded/barrel, and it includes 1 x digital output (PNP transistor) for signaling. The sensing distance is specified at 50mm, utilizing infrared (IR) light with a wavelength of 880 nm and a response time of 3ms. The operating mode is Light-ON NO (Normally Open), with a thread size of M18.

Related documents T18S2P6FF50Q Specs

T18S2P6FF50Q 121526.pdf
