SME312FPWQD

Banner

Product Lifecycle: Active

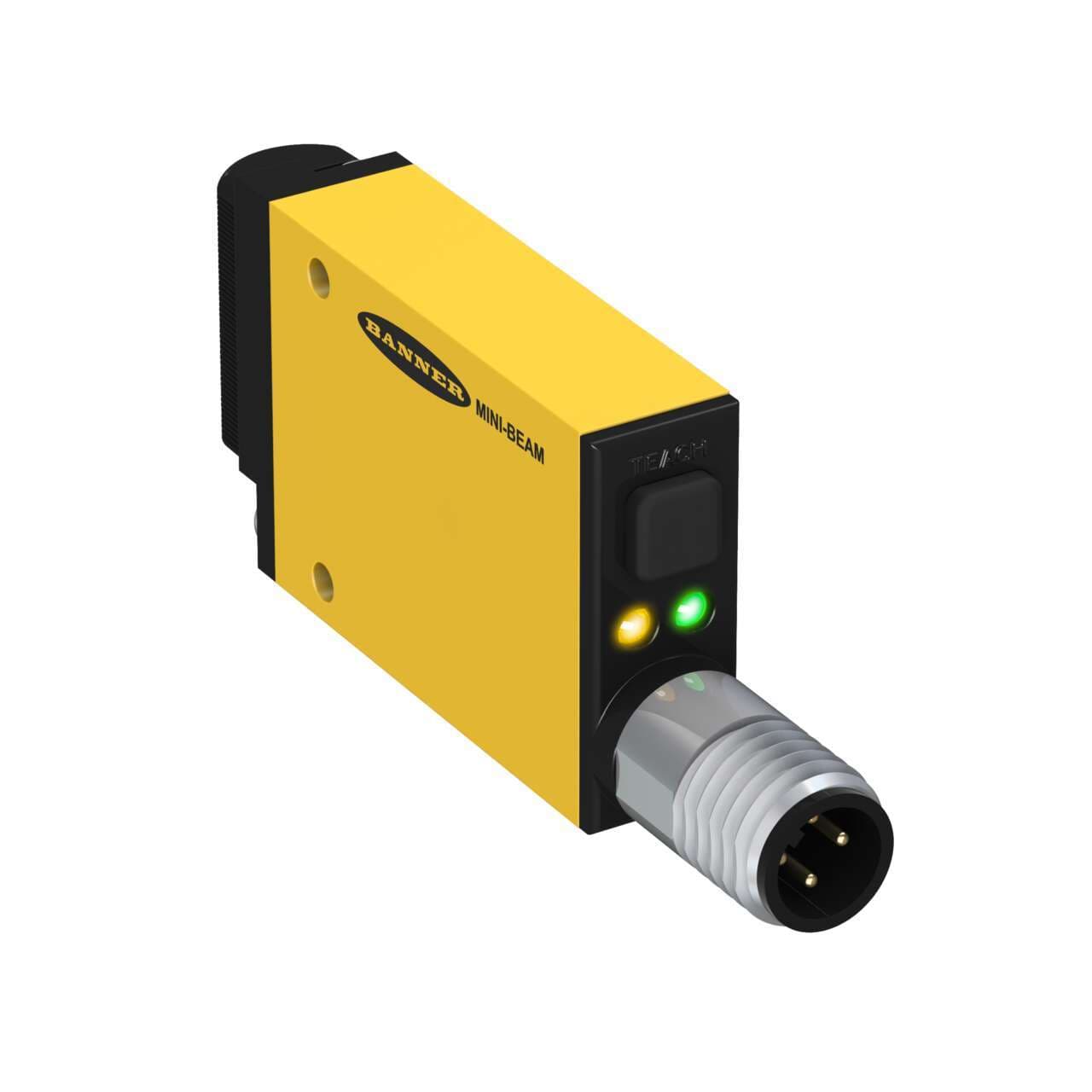

Banner Engineering SME312FPWQD is a photo-electric fiber optic sensor from the SME312 Expert series, designed with TEACH mode functionality. This sensor features a thermoplastic housing and plastic fiber optics, ensuring durability and compatibility with various applications. It comes pre-equipped with a 5-pin Euro-style M12 connector for straightforward installation. The SME312FPWQD operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc, and can function within an ambient air temperature range of -20 to +70°C. It boasts a high degree of protection, rated at IP67 and multiple NEMA ratings including 1, 2, 3, 3S, 4, 4X, 6, 12, and 13, making it suitable for a wide range of environmental conditions. The sensor's rectangular shape is designed for easy integration into various systems. It offers a single digital output (PNP/NPN transistor), operates with visible white light within a wavelength range of 450-650 nm, and features a rapid response time of 0.5ms. The operating modes include Light-ON and Dark-ON, providing versatility for different sensing applications.

SME312FPWQD

Banner Engineering SME312FPWQD is a photo-electric fiber optic sensor from the SME312 Expert series, designed with TEACH mode functionality. This sensor features a thermoplastic housing and plastic fiber optics, ensuring durability and compatibility with various applications. It comes pre-equipped with a 5-pin Euro-style M12 connector for straightforward installation. The SME312FPWQD operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc, and can function within an ambient air temperature range of -20 to +70°C. It boasts a high degree of protection, rated at IP67 and multiple NEMA ratings including 1, 2, 3, 3S, 4, 4X, 6, 12, and 13, making it suitable for a wide range of environmental conditions. The sensor's rectangular shape is designed for easy integration into various systems. It offers a single digital output (PNP/NPN transistor), operates with visible white light within a wavelength range of 450-650 nm, and features a rapid response time of 0.5ms. The operating modes include Light-ON and Dark-ON, providing versatility for different sensing applications.

  • Housing MaterialThermoplastic
  • IO LinkNo
  • Feature: AudibleNo
  • Feature: Hazardous AreaNo
  • Indicator Display TypeIndicator LEDs
  • Minimum response time (ms).5
  • Special Feature: Bussable PowerNo
  • Feature: Timing (Hold/Delay)No
  • Power Supply/Supply Voltage10-30 V dc
  • Delay at Power-up (ms)1000
  • AdjustmentsTeach Button
  • Intrinsically SafeNo
  • Special Feature: Remote TeachYes
  • Min Op. Temperature (°C)-20
  • Max Op. Temperature (°C)70
  • Max Op. Relative Humidity (%)90% @ 50°C
  • NEMA RatingNEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
  • IP RatingIP67
  • Number of Pins5
  • Repeatability (µs)100
  • Output Type (Specific)Single Discrete
  • Quick Disconnect TypeM12 (Euro)
  • OutputBipolar (NPN & PNP)
  • Input/OutputDiscrete
  • PowerDC
  • Housing StyleRectangular
  • Color LED - AmplifiersWhite
  • Primary Housing MaterialThermoplastic
  • ConnectionIntegral QD
  • Fiber TypePlastic and Glass
