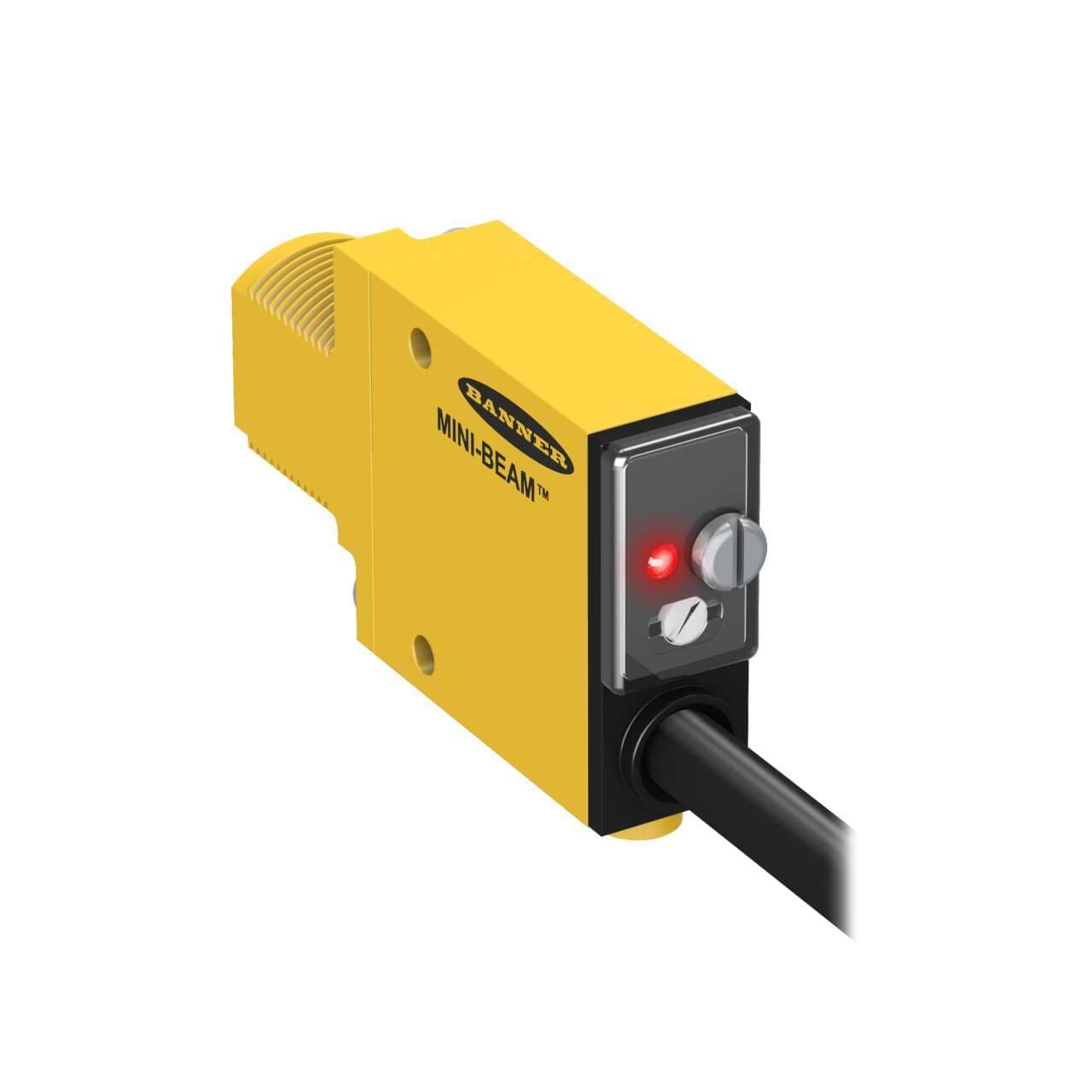

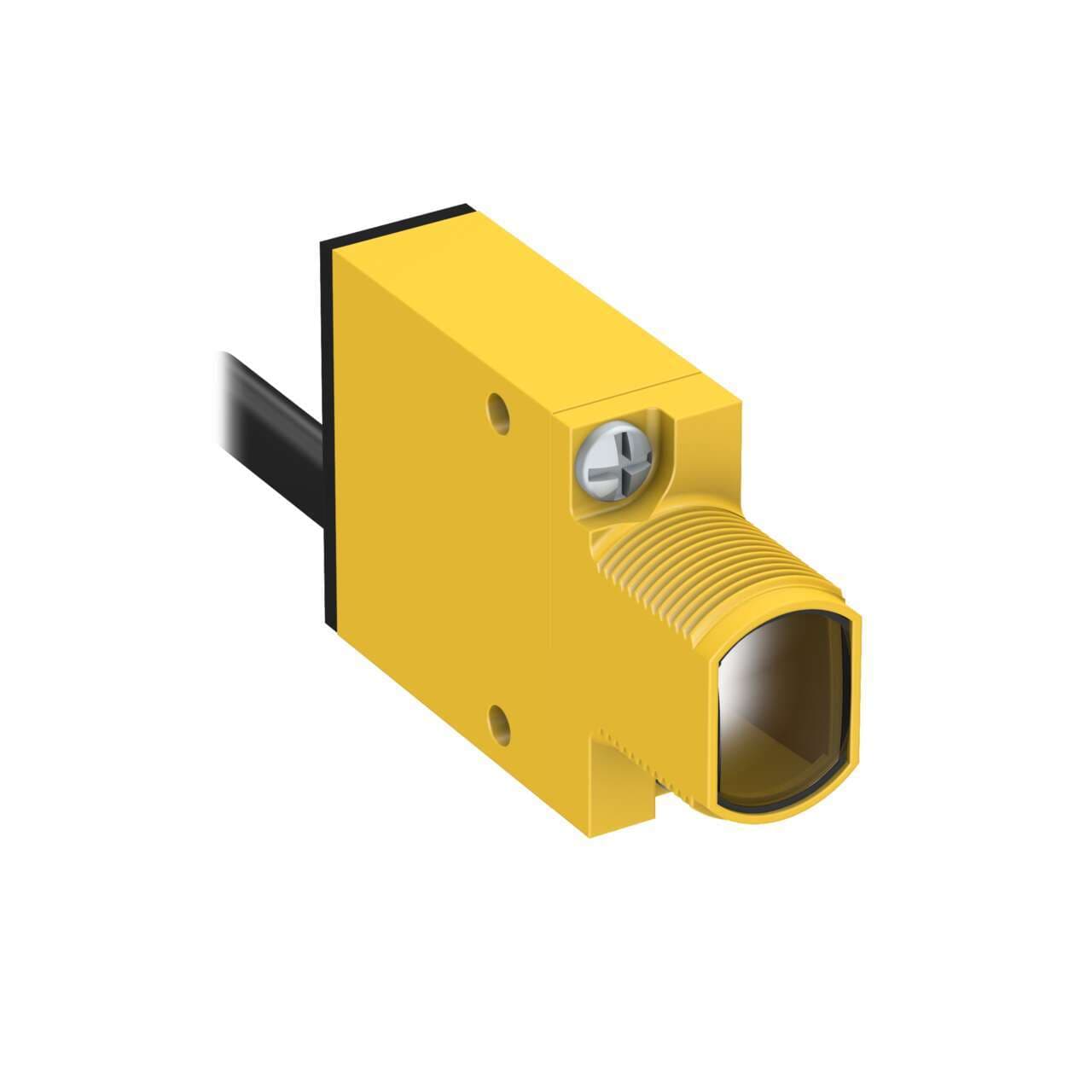

SM31RLE Banner Proximity Sensors
Part#:SM31RLE
Alt. Part#:37117
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
SM31RLE RECEIVER/EMITTER
Product Details
- Weight 329.761384 g
- Country Of Origin US
- Cable Length (m) 2
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Repeatability (µs) 140
- Indicator LEDs
- Input/Output Discrete
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Sensing Mode (Detailed) Emitter/Receiver Pair
- Quick Disconnect Type No QD
- Delay at Power-up (ms) 100
- Barrel Diameter (mm) 18
- IO Link No
- Max Sensing Distance (mm) 30000
- Operation Light/Dark Operate
- IP Rating IP67
- Feature: Hazardous Area No
- Sensing Beam Infrared LED
- Outputs Bipolar (NPN & PNP)
- Number of Pins 4
- Feature: Timing (Hold/Delay) No
- Primary Housing Material Thermoplastic
- Min Op. Temp. (°C) -20
- Special Feature: Water Detection No
- Adjustments Potentiometer
- Housing Style Rectangular w/M18 Mount
- Connection Cable
- Max Op. Temp. (°C) 70
- Lens Material Acrylic
- Feature: Audible No
- Power DC
- Sensing Mode (General) Opposed
- Output response time (ms) 1
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- DeviceNet No
- Opposed Mode Emitter/Receiver Pair
- Feature: Chemical Resistant No
- Feature: Encapsulated Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM31RLE on Powermatic Associates is $216.00. Order now.
About the product
Banner Engineering SM31RLE is a photo-electric sensor from the SM312 series, designed with a through-beam system and opposed mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc and 24Vdc as nominal values, and can be mounted using an M18 threaded mount. The SM31RLE is capable of functioning within an ambient air temperature range of -20 to +70°C and offers a degree of protection rated at IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, and 12. It has a rectangular shape, includes 1 x digital output (PNP/NPN transistor), and provides a sensing distance of up to 30m. The sensor emits infrared (IR) light, has a response time of 1ms / 0.001 s, and supports both Light-ON and Dark-ON operating modes.
Similar products from: Banner Proximity Sensors
Manufacturer warranty
SM31RLE Banner
$216.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$216.00
$216.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare SM31RLE with other Proximity Sensors products
Weight
Country Of Origin
Cable Length (m)
Power Supply/Supply Volta...
Special Feature: Remote T...
Repeatability (µs)
Indicator
Input/Output
Special Feature: Intrinsi...
Max Op. Relative Humidity...
Selected product
Weight329.761384 g
Country Of OriginUS
Cable Length (m)2
Power Supply/Supply Voltage10-30 V dc
Special Feature: Remote TeachNo
Repeatability (µs)140
IndicatorLEDs
Input/OutputDiscrete
Special Feature: Intrinsically SafeNo
Max Op. Relative Humidity [%]90% @ 50°C
SB12TANR
Banner
SB12 Threaded Series Receiver; Range: 1.5 m; Input Voltage: 10-30 V dc; Outputs: L.O. NPN; 2 m (6.5 ...
Weight45.3592 g
Country Of OriginCN
Cable Length (m)2
Power Supply/Supply Voltage10-30 V dc
Special Feature: Remote Teach-
Repeatability (µs)-
Indicator-
Input/OutputDiscrete
Special Feature: Intrinsically Safe-
Max Op. Relative Humidity [%]-

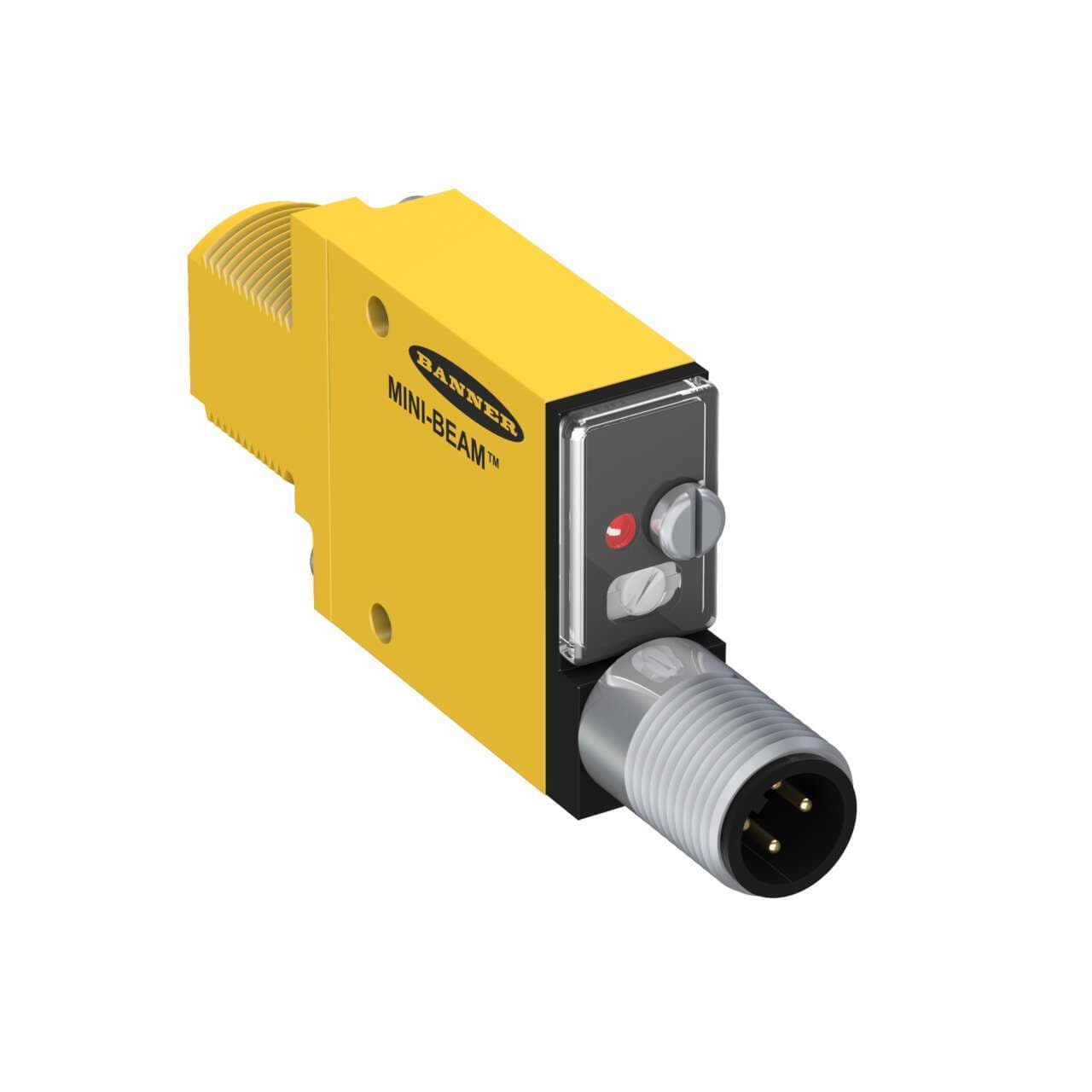

SM31RL100QDP
Banner
SM31RL100QD MINIBEAM SCANNER W/.100 APERTURE INSTALLED, 150 mm (6 in) 4-pin M12 Pigtail QD
Weight68.0388 g
Country Of OriginUS
Cable Length (m)-
Power Supply/Supply Voltage10-30 V dc
Special Feature: Remote Teach-
Repeatability (µs)-
Indicator-
Input/OutputDiscrete
Special Feature: Intrinsically Safe-
Max Op. Relative Humidity [%]-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of SM31RLE?
Purchase the SM31RLE from Powermatic Associates at the price of $216.00. Order today.
Out if stock but available for backorder.
SM31RLE RECEIVER/EMITTER
