SM312CVBQD Banner Proximity Sensors

SM312CVBQD on Powermatic Associates
Banner
  • SM312CVBQD
  • SM312CVBQD

Part#:SM312CVBQD

Alt. Part#:47277

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

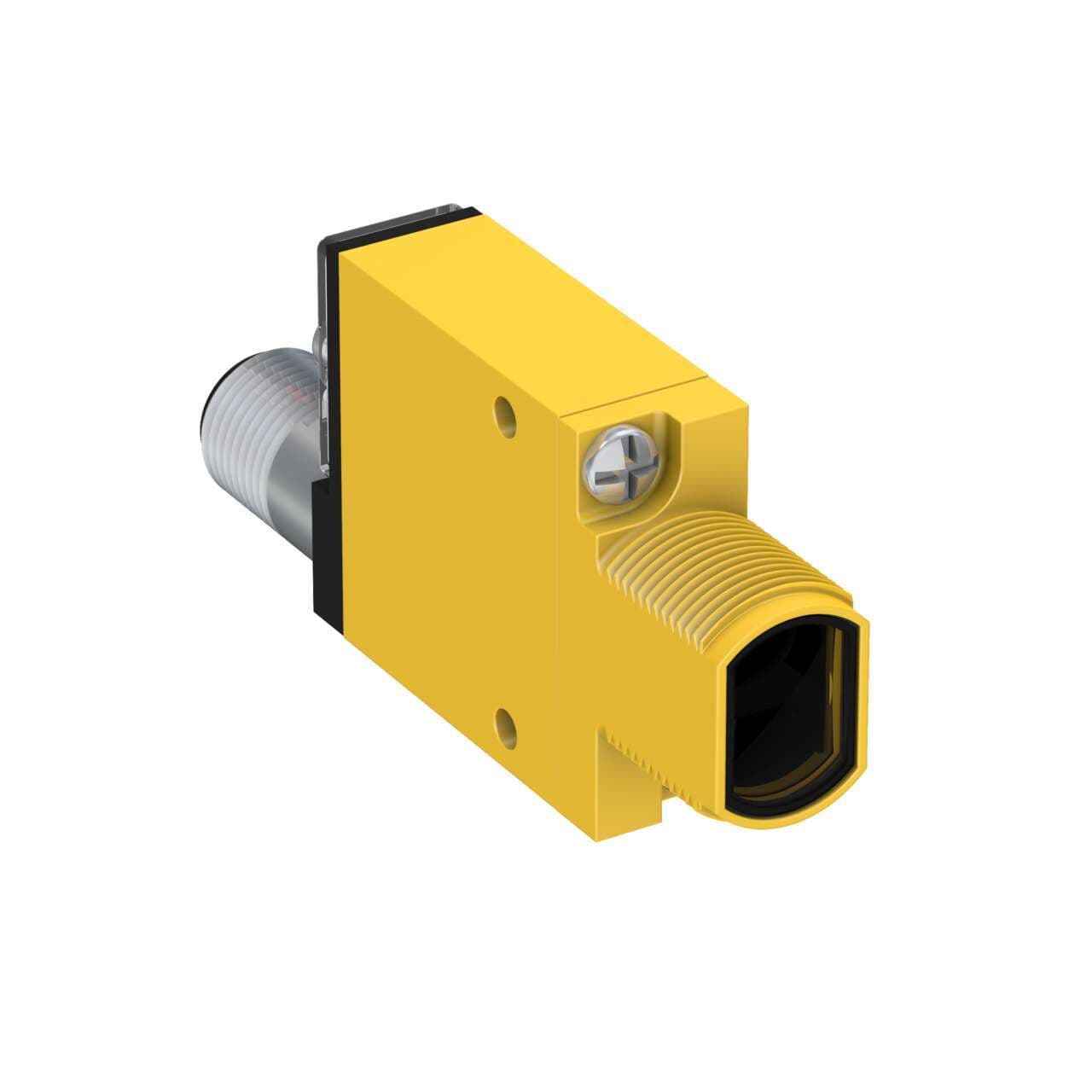

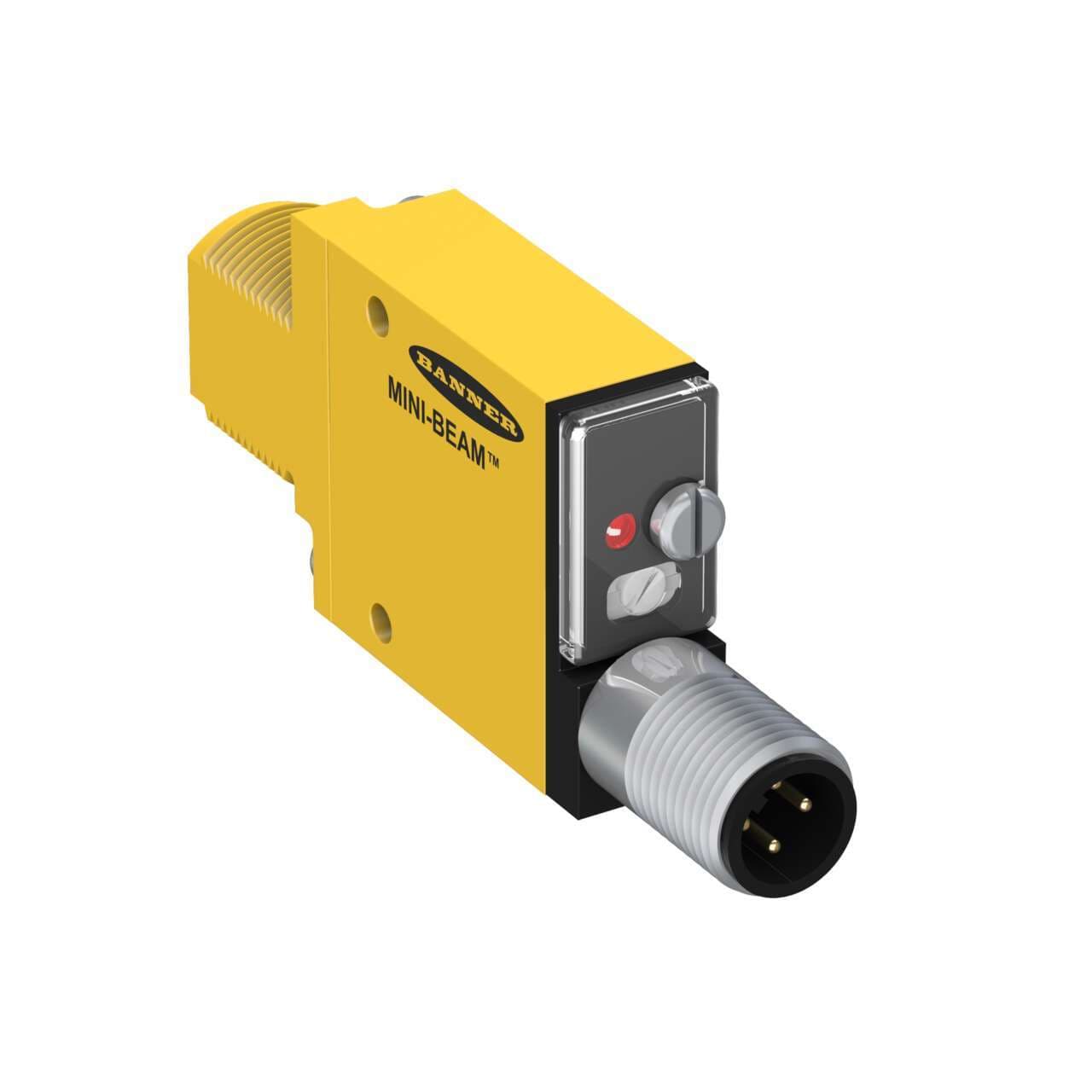

MINI-BEAM: Visible Blue 475 nm Convergent; Focal Point: 16 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin M12 Integral QD

Product Details

  • Weight
    63.50288 g
  • Country Of Origin
    US
  • Input/Output
    Discrete
  • Operation
    Light/Dark Operate
  • IP Rating
    IP67
  • Feature: Encapsulated
    Yes
  • Power Supply/Supply Voltage
    10-30 V dc
  • Power
    DC
  • Special Feature: Remote Teach
    No
  • Adjustments
    Potentiometer
  • DeviceNet
    No
  • Sensing Mode (Detailed)
    Convergent
  • Connection
    Integral QD
  • Special Feature: Water Detection
    No
  • Indicator
    LEDs
  • IO Link
    No
  • Sensing Mode (General)
    Proximity
  • Min Op. Temp. (°C)
    -20
  • Number of Pins
    4
  • Feature: Timing (Hold/Delay)
    No
  • Sensing Beam
    Visible Blue LED
  • Delay at Power-up (ms)
    100
  • Barrel Diameter (mm)
    18
  • Outputs
    Bipolar (NPN & PNP)
  • Output response time (ms)
    1
  • NEMA Rating
    NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
  • Feature: Audible
    No
  • Housing Style
    Rectangular w/M18 Mount
  • Quick Disconnect Type
    M12 (Euro)
  • Repeatability (µs)
    300
  • Opposed Mode Emitter/Receiver
    N/A
  • Lens Material
    Acrylic
  • Feature: Chemical Resistant
    No
  • Primary Housing Material
    Thermoplastic
  • Max Op. Temp. (°C)
    70
  • Special Feature: Intrinsically Safe
    No
  • Feature: Hazardous Area
    No
  • Max Sensing Distance (mm)
    16
  • Max Op. Relative Humidity [%]
    90% @ 50°C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM312CVBQD on Powermatic Associates is $227.00. Order now.

About the product

Banner Engineering SM312CVBQD is a photo-electric sensor from the SM312 series designed with a convergent mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-equipped with a 4-pin Euro-style M12 connector for connectivity. It operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc, and can be mounted using an M18 threaded mount. The ambient air temperature range for operation is between -20 and +70°C. It offers a high degree of protection with ratings of IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, and NEMA 12. The sensor has a rectangular shape and includes 1 x digital output (PNP/NPN transistor), with a sensing distance of 16mm. It emits visible blue light and has a response time of 1ms / 0.001 s, supporting both Light-ON and Dark-ON operating modes.

SM312CVBQD Related Documents

52980.pdf
