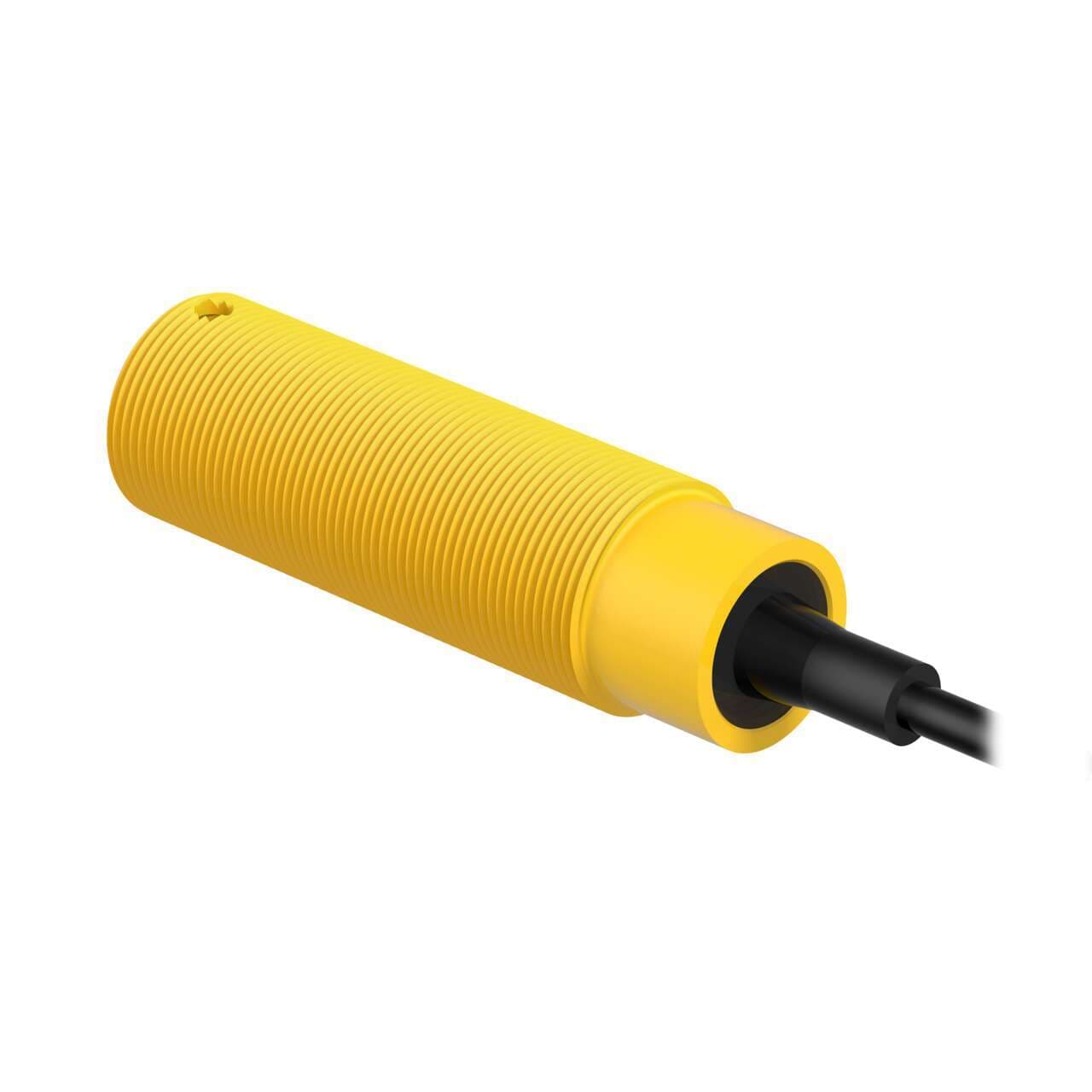

SM303E W/30 Banner Proximity Sensors
Part#:SM303E W/30
Alt. Part#:34167
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM SM30 Series: Emitter; Range: 60 m; Input: 20-250 V ac; Output: Not Applicable; 9 m (30 ft) Cable
Product Details
- Weight 616.88512 g
- Country Of Origin MX
- IO Link No
- DeviceNet No
- Feature: Audible No
- Feature: Timing (Hold/Delay) No
- Feature: Hazardous Area No
- Feature: Encapsulated Yes
- Feature: Chemical Resistant No
- Adjustments N/A
- Barrel Diameter (mm) 30
- Opposed Mode Emitter/Receiver Emitter
- Indicator LEDs
- Lens Material Acrylic
- Special Feature: Water Detection No
- Delay at Power-up (ms) 100
- Max Op. Relative Humidity [%] 90% @ 50°C
- IP Rating IP67
- NEMA Rating NEMA 6P
- Repeatability (µs) 2000
- Number of Pins 2
- Special Feature: Intrinsically Safe No
- Special Feature: Remote Teach No
- Max Op. Temp. (°C) 70
- Min Op. Temp. (°C) -40
- Quick Disconnect Type No QD
- Operation N/A
- Connection Cable
- Power Supply/Supply Voltage 20-250 V ac
- Output response time (ms) N/A
- Max Sensing Distance (mm) 60000
- Sensing Mode (General) Opposed
- Housing Style Barrel
- Cable Length (m) 9
- Primary Housing Material Thermoplastic
- Outputs N/A
- Sensing Beam Infrared LED
- Power AC
- Sensing Mode (Detailed) Emitter
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM303E W/30 on Powermatic Associates is $184.00. Order now.
About the product
Banner Engineering SM303E W/30 is a photo-electric sensor designed for through-beam system applications, part of the SM30 series. This sensor functions as an emitter alone, housed in a thermoplastic body with an acrylic lens. It features a pre-wired connection with a 30ft / 9m cable terminated with bare end flying leads. The sensor operates on a supply voltage range of 20Vac-250Vac, with nominal voltages of 200Vac, 220Vac, and 240Vac. It is designed to work within an ambient air temperature range of -40 to +70°C. The SM303E W/30 offers a degree of protection rated at IP67 and NEMA 6P, ensuring its durability in various environmental conditions. Its M30 cylindrical threaded/barrel shape allows for straightforward installation. The sensor boasts a sensing distance of 60m and utilizes infrared light with a wavelength of 880 nm for detection, ensuring precise operation. The thread size for this unit is M30.
