SM2A31R W/30 Banner Proximity Sensors

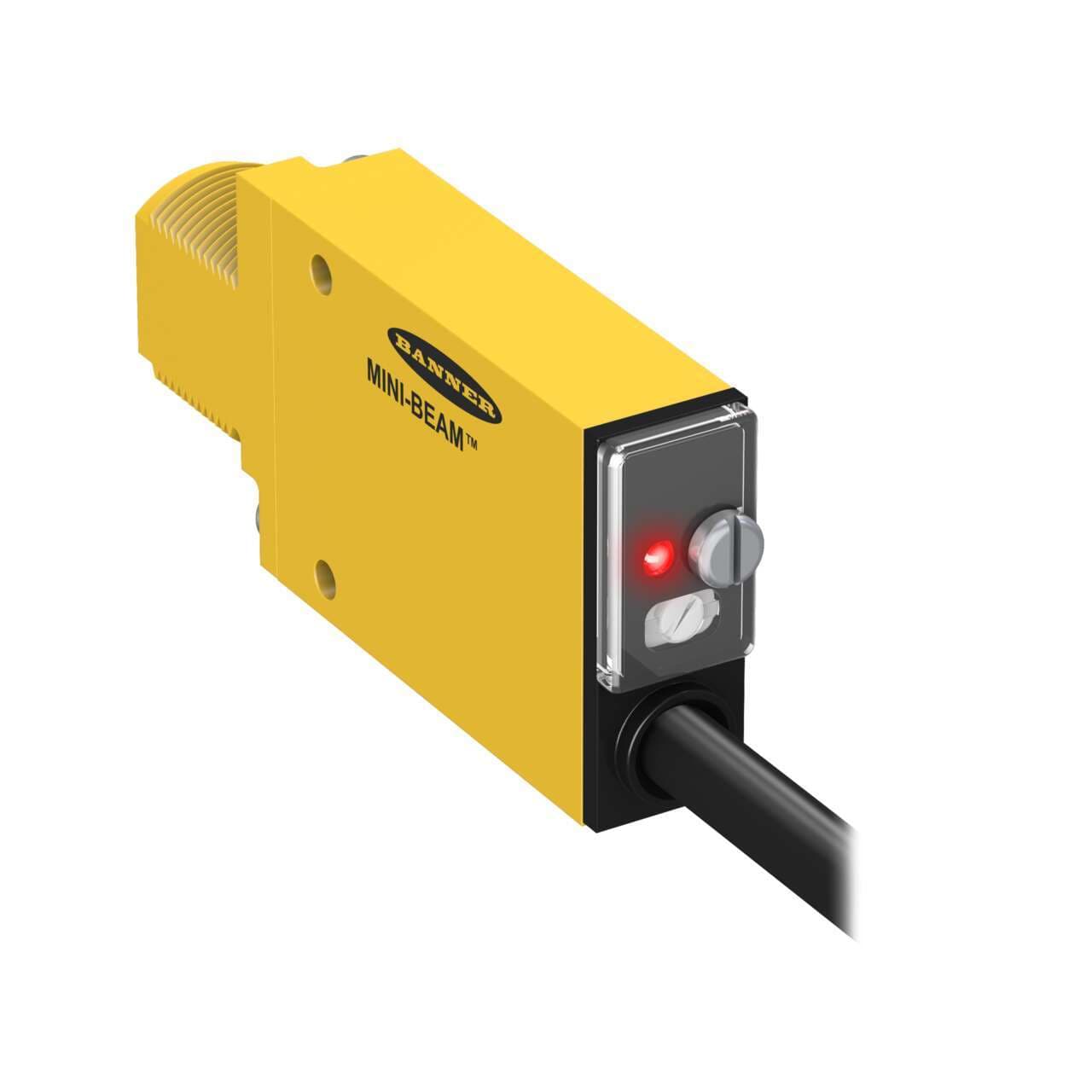

Banner SM2A31R W/30 MINI-BEAM: Receiver; Range: 3 m; Input: 24-240 V ac; Output: SPST Solid-state 2-Wire; 9 m (30 ft) Cable
Banner

Part#:SM2A31R W/30

Manufacturer:Banner

Alt. Part#:26857

Product Lifecycle:Active

Get a quick Quote!

MINI-BEAM: Receiver; Range: 3 m; Input: 24-240 V ac; Output: SPST Solid-state 2-Wire; 9 m (30 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SM2A31R W/30 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    577.422616 g
  • Country Of Origin
    US
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    Yes
  • Opposed Mode Emitter/Receiver
    Receiver
  • Indicator
    LEDs
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Adjustments
    Potentiometer
  • Lens Material
    Acrylic
  • Number of Pins
    2
  • Delay at Power-up (ms)
    300
  • Barrel Diameter (mm)
    18
  • Special Feature: Water Detection
    No
  • Repeatability (µs)
    300
  • IP Rating
    IP67
  • NEMA Rating
    NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
  • Special Feature: Remote Teach
    No
  • Output response time (ms)
    2 ON/1 OFF
  • Min Op. Temp. (°C)
    -20
  • Max Op. Temp. (°C)
    70
  • Operation
    Light/Dark Operate
  • Special Feature: Intrinsically Safe
    No
  • Quick Disconnect Type
    No QD
  • Connection
    Cable
  • Power Supply/Supply Voltage
    24-240 V ac
  • Outputs
    Solid-State AC Switch
  • Power
    AC
  • Sensing Mode (General)
    Opposed
  • Sensing Beam
    Infrared LED
  • Cable Length (m)
    9
  • Input/Output
    Solid-State AC Switch
  • Primary Housing Material
    Thermoplastic
  • Housing Style
    Rectangular w/M18 Mount
  • Max Sensing Distance (mm)
    3000
  • Sensing Mode (Detailed)
    Receiver

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SM2A31R W/30 Description

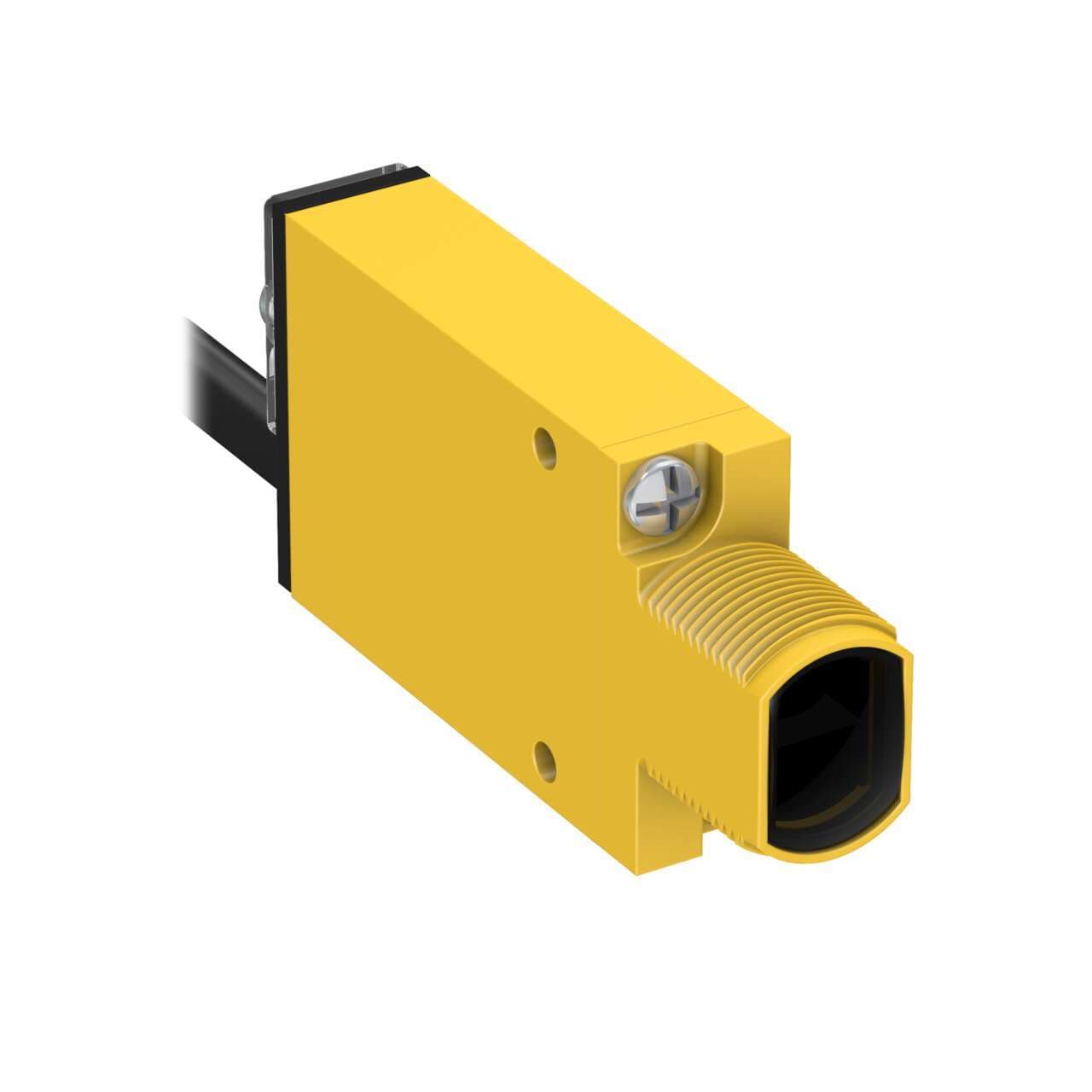

Banner Engineering SM2A31R W/30 is a photo-electric sensor from the SM2A312 series designed with a through-beam system and opposed mode potentiometer adjustment. This sensor, functioning as the receiver alone, is housed in thermoplastic with an acrylic lens. It features a pre-wired 30ft / 9m cable with bare end flying leads for connection. The sensor operates on a supply voltage of 24Vac-240Vac (200Vac / 220Vac nom.) and is mounted using an M18 threaded mount. It is designed to operate within an ambient air temperature range of -20 to +70°C and offers a degree of protection rated at IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, and 13. The rectangular-shaped sensor provides 1 x digital output (Solid-state AC output; SPST contact type), has a sensing distance of 3m, utilizes infrared (IR) light with a wavelength of 880 nm, and has a response time of 2ms / 0.002 s.

Related documents SM2A31R W/30 Specs

SM2A31R W/30 69942.pdf
