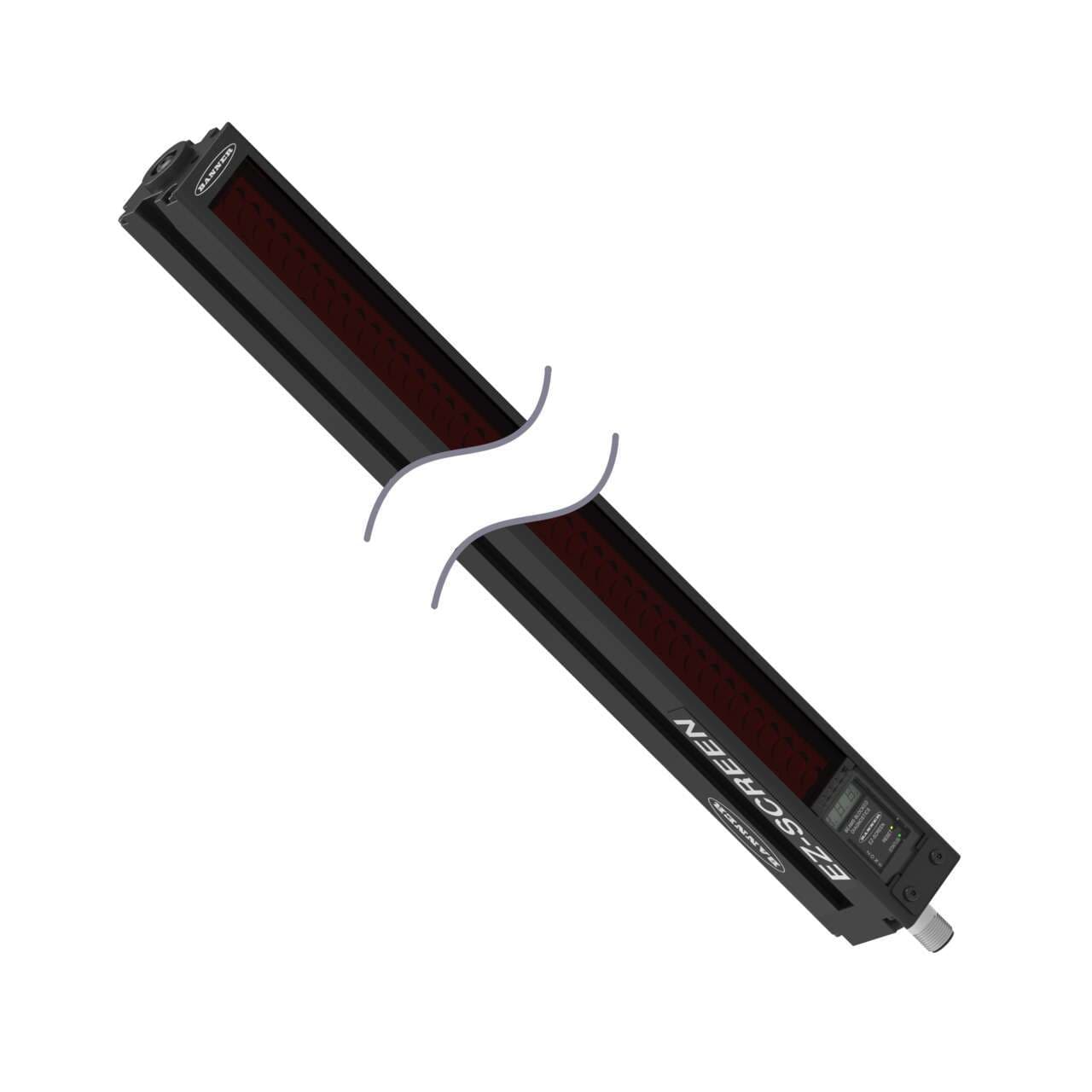

SLSCR30-1500Q8 Banner Safety Light Curtains
Part#:SLSCR30-1500Q8
Alt. Part#:72432
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN Cascade Receiver; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1500 mm (59.1 in); Housing Length: 1569 mm (61.8 in); Connection: 8-pin M12 Connector
Product Details
- Weight 4989.512 g
- Country Of Origin MX
- Feature: Integral Muting No
- Feature: End-to-End Sensing No
- Housing Material Aluminum; Zinc; Acrylic
- Feature: ESD Safe No
- Feature: Cascade Yes
- Test Input No
- Trip/Latch Output Selectable
- Supply Current 275 mA max.
- Vibration 10-55 Hz at 0.35 mm
- OSSD Rating 24 V dc at 0.5 A each
- Fault Output No
- Auxiliary Output Yes
- System Type Receiver
- Short Protection Yes
- Shock 10g at 16ms (6000 cycles)
- Scan Code Selectable
- Resolution (mm) 30
- Electrical Safety Class III
- Reduced Resolution Yes
- SIL Rating SIL3; CL3
- Response Time 27
- Number of Pins (Receiver/Emitter) 8
- Recovery Time 25-152 / 81-495
- Housing Finish Yellow Polyester
- PL Rating Ple
- Fixed Blanking Yes
- Operating Distance (m) 0.1 - 18
- Operating Temperature 0 to +55 deg. C; RH 95%
- Operating Voltage 24 V dc +/- 15%
- IP Rating IP65
- Defined Area Height (mm) 1500
- Connector Type M12
- Dimensions WxD (mm) 36 x 45.2
- External Monitoring Device 1 or 2 Channel
- Overall Length (mm) 1569
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Primary Housing Material Aluminum
- Safety Level Type 4
- low-profile No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSCR30-1500Q8 on Powermatic Associates is $2,880.00. Order now.
About the product
Banner Engineering SLSCR30-1500Q8 is a safety light curtain designed for hand detection with a resolution of 30mm and a protective height of 1500mm. Part of the SLS series, this cascadable design features an aluminium housing with an acrylic lens and die-cast zinc end caps, ensuring durability. It is equipped with an 8-pin Euro-style M12 connector for easy connection. The unit operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. With an IP65 degree of protection, it is suited for various industrial environments. The SLSCR30-1500Q8 offers two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one auxiliary digital output (24Vdc; sourcing/PNP transistor; 75mA), alongside two digital inputs (10Vdc-30Vdc) for EDM and RESET functions. It has a sensing distance ranging from 10cm to 18m and a quick response time of 27ms. The dimensions are 36mm in width, 1569mm in height, and 46mm in depth, with a yellow housing color and 30mm beam spacing/pitch.
