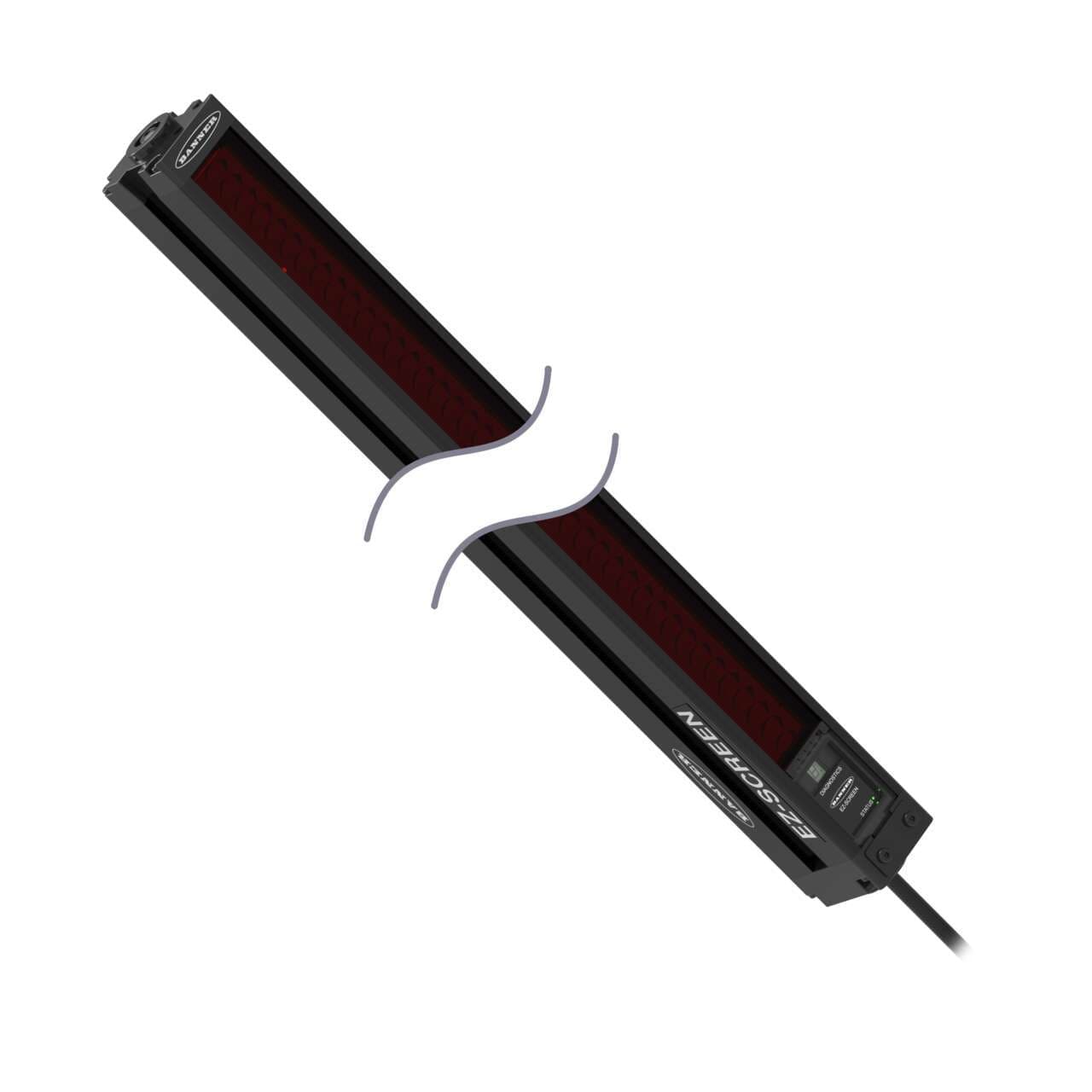

SLSCE14-450P8 Banner Safety Light Curtains

SLSCE14-450P8 on Powermatic Associates
Banner
  • SLSCE14-450P8
  • SLSCE14-450P8

Part#:SLSCE14-450P8

Alt. Part#:73905

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

EZ-SCREEN Cascade Emitter; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 450 mm (17.7 in); Housing Length: 522 mm (20.6 in); Connection: 8-pin M12 Pigtail Connector; No test Input

Product Details

  • Weight
    290.29888 g
  • Country Of Origin
    MX
  • Feature: ESD Safe
    No
  • Trip/Latch Output
    N/A
  • Feature: End-to-End Sensing
    No
  • Feature: Cascade
    Yes
  • OSSD Rating
    N/A
  • Test Input
    No
  • Supply Current
    100 mA max.
  • System Type
    Emitter
  • Auxiliary Output
    No
  • Vibration
    10-55 Hz at 0.35 mm
  • Response Time
    19
  • Short Protection
    Yes
  • Resolution (mm)
    14
  • Scan Code
    Selectable
  • SIL Rating
    SIL3; CL3
  • Recovery Time
    33-220 / 109-800
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • PL Rating
    Ple
  • Fixed Blanking
    No
  • Housing Finish
    Yellow Polyester
  • Operating Voltage
    24 V dc +/- 15%
  • Safety Level
    Type 4
  • Primary Housing Material
    Aluminum
  • Dimensions WxD (mm)
    36 x 45.2
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Connector Type
    M12 Pigtail (Yellow)
  • low-profile
    No
  • Feature: Integral Muting
    No
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Fault Output
    No
  • Shock
    10g at 16ms (6000 cycles)
  • Electrical Safety Class
    III
  • Reduced Resolution
    No
  • Operating Distance (m)
    0.1 - 6
  • Number of Pins (Receiver/Emitter)
    8
  • IP Rating
    IP65
  • Defined Area Height (mm)
    450
  • Overall Length (mm)
    522
  • External Monitoring Device
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSCE14-450P8 on Powermatic Associates is $1,108.00. Order now.

About the product

Banner Engineering SLSCE14-450P8 is a safety light curtain from the SLS series 14-30mm safety light curtains, designed for finger detection with a resolution of 14mm. This cascadable unit features an aluminium housing with an acrylic lens and die-cast zinc end caps. It is pre-wired with a 300mm pigtail that terminates with an 8-pin Euro-style M12 connector. The protective height of the device is 450mm, and it comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The SLSCE14-450P8 offers a degree of protection rated at IP65 and has dimensions of 36mm in width, 522mm in height, and 46mm in depth. The light curtain features a 14mm beam spacing/pitch and provides two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) with a sensing distance ranging from 10cm to 6m. It emits infrared (IR) light with a wavelength of 850 nm and has a response time of 19ms / 0.019 s.
