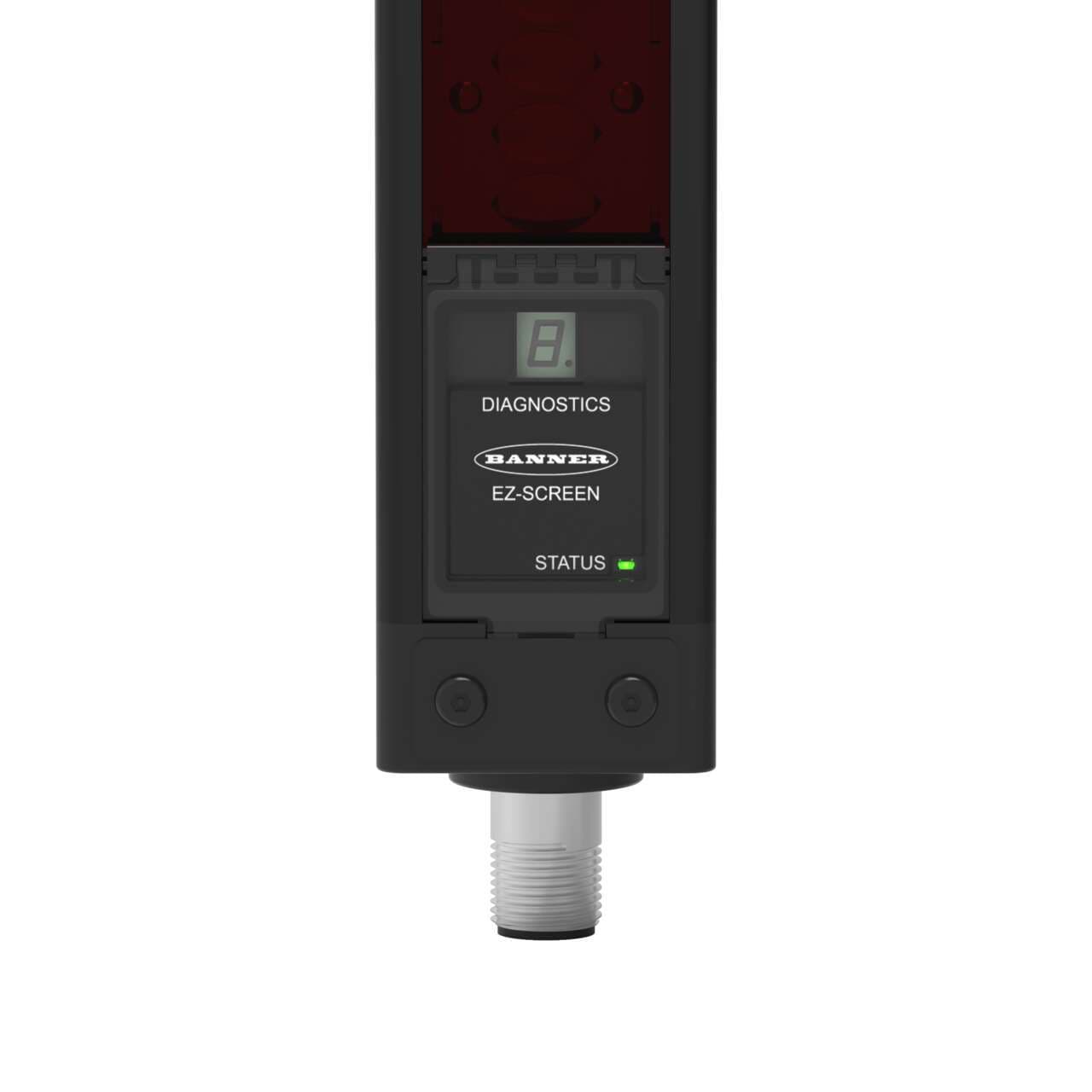

SLSCE14-1650Q8 Banner Safety Light Curtains
Part#:SLSCE14-1650Q8
Manufacturer:Banner
Alt. Part#:73377
Product Lifecycle:Active
Get a quick Quote!
EZ-SCREEN Cascade Emitter; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 1650 mm (65.0 in); Housing Length: 1719 mm (67.7 in); Connection: 8-pin M12 Connector; No test Input
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLSCE14-1650Q8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 5397.7448 g
- Country Of Origin MX
- Feature: Integral Muting No
- Feature: ESD Safe No
- Feature: End-to-End Sensing No
- Feature: Cascade Yes
- Test Input No
- Trip/Latch Output N/A
- Supply Current 100 mA max.
- OSSD Rating N/A
- Fault Output No
- Shock 10g at 16ms (6000 cycles)
- Housing Material Aluminum; Zinc; Acrylic
- Auxiliary Output No
- Vibration 10-55 Hz at 0.35 mm
- System Type Emitter
- Short Protection Yes
- Scan Code Selectable
- Electrical Safety Class III
- Response Time 52
- SIL Rating SIL3; CL3
- Reduced Resolution No
- Resolution (mm) 14
- Recovery Time 33-220 / 109-800
- Number of Pins (Receiver/Emitter) 8
- Operating Temperature 0 to +55 deg. C; RH 95%
- PL Rating Ple
- Operating Voltage 24 V dc +/- 15%
- IP Rating IP65
- Operating Distance (m) 0.1 - 6
- Overall Length (mm) 1719
- Housing Finish Yellow Polyester
- Fixed Blanking No
- External Monitoring Device No
- Primary Housing Material Aluminum
- Defined Area Height (mm) 1650
- Dimensions WxD (mm) 36 x 45.2
- Connector Type M12
- Effective Aperture Angle Type 4 Per IEC 61496-2
- low-profile No
- Safety Level Type 4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
SLSCE14-1650Q8 Description
Banner Engineering SLSCE14-1650Q8 is a safety light curtain from the SLS series 14-30mm safety light curtains, designed with a cascadable feature. This part functions as a safety light curtain emitter alone, constructed with an aluminium housing, acrylic lens, and die-cast zinc end cap. It is pre-equipped with an 8-pin Euro-style M12 connector for connectivity. The protective height is 1650mm, and it comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The degree of protection offered is IP65. The dimensions include a net width of 36 mm, a net height of 1719 mm, and a net depth of 46 mm. The light curtain features a 14mm beam spacing/pitch, 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), and a sensing distance ranging from 10cm to 6m. The light color is infrared (IR) with a response time of 52ms / 0.052 s, and a wavelength of 850 nm. The resolution is set at 14mm for finger detection.
Related documents SLSCE14-1650Q8 Specs
Manufacturer warranty
$2,773.00
