S306E W/50 Banner Proximity Sensors

S306E W/50 on Powermatic Associates
Banner
  • S306E W/50
  • S306E W/50

Part#:S306E W/50

Alt. Part#:11505

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

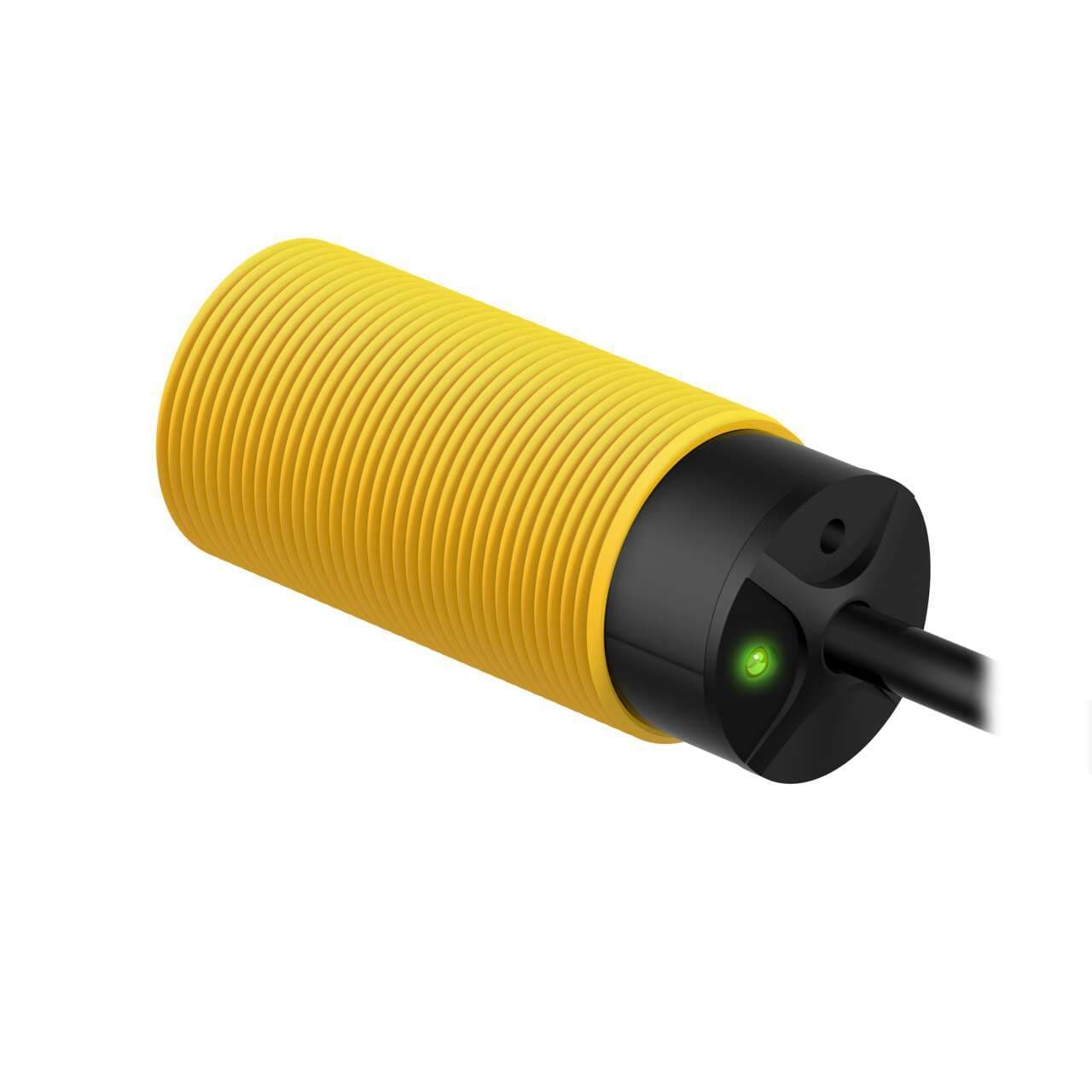

EZ-BEAM S30 Series: Emitter; Range: 60 m; Input: 10-30 V dc; Output: Not Applicable; 15.2 m (50 ft) Cable

Product Details

  • Weight
    453.592 g
  • Country Of Origin
    US
  • Barrel Diameter (mm)
    30
  • Lens Material
    Acrylic
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Encapsulated
    No
  • Opposed Mode Emitter/Receiver
    Emitter
  • Feature: Chemical Resistant
    No
  • Feature: Health/ Marginal Signal Output
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Ecolab Certified
    Yes
  • Indicator
    LEDs
  • Repeatability (µs)
    375
  • Adjustments
    N/A
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • NEMA Rating
    NEMA 6P
  • IP Rating
    IP67
  • Delay at Power-up (ms)
    100
  • Number of Pins
    2
  • Special Feature: Water Detection
    No
  • Max Op. Temp. (°C)
    70
  • Min Op. Temp. (°C)
    -40
  • Connection
    Other
  • Quick Disconnect Type
    No QD
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    N/A
  • Operation
    N/A
  • Outputs
    N/A
  • Sensing Beam
    Infrared LED
  • Sensing Mode (General)
    Opposed
  • Power Supply/Supply Voltage
    10-30 V dc
  • Housing Style
    Barrel
  • Primary Housing Material
    Thermoplastic
  • Sensing Mode (Detailed)
    Emitter
  • Max Sensing Distance (mm)
    60000
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S306E W/50 on Powermatic Associates is $160.00. Order now.

About the product

Range: 60 m; Input: 10-30V dc

S306E W/50 Related Documents

116157.pdf
