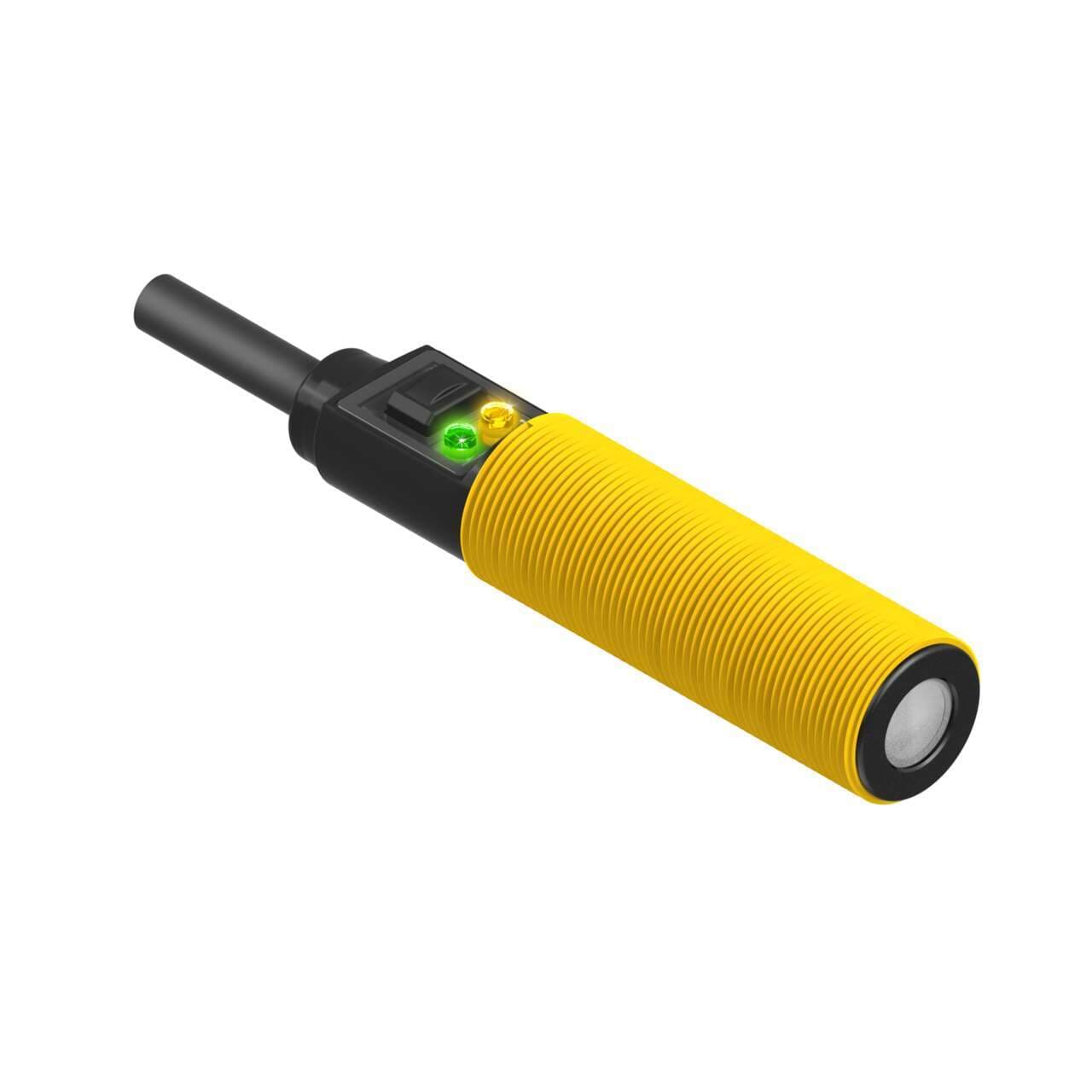

S18UBAQPMA Banner Ultrasonic Sensors

Product Details

• Weight
  108.86208 g
• Country Of Origin
  CN
• 1-wire Serial Interface
  No
• Wireless
  No
• SSI
  No
• IO Link
  No
• PROFINET
  No
• RS-485
  No
• RS-232
  No
• RS-422
  No
• Feature: Remote Teach
  Yes
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Power/Current Consumption (exclusive of load)
  65 mA max; 40 mA @ 25 V dc
• Max Off-state Leakage Current (µA)
  5
• Discrete Output Hysteresis (mm)
  0.7
• Minimum Window Size (mm)
  5
• Storage Temperature (°C)
  -40 to 80
• Warm-up Time (minutes)
  10
• Vibration
  MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
• Profibus
  No
Application: Ultrasonic
Yes
Common Ethernet Protocol
No
Feature: Chemical Resistant
No
Feature: Timing (Hold/Delay)
No
Feature: Clear Object Detection
Yes
Ultrasonic Frequency (kHz)
300
Remote Teach and Laser Control Input Impedence
12 kΩ
Rep Rate (ms)
2.5
Barrel Diameter (mm)
18
Minimum Response Time (ms)
5
Max Op. Relative Humidity Non-Condensing (%)
100
Max Operating Temperature (°C)
60
Min Operating Temperature (°C)
-20
Max Discrete (Switched) Output (mA)
100
NEMA Rating
NEMA 6P
IP Rating
IP67
Output Protection
Protected against short circuit conditions
Discrete (Switched) Outputs
Bipolar (NPN & PNP)
Number of Pins
5
Temperature Effect (mm/°C)
0.02% of sensing distance/°C
Output Saturation Voltage NPN Outputs
< 0.2 V at 10 mA; < 0.6 V at 100 mA
Output Saturation Voltage PNP Outputs
< 1.2 V at 10 mA; < 1.6 V at 100 mA
Max Sensing Distance (mm)
300
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Adjustments
Push Button; Remote Teach
Delay at Power-up (ms)
300
Minimum Sensing Distance (mm)
30
Quick Disconnect Type
M12 (Euro)
Power Supply
10-30 V dc
Primary Housing Material
ABS/Polycarbonate
Analog Resolution/Discrete Repeatability
0.5
Indicator
LED(s)
Input/Output
Discrete
Cable Length (m)
0.15
Connection
Pigtail QD
Power
DC
Sensing Beam
Ultrasonic
Housing Style
Barrel - Straight
Sensing Mode (Detailed)
Time of Flight
Device Type
Sensor
Sensing Mode (General)
Proximity
PC Configurable
No
Max Measurement Range
>100 mm - <=500 mm
