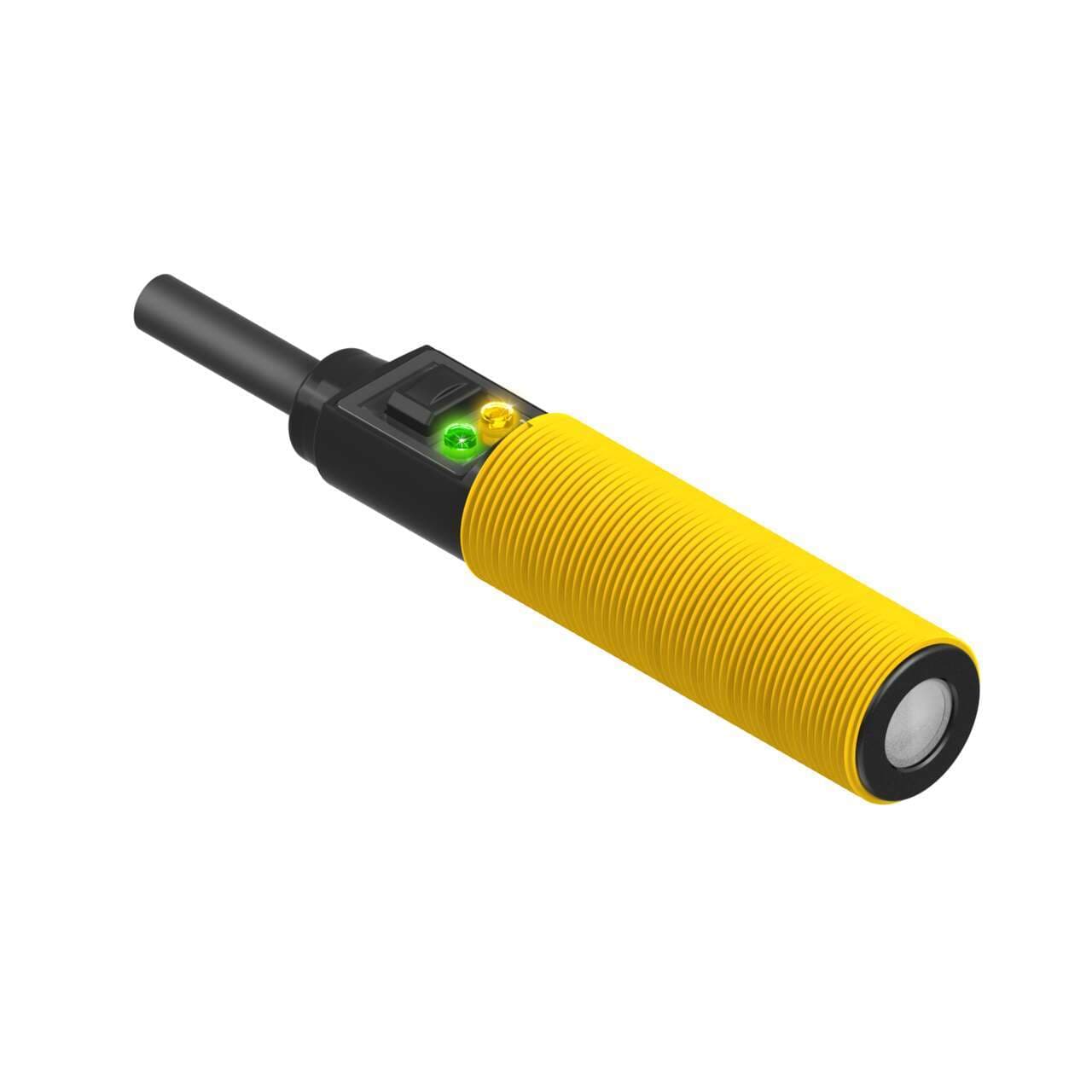

S18UUA Banner Ultrasonic Sensors

Product Details

• Weight
  181.4368 g
• Country Of Origin
  CN
• Wireless
  No
• Feature: Chemical Resistant
  No
• Profibus
  No
• 1-wire Serial Interface
  No
• SSI
  No
• RS-485
  No
• RS-232
  No
• RS-422
  No
• PROFINET
  No
• IO Link
  No
• Common Ethernet Protocol
  No
• Application: Ultrasonic
  Yes
• Feature: Clear Object Detection
  Yes
• Feature: Timing (Hold/Delay)
  No
• Feature: Remote Teach
  Yes
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Ultrasonic Frequency (kHz)
  300
• Power/Current Consumption (exclusive of load)
  65 mA max; 40 mA @ 25 V dc
Remote Teach and Laser Control Input Impedence
12 kΩ
Minimum Window Size (mm)
5
Barrel Diameter (mm)
18
Analog Linearity (mm)
+/- 0.5
Rep Rate (ms)
2.5
Minimum Response Time (ms)
2.5
Temp. Warm-up Drift (Notes 2)
After 60 min, the apparent switchpoint is < 0.3% of the actual position.
Temp. Warm-up Drift (Notes 1)
After 30 min, the apparent switchpoint is < 0.5% of the actual position.
Temperature Warm-up Drift upon Power-up
Temp. compensation enabled, < 1.0% of the sensing distance upon power-up.
Warm-up Time (minutes)
10
Max Op. Relative Humidity Non-Condensing (%)
100
Min Operating Temperature (°C)
-20
Max Operating Temperature (°C)
60
NEMA Rating
NEMA 6P
Storage Temperature (°C)
-40 to 80
Output Protection
Protected against short circuit conditions
IP Rating
IP67
Discrete (Switched) Outputs
Bipolar (NPN & PNP)
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Analog Voltage Output Rating
2.5 kΩ min. load impedance
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Temperature Effect (mm/°C)
0.02% of sensing distance/°C
Number of Pins
5
Adjustments
Push Button; Remote Teach
Delay at Power-up (ms)
300
Power Supply
12-30 V dc
Minimum Sensing Distance (mm)
30
Max Sensing Distance (mm)
300
Analog Resolution/Discrete Repeatability
1 at 2.5 ms response speed, 0.5 at 30 ms response speed
Quick Disconnect Type
No QD
Connection
Flying Leads
Input/Output
Analog
Analog Output Configuration
0-10 V dc
Indicator
LED(s)
Primary Housing Material
ABS/Polycarbonate
Sensing Beam
Ultrasonic
Sensing Mode (General)
Proximity
Cable Length (m)
2
Housing Style
Barrel - Straight
PC Configurable
No
Sensing Mode (Detailed)
Time of Flight
Device Type
Sensor
Power
DC
Max Measurement Range
>100 mm - <=500 mm
Main function
Sensor (Distance)
Sensing distance
30...300mm
Compliant with standard(s)
cULus CCC CE
Sub-range name
S18U
Primary brand
Banner Engineering
Thread size
M18
Connection type
Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Material
thermoplastic housing
Order code / Manufacturer SKU
02699
Product series / family name
U-GAGE series
Design
time-of-flight system
Analog outputs
1 x analog output (0-10Vdc)
Emission frequency
300kHz
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Shape
Cylindrical threaded/barrel
Degree of protection
IP67 NEMA 6P
Ambient air temperature for operation
-20...+60 °C
Functions
Ultrasonic distance sensor (straight axis) green LED (power ON) yellow LED (output state) red LED (teach active) TEACH mode
Protection functions
Short-circuit
