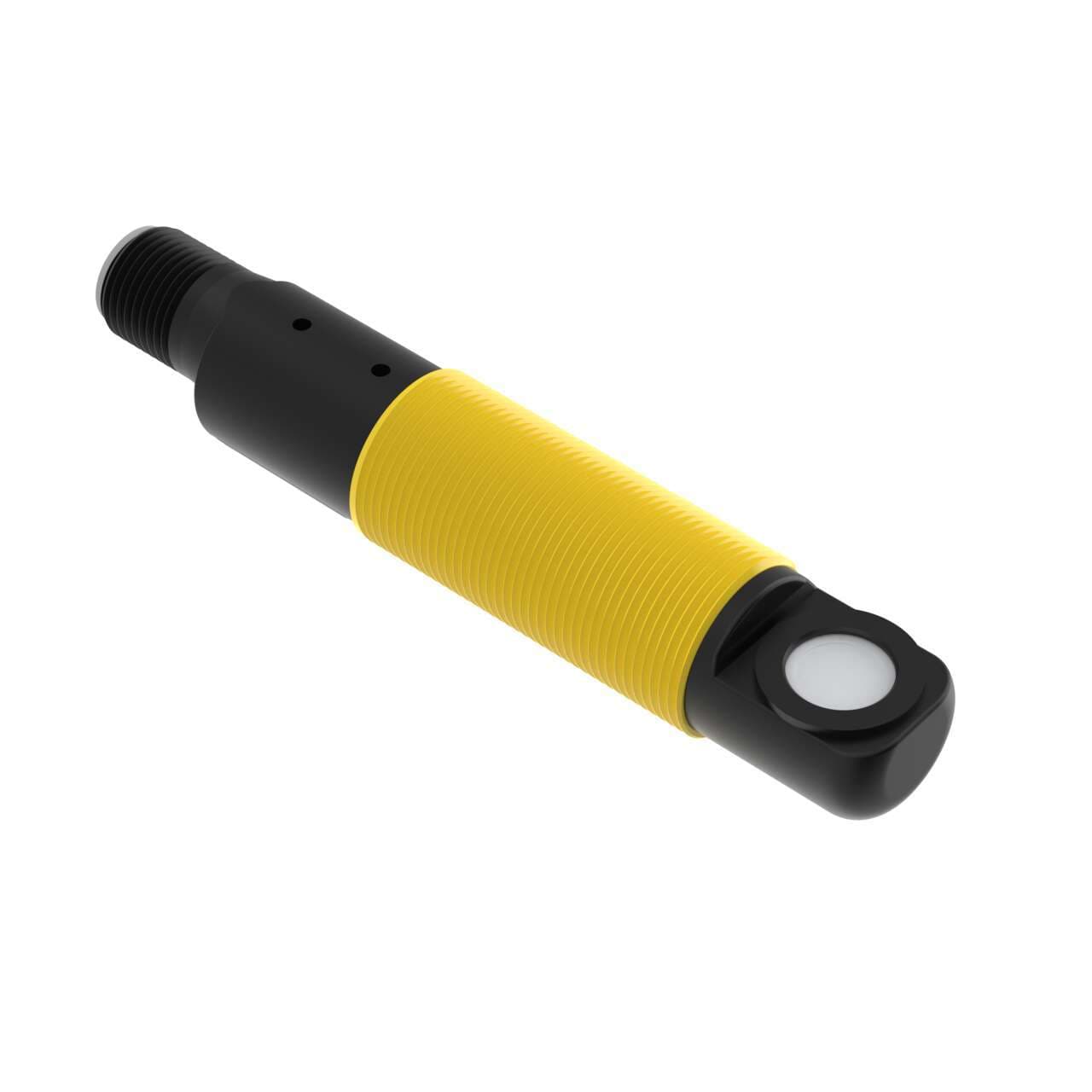

S18UBARQ Banner Ultrasonic Sensors

Product Details

• Weight
  36.28736 g
• Country Of Origin
  CN
• Profibus
  No
• 1-wire Serial Interface
  No
• Wireless
  No
• SSI
  No
• RS-485
  No
• RS-232
  No
• RS-422
  No
• PROFINET
  No
• IO Link
  No
• Common Ethernet Protocol
  No
• Application: Ultrasonic
  Yes
• Feature: Chemical Resistant
  No
• Feature: Timing (Hold/Delay)
  No
• Feature: Clear Object Detection
  Yes
• Feature: Remote Teach
  Yes
• Power/Current Consumption (exclusive of load)
  65 mA max; 40 mA @ 25 V dc
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Max Off-state Leakage Current (µA)
  5
Discrete Output Hysteresis (mm)
0.7
Ultrasonic Frequency (kHz)
300
Remote Teach and Laser Control Input Impedence
12 kΩ
Minimum Window Size (mm)
5
Barrel Diameter (mm)
18
Rep Rate (ms)
2.5
Minimum Response Time (ms)
5
Warm-up Time (minutes)
10
Max Op. Relative Humidity Non-Condensing (%)
100
Min Operating Temperature (°C)
-20
Max Operating Temperature (°C)
60
Storage Temperature (°C)
-40 to 80
NEMA Rating
NEMA 6P
Output Protection
Protected against short circuit conditions
IP Rating
IP67
Max Discrete (Switched) Output (mA)
100
Discrete (Switched) Outputs
Bipolar (NPN & PNP)
Output Saturation Voltage PNP Outputs
< 1.2 V at 10 mA; < 1.6 V at 100 mA
Temperature Effect (mm/°C)
0.02% of sensing distance/°C
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Output Saturation Voltage NPN Outputs
< 0.2 V at 10 mA; < 0.6 V at 100 mA
Number of Pins
5
Adjustments
Push Button; Remote Teach
Delay at Power-up (ms)
300
Max Sensing Distance (mm)
300
Power Supply
10-30 V dc
Minimum Sensing Distance (mm)
30
Connection
Integral QD
Analog Resolution/Discrete Repeatability
0.5
Quick Disconnect Type
M12 (Euro)
Input/Output
Discrete
Indicator
LED(s)
Primary Housing Material
ABS/Polycarbonate
Sensing Mode (General)
Proximity
Max Measurement Range
>100 mm - <=500 mm
Device Type
Sensor
PC Configurable
No
Housing Style
Barrel - Right Angle
Sensing Mode (Detailed)
Time of Flight
Power
DC
Sensing Beam
Ultrasonic
Product series / family name
U-GAGE series
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Main function
Sensor (Distance)
Thread size
M18
Degree of protection
IP67 NEMA 6P
Sub-range name
S18U
Sensing distance
30...300mm
Material
thermoplastic housing
Primary brand
Banner Engineering
Functions
Ultrasonic distance sensor (right-angle) green LED (power ON) yellow LED (output state) red LED (teach active) TEACH mode
Connection type
Pre-equipped with 5-pin Euro-style M12 connector
Protection functions
Short-circuit
Compliant with standard(s)
cULus CE
Design
time-of-flight system
Digital outputs
1 x digital output (PNP/NPN transistor)
Emission frequency
300kHz
Shape
Cylindrical threaded/barrel
Ambient air temperature for operation
-20...+60 °C
Order code / Manufacturer SKU
02715
