S18UIAR W-30 Banner Sensors & Transducers

Name: S18UIAR W-30
Brand: Banner

Part#:S18UIAR W-30

Manufacturer:Banner

Category:Sensors & Transducers

Product Lifecycle:Active

Product description

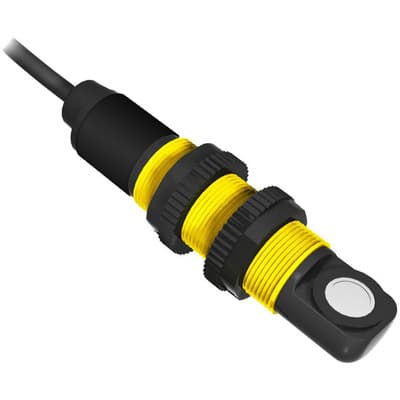

Ultrasonic distance sensor (right-angle) with time-of-flight system - Banner Engineering (U-GAGE series - S18U) - Part #02710 - Sensing range 30...300mm - 300kHz emission frequency - 1 x analog output (4-20mA) - Supply voltage 10Vdc-30Vdc (12Vdc / 24Vdc n

Product Details

Product series / family name
U-GAGE series
Design
time-of-flight system
Connection type
Pre-wired with 30ft / 9m cable terminated with bare end flying leads
Ambient air temperature for operation
-20...+60 °C
Order code / Manufacturer SKU
02710
Emission frequency
300kHz
Sub-range name
S18U
Sensing distance
30...300mm
Degree of protection
IP67 NEMA 6P
Equivalent to
S18UIARW30
Main function
Sensor (Distance)
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Thread size
M18
Material
thermoplastic housing
Compliant with standard(s)
cULus CCC CE
Primary brand
Banner Engineering
Functions
Ultrasonic distance sensor (right-angle) green LED (power ON) yellow LED (output state) red LED (teach active) TEACH mode
Shape
Cylindrical threaded/barrel
Analog outputs
1 x analog output (4-20mA)
Protection functions
Short-circuit

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
