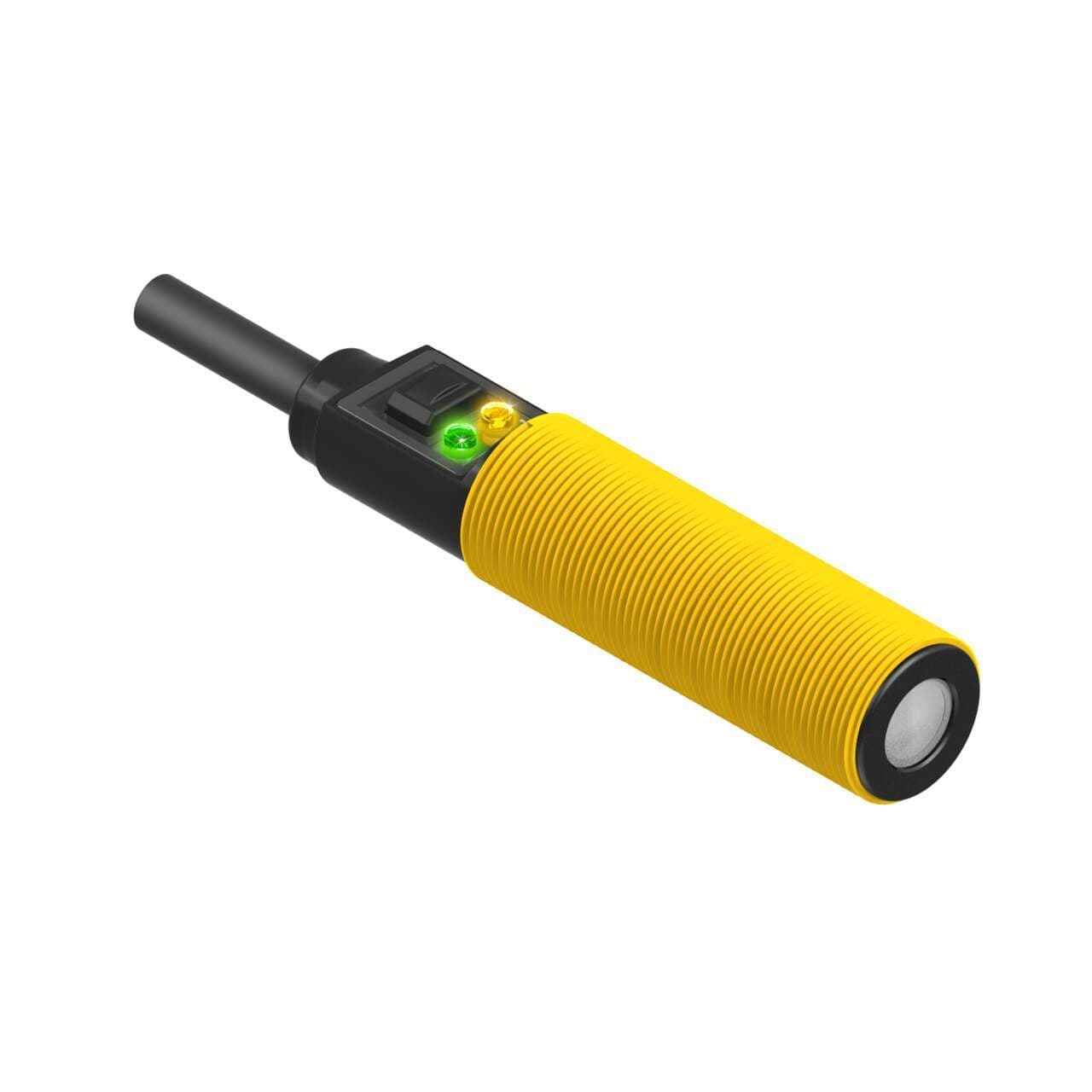

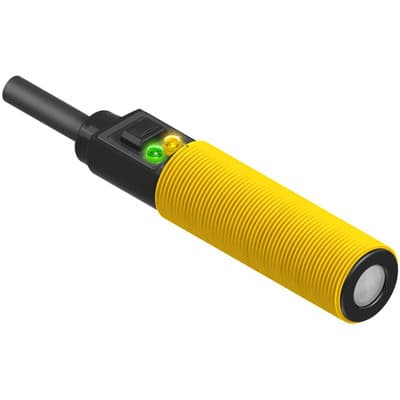

S18UBA Banner Ultrasonic Sensors

Product Details

• Weight
  181.4368 g
• Country Of Origin
  CN
• SSI
  No
• Profibus
  No
• 1-wire Serial Interface
  No
• Wireless
  No
• RS-485
  No
• RS-422
  No
• RS-232
  No
• PROFINET
  No
• Common Ethernet Protocol
  No
• IO Link
  No
• Application: Ultrasonic
  Yes
• Feature: Chemical Resistant
  No
• Feature: Timing (Hold/Delay)
  No
• Feature: Remote Teach
  Yes
• Feature: Clear Object Detection
  Yes
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Power/Current Consumption (exclusive of load)
  65 mA max; 40 mA @ 25 V dc
• Max Off-state Leakage Current (µA)
  5
Ultrasonic Frequency (kHz)
300
Discrete Output Hysteresis (mm)
0.7
Remote Teach and Laser Control Input Impedence
12 kΩ
Barrel Diameter (mm)
18
Minimum Window Size (mm)
5
Rep Rate (ms)
2.5
Warm-up Time (minutes)
10
Minimum Response Time (ms)
5
Max Op. Relative Humidity Non-Condensing (%)
100
Min Operating Temperature (°C)
-20
Max Operating Temperature (°C)
60
Storage Temperature (°C)
-30 to 65
IP Rating
IP67
NEMA Rating
NEMA 6P
Output Protection
Protected against short circuit conditions
Discrete (Switched) Outputs
Bipolar (NPN & PNP)
Output Saturation Voltage PNP Outputs
< 1.2 V at 10 mA; < 1.6 V at 100 mA
Max Discrete (Switched) Output (mA)
100
Output Saturation Voltage NPN Outputs
< 0.2 V at 10 mA; < 0.6 V at 100 mA
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Number of Pins
5
Adjustments
Push Button; Remote Teach
Temperature Effect (mm/°C)
0.02% of sensing distance/°C
Power Supply
10-30 V dc
Delay at Power-up (ms)
300
Minimum Sensing Distance (mm)
30
Max Sensing Distance (mm)
300
Analog Resolution/Discrete Repeatability
0.5
Indicator
LED(s)
Connection
Flying Leads
Quick Disconnect Type
No QD
Input/Output
Discrete
Primary Housing Material
ABS/Polycarbonate
Housing Style
Barrel - Straight
Device Type
Sensor
Sensing Mode (Detailed)
Time of Flight
Sensing Mode (General)
Proximity
Cable Length (m)
2
PC Configurable
No
Power
DC
Max Measurement Range
>100 mm - <=500 mm
Sensing Beam
Ultrasonic
Product series / family name
U-GAGE series
Design
time-of-flight system
Degree of protection
IP67 NEMA 6P
Ambient air temperature for operation
-20...+60 °C
Sub-range name
S18U
Thread size
M18
Protection functions
Short-circuit
Functions
Ultrasonic distance sensor (straight axis) green LED (power ON) yellow LED (output state) red LED (teach active) TEACH mode
Digital outputs
1 x digital output (PNP/NPN transistor)
Main function
Sensor (Distance)
Sensing distance
30...300mm
Shape
Cylindrical threaded/barrel
Primary brand
Banner Engineering
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Connection type
Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Material
thermoplastic housing
Order code / Manufacturer SKU
02711
Compliant with standard(s)
cULus CE
Emission frequency
300kHz
