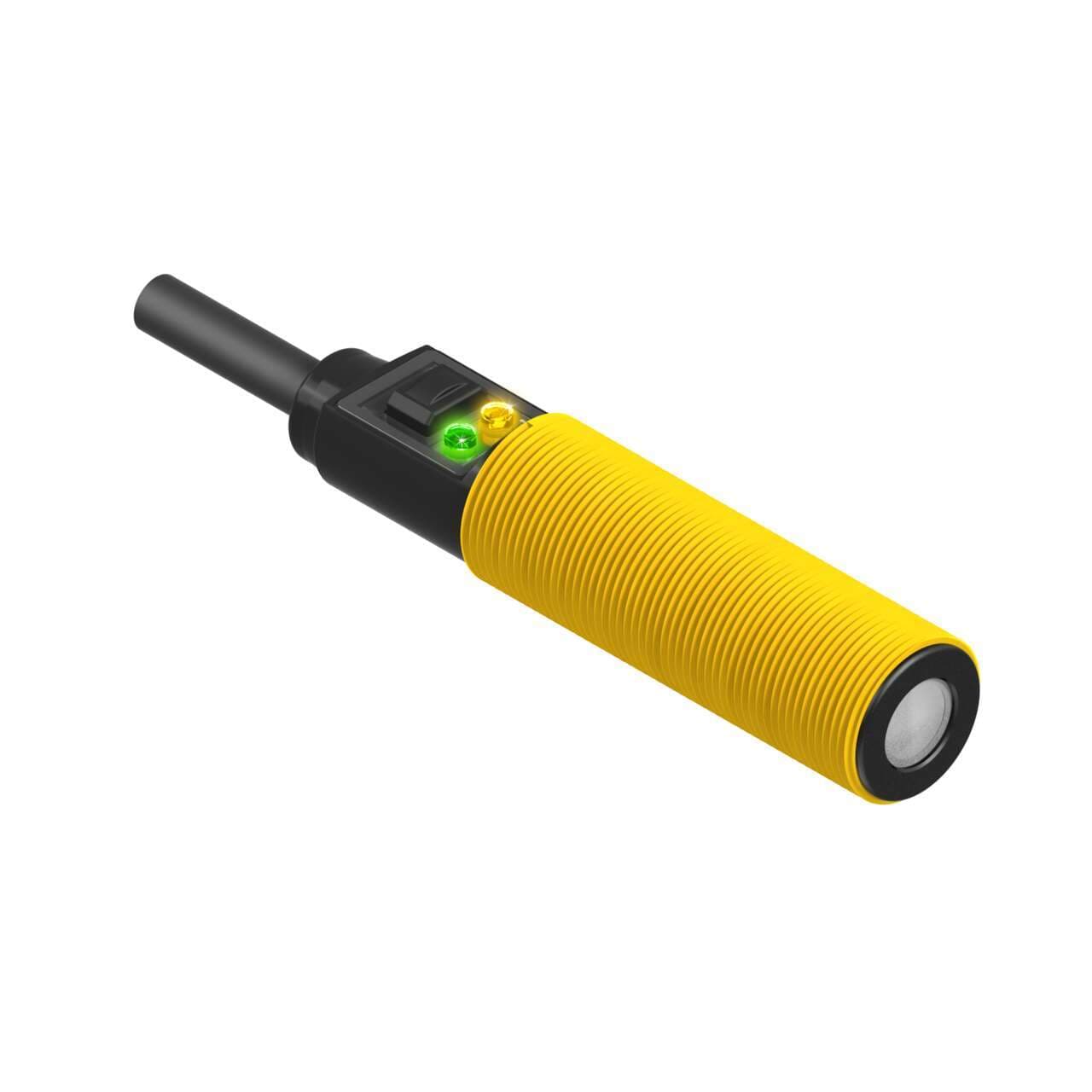

S18UIA Banner Ultrasonic Sensors

Product Details

• Weight
  181.4368 g
• Country Of Origin
  CN
• Profibus
  No
• 1-wire Serial Interface
  No
• SSI
  No
• Wireless
  No
• RS-485
  No
• RS-422
  No
• RS-232
  No
• PROFINET
  No
• IO Link
  No
• Common Ethernet Protocol
  No
• Application: Ultrasonic
  Yes
• Feature: Chemical Resistant
  No
• Feature: Timing (Hold/Delay)
  No
• Feature: Clear Object Detection
  Yes
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Feature: Remote Teach
  Yes
• Power/Current Consumption (exclusive of load)
  65 mA max; 40 mA @ 25 V dc
• Ultrasonic Frequency (kHz)
  300
Remote Teach and Laser Control Input Impedence
12 kΩ
Minimum Window Size (mm)
5
Barrel Diameter (mm)
18
Rep Rate (ms)
2.5
Analog Linearity (mm)
+/- 0.5
Temp. Warm-up Drift (Notes 1)
After 30 min, the apparent switchpoint is < 0.5% of the actual position.
Temp. Warm-up Drift (Notes 2)
After 60 min, the apparent switchpoint is < 0.3% of the actual position.
Minimum Response Time (ms)
2.5
Temperature Warm-up Drift upon Power-up
Temp. compensation enabled, < 1.0% of the sensing distance upon power-up.
Min Operating Temperature (°C)
-20
Max Op. Relative Humidity Non-Condensing (%)
100
Max Operating Temperature (°C)
60
Warm-up Time (minutes)
10
Storage Temperature (°C)
-40 to 80
NEMA Rating
NEMA 6P
IP Rating
IP67
Output Protection
Protected against short circuit conditions
Discrete (Switched) Outputs
Bipolar (NPN & PNP)
Delay at Power-up (ms)
300
Analog Voltage Output Rating
2.5 kΩ min. load impedance
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Number of Pins
5
Adjustments
Push Button; Remote Teach
Temperature Effect (mm/°C)
0.02% of sensing distance/°C
Power Supply
12-30 V dc
Analog Output Configuration
4-20 mA
Minimum Sensing Distance (mm)
30
Max Sensing Distance (mm)
300
Indicator
LED(s)
Quick Disconnect Type
No QD
Analog Resolution/Discrete Repeatability
1 at 2.5 ms response speed, 0.5 at 30 ms response speed
Connection
Flying Leads
Input/Output
Analog
Primary Housing Material
ABS/Polycarbonate
Device Type
Sensor
Sensing Mode (Detailed)
Time of Flight
Housing Style
Barrel - Straight
Sensing Mode (General)
Proximity
PC Configurable
No
Cable Length (m)
2
Power
DC
Max Measurement Range
>100 mm - <=500 mm
Sensing Beam
Ultrasonic
Product series / family name
U-GAGE series
Shape
Cylindrical threaded/barrel
Sub-range name
S18U
Sensing distance
30...300mm
Connection type
Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Compliant with standard(s)
cULus CCC CE
Main function
Sensor (Distance)
Thread size
M18
Primary brand
Banner Engineering
Functions
Ultrasonic distance sensor (straight axis) green LED (power ON) yellow LED (output state) red LED (teach active) TEACH mode
Material
thermoplastic housing
Emission frequency
300kHz
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Design
time-of-flight system
Degree of protection
IP67 NEMA 6P
Order code / Manufacturer SKU
02702
Analog outputs
1 x analog output (4-20mA)
Protection functions
Short-circuit
Ambient air temperature for operation
-20...+60 °C
