QS18VN6LD
Banner
Product Lifecycle: Active

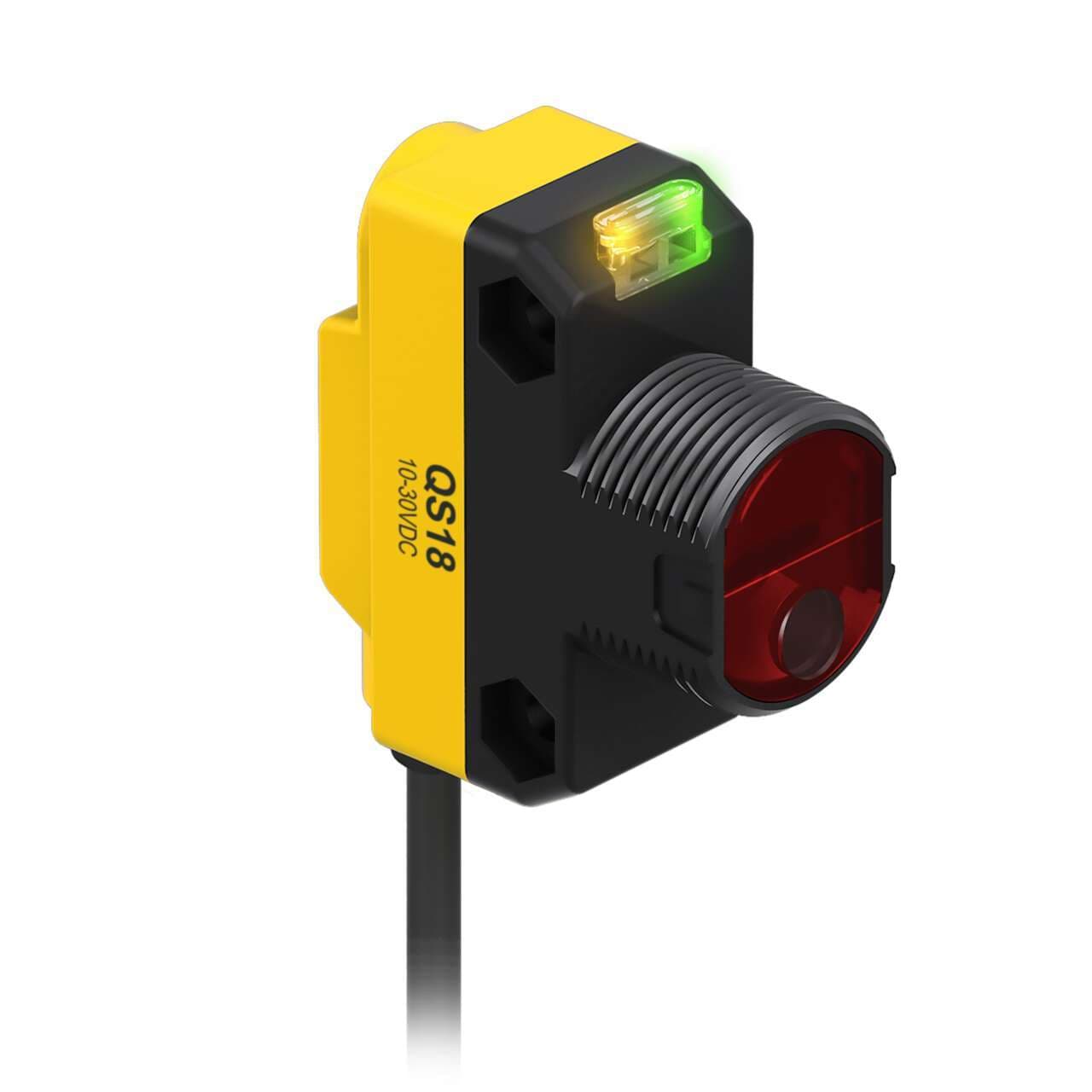

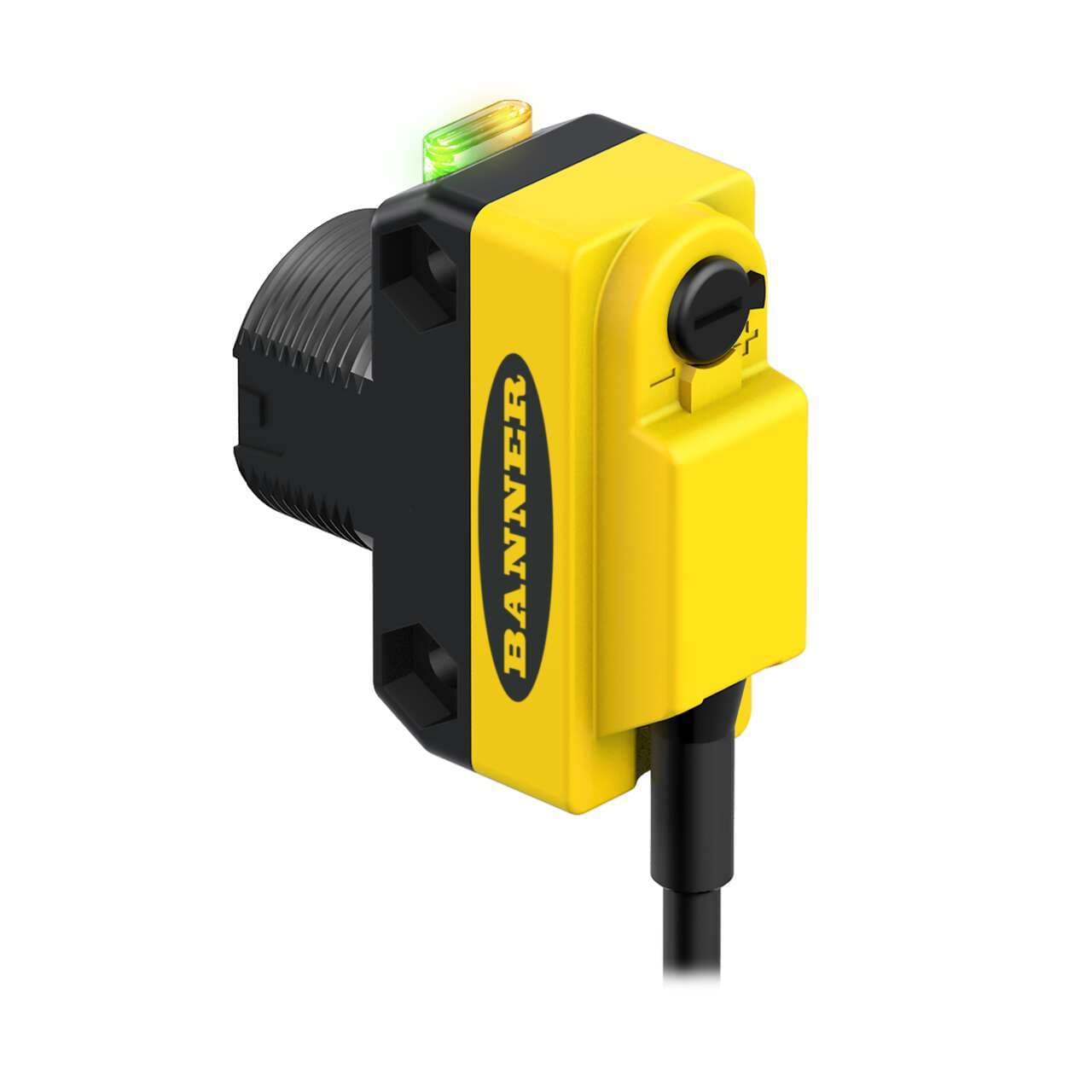

Banner Engineering QS18VN6LD is a Class 1 laser photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for secure installation. It operates within an ambient air temperature range of -10 to +50°C and is equipped with a diffuse mode potentiometer adjustment for precise sensing control. This sensor is connected via a pre-wired 6.5ft / 2m cable with bare end flying leads, belonging to the QS18LD series. It boasts a degree of protection rated at IP67 NEMA 6, ensuring durability in various environments. The QS18VN6LD operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc, and is housed in a thermoplastic casing with an acrylic lens. It has a sensing distance of 300mm and emits a visible red light at a wavelength of 650 nm. This sensor supports Light-ON and Dark-ON operating modes and includes 1 x digital output (NPN transistor; complementary NO/NC) with a rapid response time of 0.7ms / 0.0007 s.
![QS18VN6LD](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2F38b59de1-f213-4815-834f-b278f7533def.jpeg&w=3840&q=75)
Banner Engineering QS18VN6LD is a Class 1 laser photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for secure installation. It operates within an ambient air temperature range of -10 to +50°C and is equipped with a diffuse mode potentiometer adjustment for precise sensing control. This sensor is connected via a pre-wired 6.5ft / 2m cable with bare end flying leads, belonging to the QS18LD series. It boasts a degree of protection rated at IP67 NEMA 6, ensuring durability in various environments. The QS18VN6LD operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc, and is housed in a thermoplastic casing with an acrylic lens. It has a sensing distance of 300mm and emits a visible red light at a wavelength of 650 nm. This sensor supports Light-ON and Dark-ON operating modes and includes 1 x digital output (NPN transistor; complementary NO/NC) with a rapid response time of 0.7ms / 0.0007 s.
Product details
- IO LinkNo
- DeviceNetNo
- Feature: Chemical ResistantNo
- Feature: AudibleNo
- Feature: Hazardous AreaNo
- Feature: EncapsulatedNo
- Feature: Timing (Hold/Delay)No
- Opposed Mode Emitter/ReceiverN/A
- Barrel Diameter (mm)18
- Delay at Power-up (ms)200
- IndicatorLEDs
- Number of Pins4
- IP RatingIP67
- Lens MaterialAcrylic
- Max Op. Relative Humidity [%]95% @ 50°C
- AdjustmentsPotentiometer
- NEMA RatingNEMA 6
- Repeatability (µs)130
- Sensing Beam Wavelength650
- Special Feature: Water DetectionNo
- Special Feature: Intrinsically SafeNo
- Special Feature: Remote TeachNo
- Output response time (ms)0.7
- Max Op. Temp. (°C)50
- OperationLight/Dark Operate
- Power Supply/Supply Voltage10-30 V dc
- Min Op. Temp. (°C)-10
- Quick Disconnect TypeNo QD
- ConnectionCable
- Housing StyleRectangular w/M18 Mount
- OutputsNPN
- Max Sensing Distance (mm)300
- Input/OutputDiscrete
- Laser ClassificationClass 1
- Small Visible SpotLaser
- Primary Housing MaterialABS
- Sensing Mode (Detailed)Diffuse
- PowerDC
- Sensing Mode (General)Proximity
- Sensing BeamVisible Red Laser
- Cable Length (m)2
- Primary brandBanner Engineering
- Main functionSensor (Photo-electric)
- Product series / family nameWORLD-BEAM series
- Sensing distance300mm
- Mounting modeThreaded mount
- Sub-range nameQS18LD series
- Wavelength650 nm
- Light ColorVisible red
- Degree of protectionIP67 NEMA 6
- Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- ShapeRectangular
- Operating modeLight-ON Dark-ON
- Materialthermoplastic housing Acrylic lns.
- FunctionsClass 1 Laser photo-electric sensor green LED (power ON) yellow LED (light sensed) potentiometer adjustment
- Thread sizeM18
- Response time0.7ms / 0.0007 s
- Ambient air temperature for operation-10...+50 °C
- Order code / Manufacturer SKU73034
- Designdiffuse mode
- Connection typePre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Digital outputs1 x digital output (NPN transistor)
- Compliant with standard(s)cURus CE
