QS18VN6FPQ8
Banner
Product Lifecycle: Active

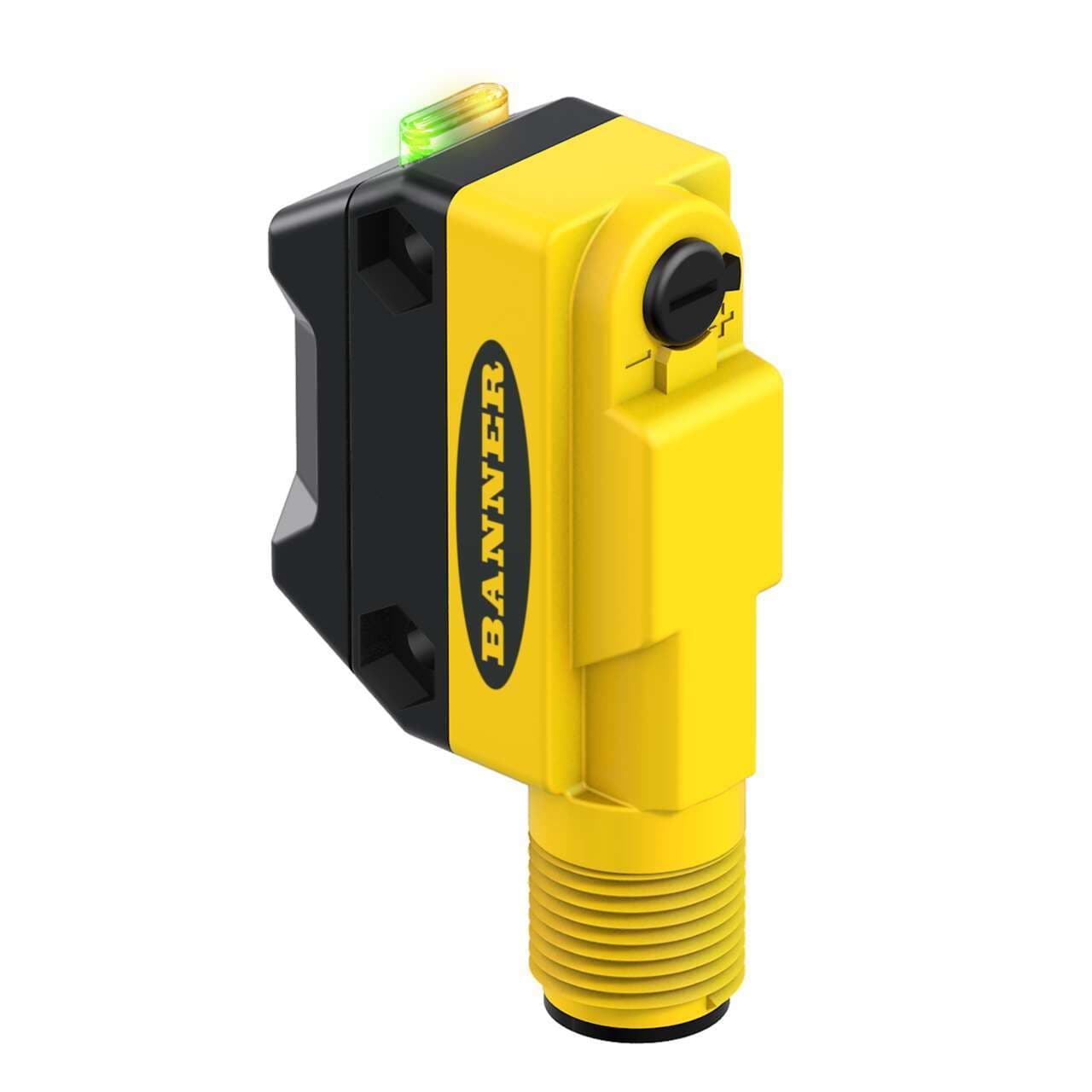

Banner Engineering QS18VN6FPQ8 is a polarized photo-electric fiber optic sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature range of -20 to +70°C and features a retro-reflective mode with potentiometer adjustment for fine-tuning. It comes pre-equipped with a 4-pin Euro-style M12 connector for easy installation. As part of the QS18 series, it boasts a degree of protection rated at IP67 NEMA 6, ensuring durability in harsh environments. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens and plastic fiber, designed for longevity. The QS18VN6FPQ8 emits visible red light and offers versatile operating modes, including Light-ON and Dark-ON. It features a single digital output (NPN transistor; complementary NO/NC) and boasts a rapid response time of 0.6ms / 0.0006 s, facilitating quick and efficient operation.

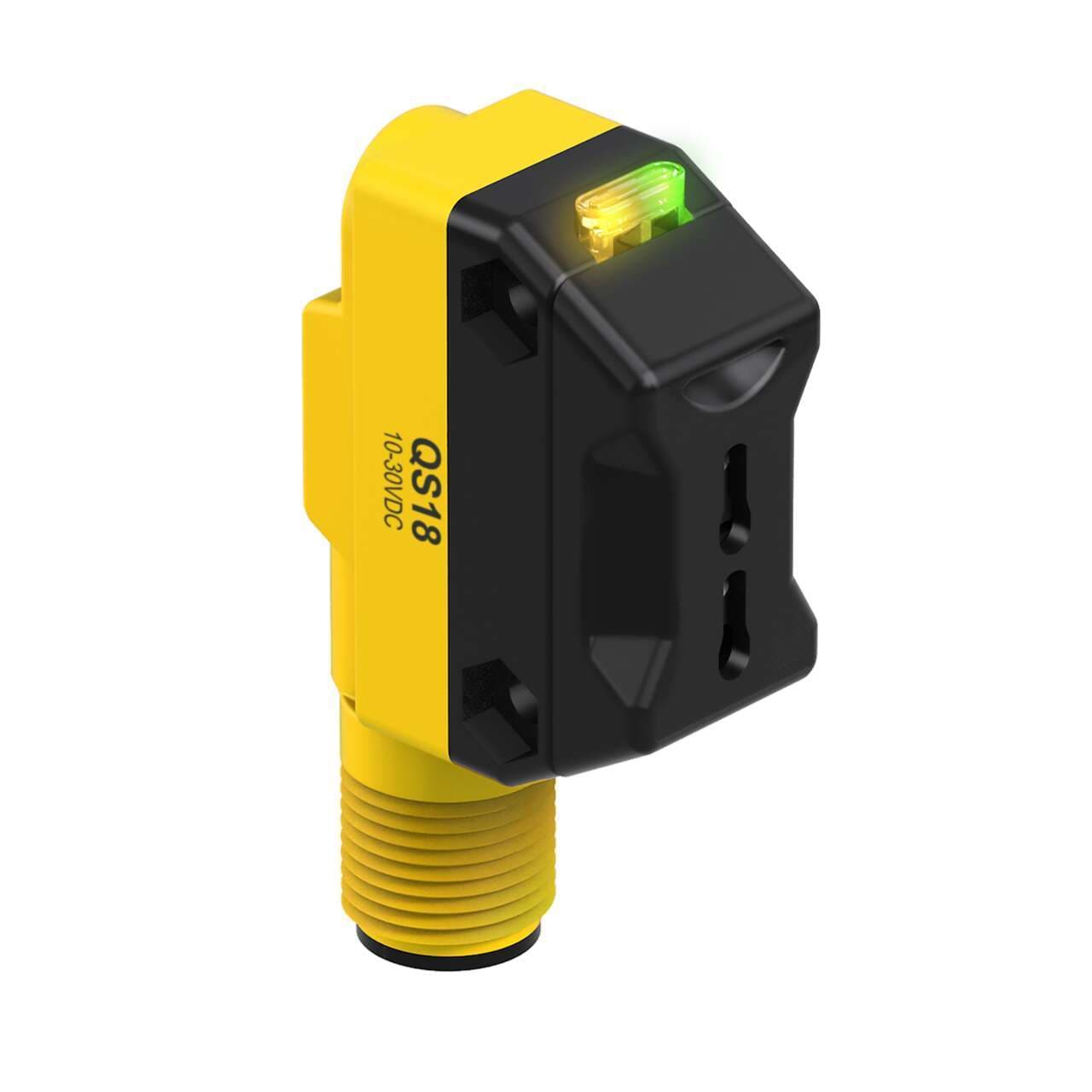

![QS18VN6FPQ8](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2Fcbe1a639-aa27-49f4-81bd-44b5458f95d3.jpeg&w=3840&q=75)
Banner Engineering QS18VN6FPQ8 is a polarized photo-electric fiber optic sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature range of -20 to +70°C and features a retro-reflective mode with potentiometer adjustment for fine-tuning. It comes pre-equipped with a 4-pin Euro-style M12 connector for easy installation. As part of the QS18 series, it boasts a degree of protection rated at IP67 NEMA 6, ensuring durability in harsh environments. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens and plastic fiber, designed for longevity. The QS18VN6FPQ8 emits visible red light and offers versatile operating modes, including Light-ON and Dark-ON. It features a single digital output (NPN transistor; complementary NO/NC) and boasts a rapid response time of 0.6ms / 0.0006 s, facilitating quick and efficient operation.
Product details
- IO LinkNo
- DeviceNetNo
- Feature: Quick DisconnectYes
- Feature: Chemical ResistantNo
- Feature: EncapsulatedNo
- Feature: Hazardous AreaNo
- Feature: AudibleNo
- Feature: Timing (Hold/Delay)No
- IndicatorLEDs
- Lens MaterialAcrylic
- Barrel Diameter (mm)18
- IP RatingIP67
- Number of Pins4
- AdjustmentsPotentiometer
- Max Op. Relative Humidity [%]95% @ 50°C
- NEMA RatingNEMA 6
- Repeatability (µs)150
- Delay at Power-up (ms)100
- Special Feature: Intrinsically SafeNo
- Special Feature: Water DetectionNo
- Special Feature: Remote TeachNo
- Min Op. Temp. (°C)-20
- Output response time (ms)0.6
- Max Op. Temp. (°C)70
- Power Supply/Supply Voltage10-30 V dc
- OperationLight/Dark Operate
- ConnectionIntegral QD
- Quick Disconnect TypeM12 (Euro)
- Housing StyleRectangular
- Sensing Mode (General)Retroreflective
- Max Sensing Distance (mm)3500
- Input/OutputDiscrete
- OutputsNPN
- Primary Housing MaterialABS
- PowerDC
- Sensing Mode (Detailed)Polarized
- Sensing BeamVisible Red LED
- Primary brandBanner Engineering
- Sensing distance3.5m
- Digital outputs1 x digital output (NPN transistor)
- Order code / Manufacturer SKU66467
- Response time0.6ms / 0.0006 s
- Ambient air temperature for operation-20...+70 °C
- ShapeRectangular
- Materialthermoplastic housing Acrylic lns. Plastic fiber
- Compliant with standard(s)cURus CE
- Sub-range nameQS18 series
- Designretro-reflective mode
- Product series / family nameWORLD-BEAM series
- Light ColorVisible red
- Main functionSensor (Photo-electric)
- FunctionsPolarized photo-electric fiber optic sensor green LED (power ON) yellow LED (light sensed) potentiometer adjustment
- Connection typePre-equipped with 4-pin Euro-style M12 connector
- Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Degree of protectionIP67 NEMA 6
- Operating modeLight-ON Dark-ON
