QS18EP6DBQ5
Banner
Product Lifecycle: Active

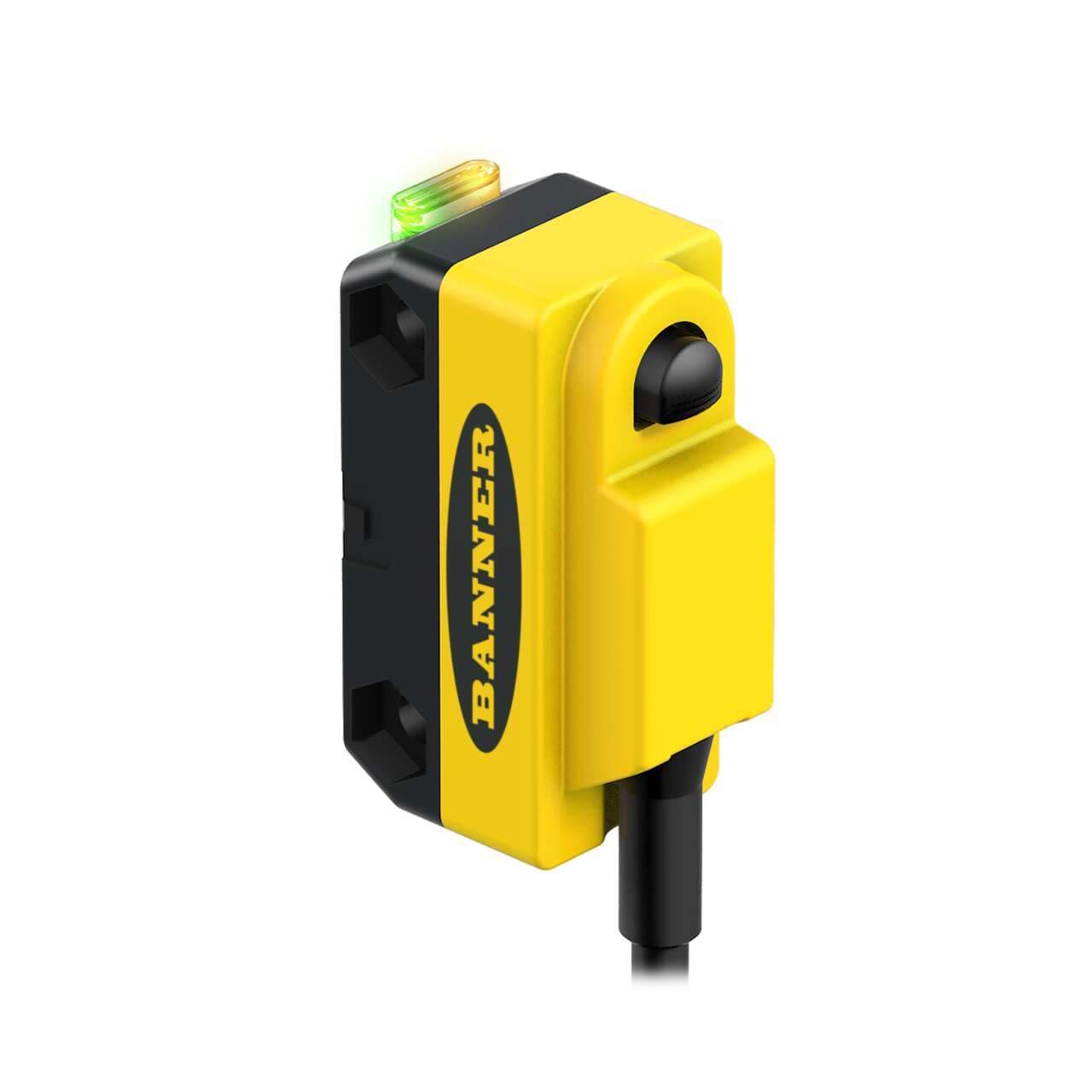

Banner Engineering QS18EP6DBQ5 is a photo-electric sensor from the QS18 Expert series, designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature range of -20 to +70°C and features a diffuse mode with TEACH mode for adaptable sensing. It comes pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector for easy installation. The QS18EP6DBQ5 is housed in a thermoplastic casing with a Polymethyl methacrylate (PMMA) lens, ensuring durability and clear signal transmission. It offers a sensing distance of up to 500mm and utilizes infrared (IR) light for detection. This sensor can operate in both Light-ON and Dark-ON modes, providing flexibility for different operational requirements. It has a digital output (PNP transistor) and boasts a quick response time of 0.6ms / 0.0006 s. The device is powered by a supply voltage ranging from 10Vdc to 30Vdc (12Vdc / 24Vdc nom.) and is protected to IP67 NEMA 6 standards, making it suitable for challenging environments.

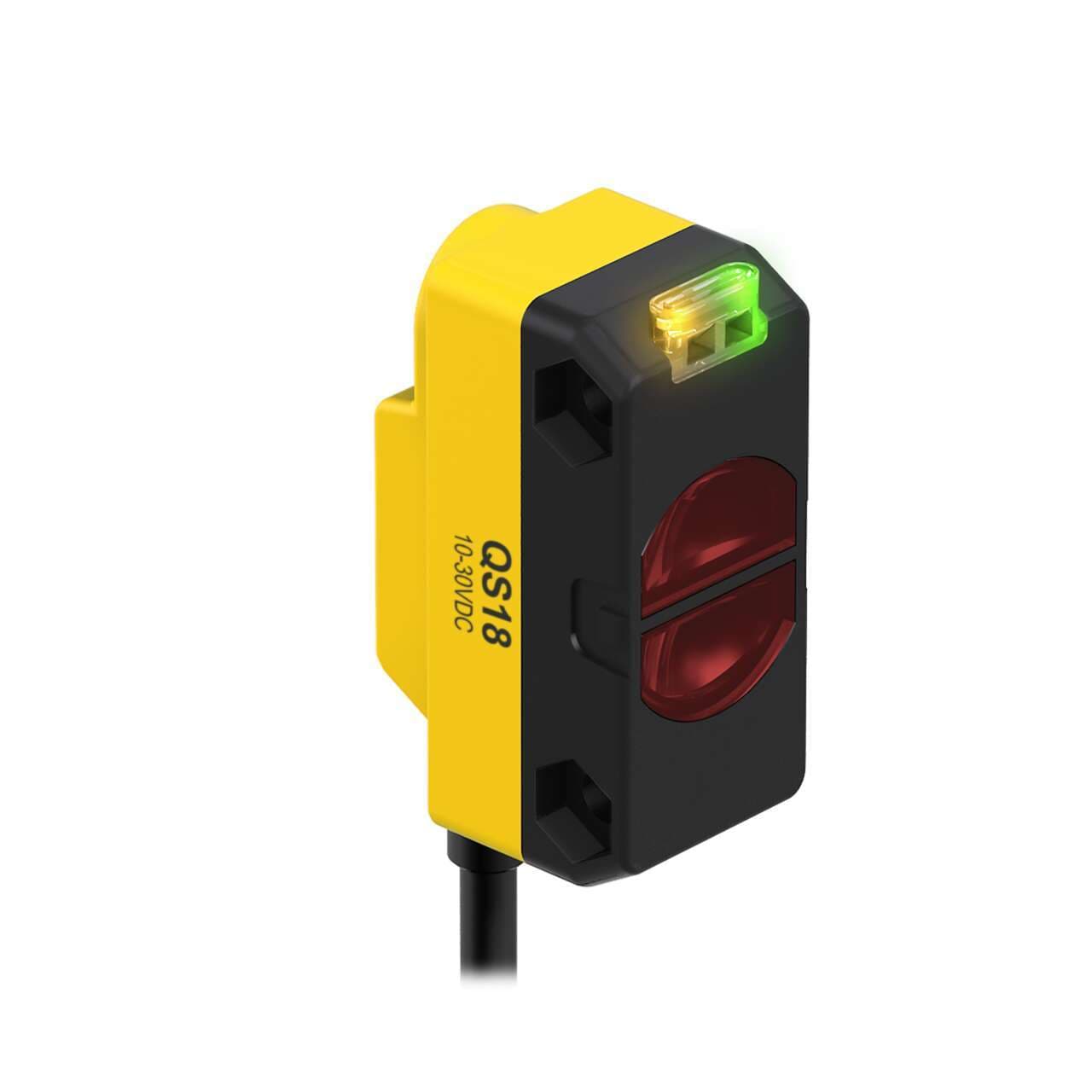

![QS18EP6DBQ5](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2F735690ae-c26a-48d6-adfd-726d7a7c7349.jpeg&w=3840&q=75)
Banner Engineering QS18EP6DBQ5 is a photo-electric sensor from the QS18 Expert series, designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature range of -20 to +70°C and features a diffuse mode with TEACH mode for adaptable sensing. It comes pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector for easy installation. The QS18EP6DBQ5 is housed in a thermoplastic casing with a Polymethyl methacrylate (PMMA) lens, ensuring durability and clear signal transmission. It offers a sensing distance of up to 500mm and utilizes infrared (IR) light for detection. This sensor can operate in both Light-ON and Dark-ON modes, providing flexibility for different operational requirements. It has a digital output (PNP transistor) and boasts a quick response time of 0.6ms / 0.0006 s. The device is powered by a supply voltage ranging from 10Vdc to 30Vdc (12Vdc / 24Vdc nom.) and is protected to IP67 NEMA 6 standards, making it suitable for challenging environments.
Product details
- IO LinkNo
- Feature: Quick DisconnectYes
- Feature: Chemical ResistantNo
- DeviceNetNo
- Feature: Hazardous AreaNo
- Feature: AudibleNo
- Feature: EncapsulatedNo
- Feature: Timing (Hold/Delay)Yes
- IndicatorLEDs
- Barrel Diameter (mm)N/A
- Lens MaterialPMMA
- AdjustmentsTeach Button
- Repeatability (µs)75
- Max Op. Relative Humidity [%]95% @ 50°C
- Number of Pins4
- IP RatingIP67
- NEMA RatingNEMA 6
- Special Feature: Water DetectionNo
- OutputsPNP
- Special Feature: Remote TeachYes
- Delay at Power-up (ms)100
- Max Sensing Distance (mm)500
- Special Feature: Intrinsically SafeNo
- Housing StyleRectangular
- Output response time (ms)0.6
- Input/OutputDiscrete
- Primary Housing MaterialABS
- Min Op. Temp. (°C)-20
- OperationLight/Dark Operate
- Sensing Mode (General)Proximity
- Max Op. Temp. (°C)70
- Quick Disconnect TypeM12 (Euro)
- Sensing Mode (Detailed)Diffuse
- ConnectionPigtail QD
- PowerDC
- Power Supply/Supply Voltage10-30 V dc
- Sensing BeamInfrared LED
- Product series / family nameWORLD-BEAM series
- Designdiffuse mode
- Response time0.6ms / 0.0006 s
- Degree of protectionIP67 NEMA 6
- Primary brandBanner Engineering
- ShapeRectangular
- Operating modeLight-ON Dark-ON
- Ambient air temperature for operation-20...+70 °C
- Main functionSensor (Photo-electric)
- Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Light ColorInfrared (IR)
- Materialthermoplastic housing PMMA lns.
- Order code / Manufacturer SKU68758
- Sub-range nameQS18 Expert series
- FunctionsPhoto-electric sensor green LED (power ON) yellow LED (light sensed) TEACH mode
- Connection typePre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
- Sensing distance500mm
- Digital outputs1 x digital output (PNP transistor)
- Compliant with standard(s)cURus CE
