QS18APWLV Banner Proximity Sensors

Name: QS18APWLV
Brand: Banner
Price: 121 USD
Availability: BackOrder

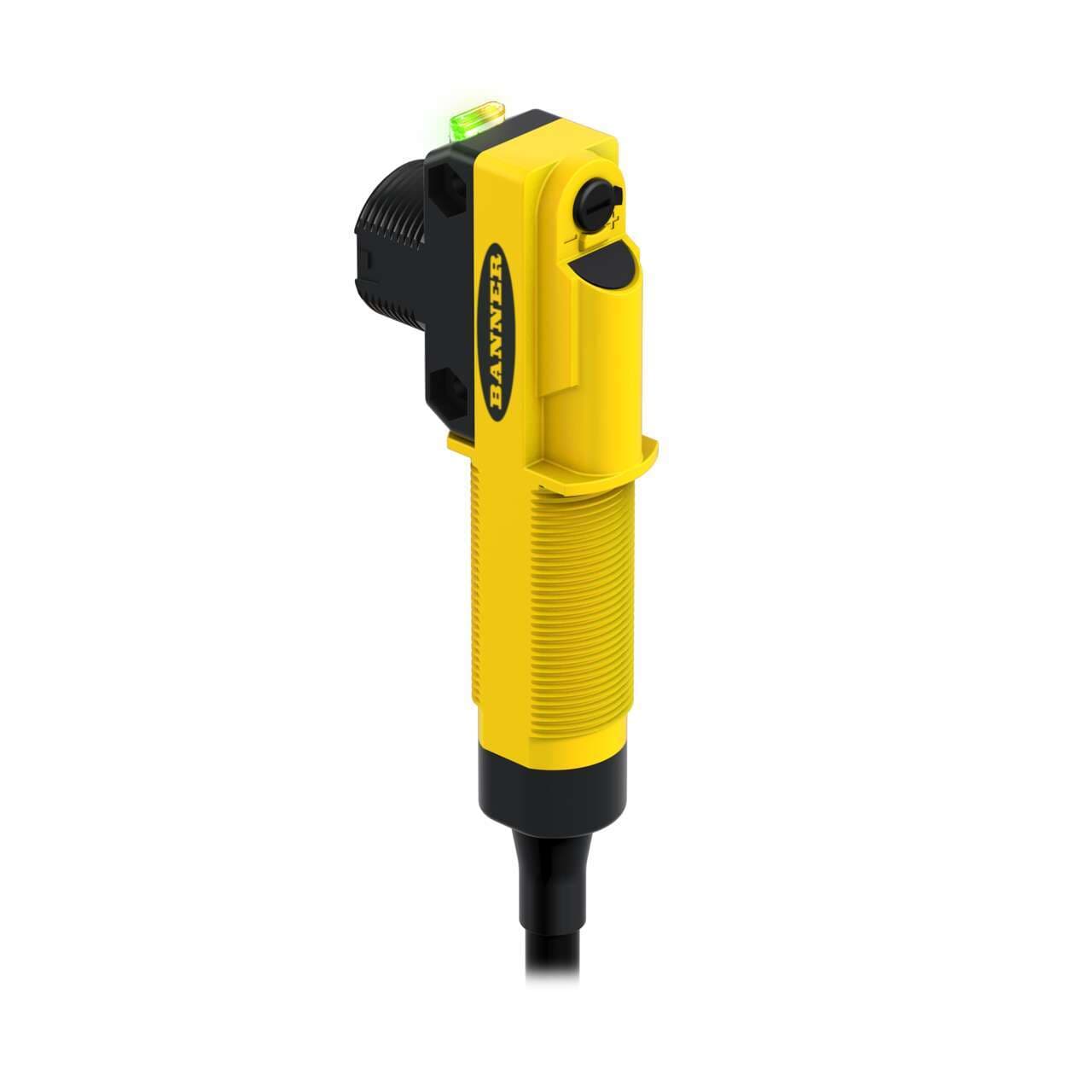

Banner QS18APWLV WORLD-BEAM QS18 Universal Volt; Retro Visible Re; Range: 6.5 m Input: 20-140 V ac/dc; Output: LO; P-MOSFET (Sourcing); 2 m Cable

Part#:QS18APWLV

Manufacturer:Banner

Alt. Part#:79593

Product Lifecycle:Active

Get a quick Quote!

WORLD-BEAM QS18 Universal Volt; Retro Visible Re; Range: 6.5 m Input: 20-140 V ac/dc; Output: LO; P-MOSFET (Sourcing); 2 m Cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QS18APWLV Banner price in the box on the right side or send a quick quote.

Product Details

Weight
158.7572 g
Country Of Origin
MX
DeviceNet
No
Indicator
LEDs
IO Link
No
Feature: Quick Disconnect
No
Feature: Audible
No
Feature: Chemical Resistant
No
Feature: Hazardous Area
No
Feature: Encapsulated
No
Feature: Timing (Hold/Delay)
No
Barrel Diameter (mm)
18
Adjustments
Potentiometer
Lens Material
PMMA
Max Op. Relative Humidity [%]
95% @ 55°C
IP Rating
IP67
NEMA Rating
NEMA 6
Number of Pins
3
Repeatability (µs)
1500
Delay at Power-up (ms)
100ms dc, 300ms ac

Sensing Beam Wavelength

630

Special Feature: Remote Teach

Special Feature: Water Detection

Output response time (ms)

8.3

Special Feature: Intrinsically Safe

Operation

Light Operate

Max Op. Temp. (°C)

Min Op. Temp. (°C)

-25

Quick Disconnect Type

No QD

Outputs

P-MOSFET (Sourcing)

Power Supply/Supply Voltage

20-140 V ac/dc

Connection

Cable

Input/Output

Discrete

Max Sensing Distance (mm)

6500

Power

AC/DC Universal

Sensing Mode (Detailed)

Non-Polarized

Housing Style

Rectangular w/M18 Mount

Primary Housing Material

ABS

Cable Length (m)

Sensing Mode (General)

Retroreflective

Sensing Beam

Visible Red LED

Supply voltage (AC)

20Vac-140Vac (120Vac nom.)

Ambient air temperature for operation

-25...+70 °C

Primary brand

Banner Engineering

Supply voltage (DC)

20Vdc-140Vdc (24Vdc / 48Vdc / 120Vdc nom.)

Thread size

M18

Operating mode

Light-ON

Sub-range name

QS18 universal voltage series

Shape

Rectangular

Mounting mode

Threaded mount

Degree of protection

IP67 NEMA 6

Product series / family name

WORLD-BEAM series

Main function

Sensor (Photo-electric)

Functions

Photo-electric sensor green LED (power ON) yellow LED (light sensed) potentiometer adjustment

Connection type

Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Digital outputs

1 x digital output (PNP MOSFET transistor)

Design

retro-reflective mode

Light Color

Visible red

Sensing distance

6.5m

Material

thermoplastic housing PMMA lns.

Response time

8.3ms / 0.0083 s

Compliant with standard(s)

cULus CE

Order code / Manufacturer SKU

79593

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QS18APWLV Description

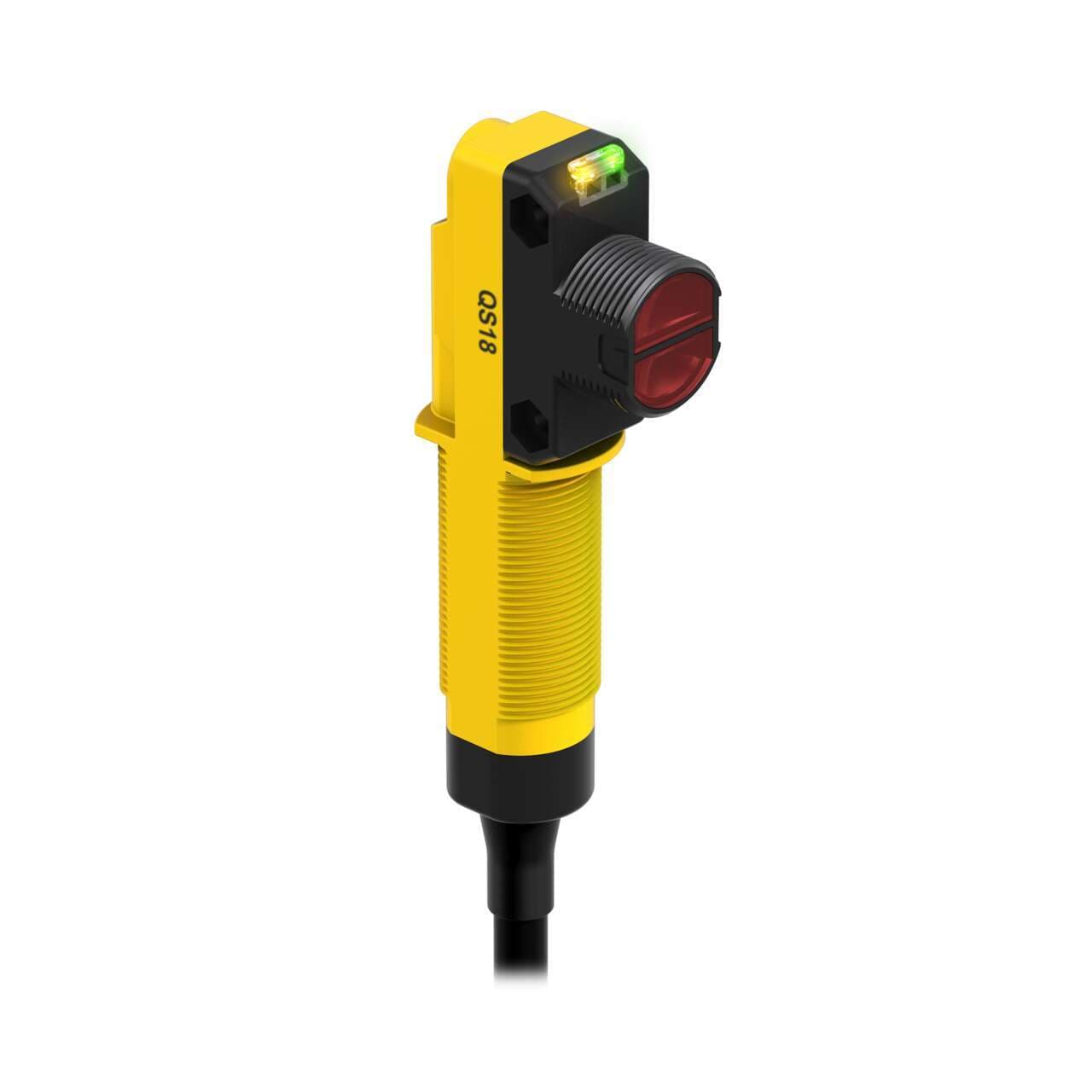

Banner Engineering QS18APWLV is a photo-electric sensor designed for versatile applications, featuring a retro-reflective mode with potentiometer adjustment. This sensor is equipped with an M18 threaded mount for easy installation and a pre-wired 6.5ft / 2m cable with bare end flying leads for connection. It operates within an ambient air temperature range of -25 to +70°C and offers a sensing distance of 6.5m. The QS18APWLV operates on a universal voltage range, accepting 20Vac-140Vac (120Vac nominal) and 20Vdc-140Vdc (24Vdc / 48Vdc / 120Vdc nominal), making it part of the QS18 universal voltage series. It features a rectangular shape with a thermoplastic housing and a Polymethyl methacrylate (PMMA) lens. The sensor provides a visible red light for detection and includes 1 x digital output (PNP MOSFET transistor) with a response time of 8.3ms / 0.0083 s. It is designed to offer a degree of protection of IP67 NEMA 6, ensuring durability in various environmental conditions.
