QDE2R4-850D Banner Cordsets
Product Details
- Weight 612.3492 g
- Country Of Origin TW
- Oil/Grease Resistant No
- Secondary Connector Type Flying Leads
- Feature: Hazardous Area No
- Primary AWG 22
- Primary Number of Conductors 5
- Primary Orientation Straight
- Maximum Temp. (°C) 105
- Voltage Rating (V) 60 V ac/75 V dc
- Primary Coupling Method M12 Single Key
- Primary Connector Type EURO
- Primary Gender Male
- Minimum Temp. (°C) -40
- IP Rating IP67
- Current Rating (A) 2.0
- Coupling Material/Color Nickel Plated Brass
- Shield/No Shield No Shield
- Trunk Length (m) No Trunk
- Cordset Length (m) 15.2
- Outside Cable Diameter (mm) 5.5
- Connector Body Material/Color PUR Black
- Cable Jacket Color Yellow
- Number of Connectors 1
- Cable Jacket Material PVC
- Number of Contacts 8
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QDE2R4-850D on Powermatic Associates is $62.00. Order now.
About the product

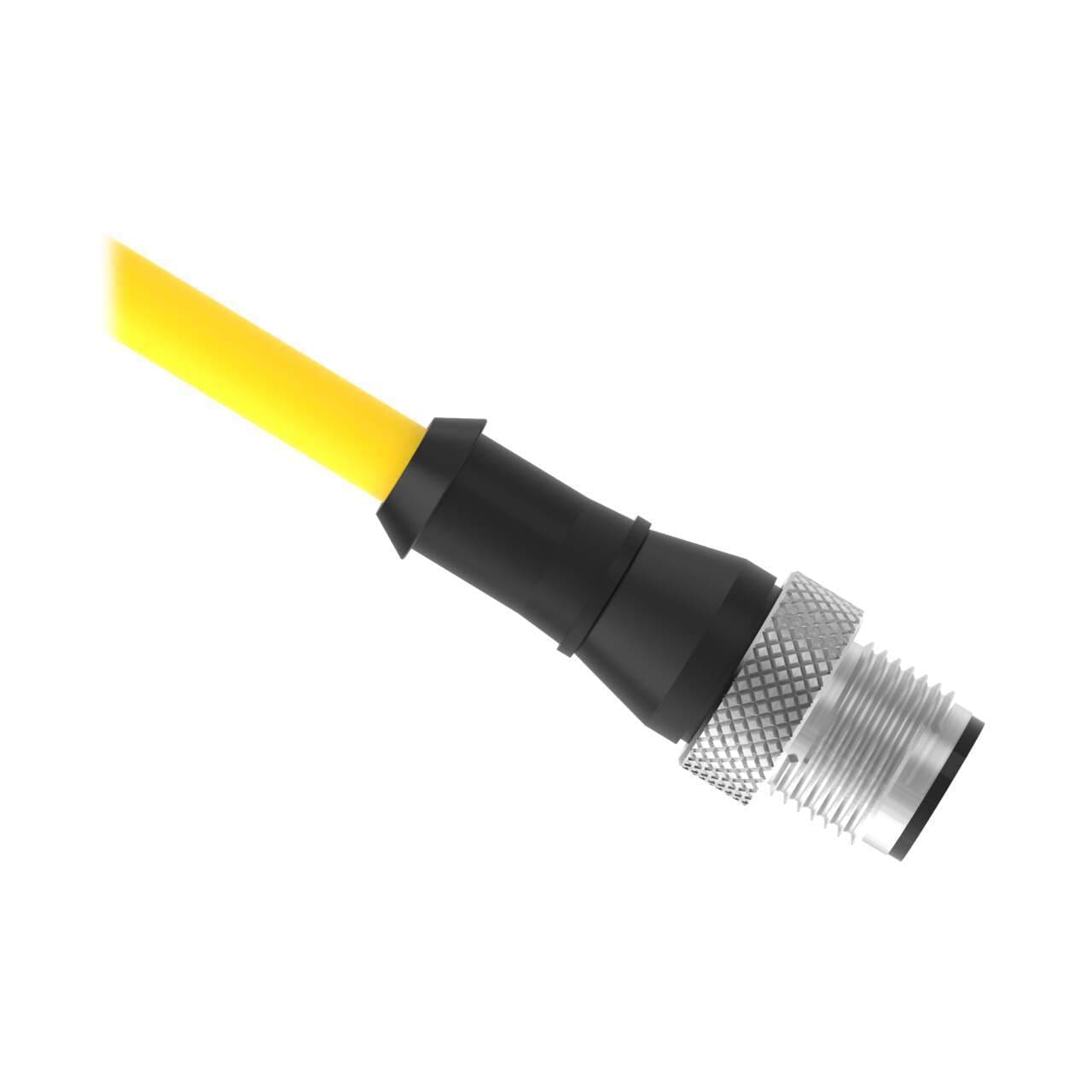

Banner Engineering QDE2R4-850D is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.5mm diameter PVC cable and is equipped with a 5-pin Euro-style M12 male connector and bare end flying leads. This cable operates within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67, making it suitable for challenging environments. The QDE2R4-850D has a yellow sheathing, a length of 15.2 meters, and is rated for 75Vdc and 60Vac.
