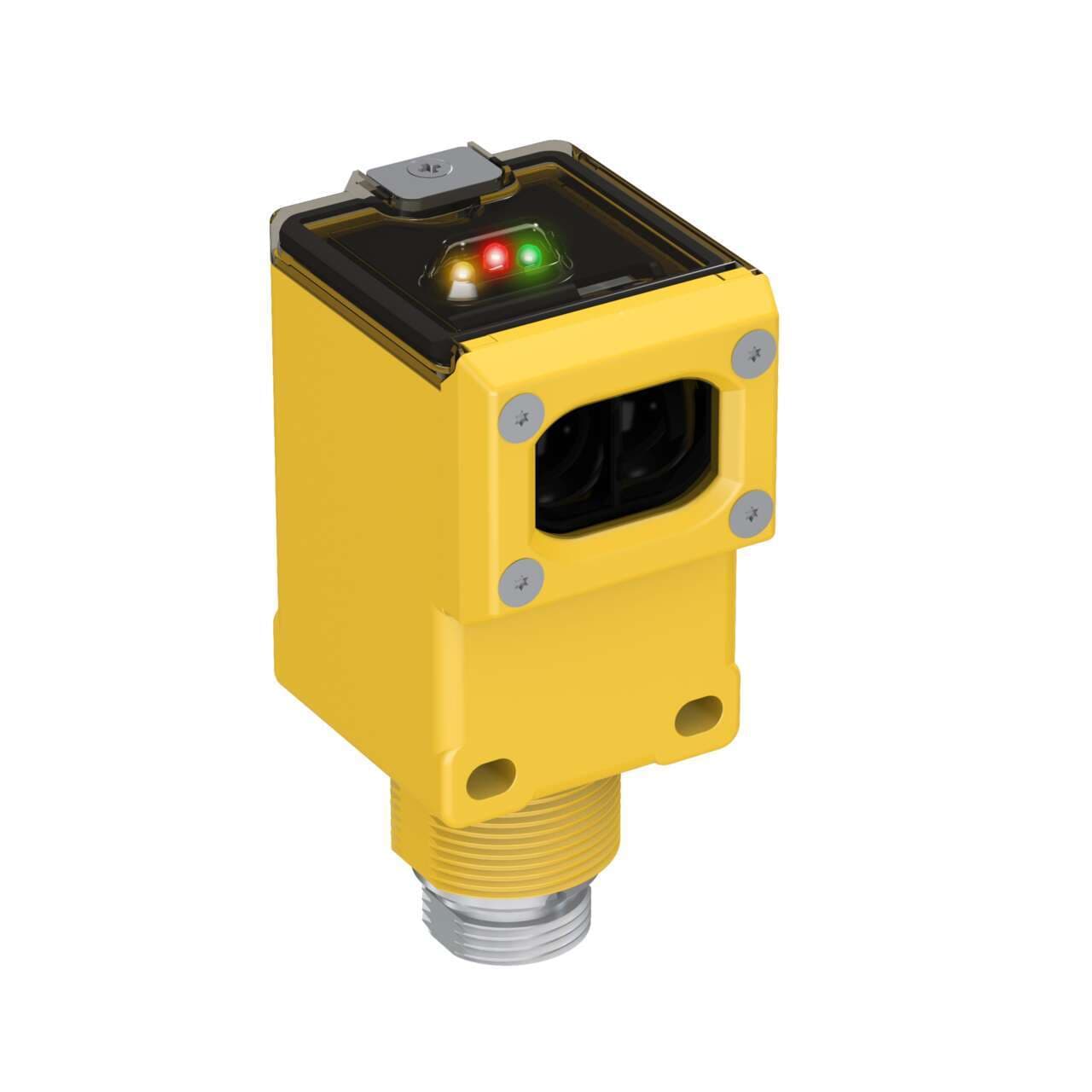

Q45VR2LVQ Banner Proximity Sensors
Part#:Q45VR2LVQ
Alt. Part#:37002
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
Q45 Series: Retro; Range: 0.08 - 9 m; Input: 90-250 V ac; Output: SPDT Electromechanical Relay; --pin Mini Integral QD
Product Details
- Weight 259.001032 g
- Country Of Origin US
- Primary brand Banner Engineering
- Functions Photo-electric sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
- Light Color Visible red
- Connection type Pre-equipped with 5-pin 7/8" Mini connector
- Digital outputs 1 x digital output (SPDT contact type)
- Sub-range name Q45VR2
- Wavelength 680 nm
- Sensing distance 8cm...9m
- Operating mode Light-ON Dark-ON
- Material thermoplastic housing Acrylic lns.
- Order code / Manufacturer SKU 37002
- Main function Sensor (Photo-electric)
- Supply voltage (AC) 90Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
- Shape Rectangular
- Mounting mode Threaded mount
- Response time 15ms / 0.015 s
- Design retro-reflective mode
- Thread size M30
- Degree of protection IP67 NEMA 6P
- Product series / family name Q series
- Ambient air temperature for operation -40...+70 °C
- Compliant with standard(s) cURus CCC cCSAus CE
- Min Op. Temp. (°C) -40
- Number of Pins 5
- Special Feature: Intrinsically Safe No
- Barrel Diameter (mm) 30
- IO Link No
- Sensing Beam Visible Red LED
- Sensing Mode (General) Retroreflective
- NEMA Rating NEMA 6P
- Sensing Beam Wavelength 680
- Max Sensing Distance (mm) 9000
- Power Supply/Supply Voltage 90-250 V ac
- Adjustments Potentiometer
- Feature: Timing (Hold/Delay) Yes
- Connection Integral QD
- Special Feature: Remote Teach No
- Delay at Power-up (ms) 100
- Indicator LEDs
- Outputs SPDT e/m Relay
- Operation Light/Dark Operate
- Output response time (ms) 15
- Opposed Mode Emitter/Receiver N/A
- Input/Output E/M Relay
- Quick Disconnect Type 7/8 in. (Mini)
- Lens Material Acrylic
- Feature: Hazardous Area No
- Housing Style Rectangular
- Sensing Mode (Detailed) Non-Polarized
- Repeatability (µs) 500
- Feature: Audible No
- Primary Housing Material Thermoplastic
- Max Op. Temp. (°C) 70
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Encapsulated No
- Power AC
- Special Feature: Water Detection No
- IP Rating IP67
- DeviceNet No
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q45VR2LVQ on Powermatic Associates is $143.00. Order now.
About the product
Banner Engineering Q45VR2LVQ is a photo-electric sensor designed for versatile applications, featuring a retro-reflective mode with potentiometer adjustment. It comes in a rectangular shape with a thermoplastic housing and an acrylic lens, ensuring durability. This sensor is equipped with a 5-pin 7/8" mini connector for easy connection and operates within an ambient air temperature range of -40 to +70°C. It supports a supply voltage of 90Vac-250Vac, making it suitable for various AC power supplies. The Q45VR2LVQ, part of the Q45VR2 series, offers a sensing distance of 8cm to 9m and utilizes visible red light with a wavelength of 680 nm for detection. It provides flexibility in operation with Light-ON and Dark-ON modes and includes a single digital output (SPDT relay contact) with a response time of 15ms. This sensor is designed for M30 threaded mount installation and boasts an IP67 NEMA 6P degree of protection, ensuring resilience in challenging environments.
