Q25SN6R
Banner
Product Lifecycle: Active

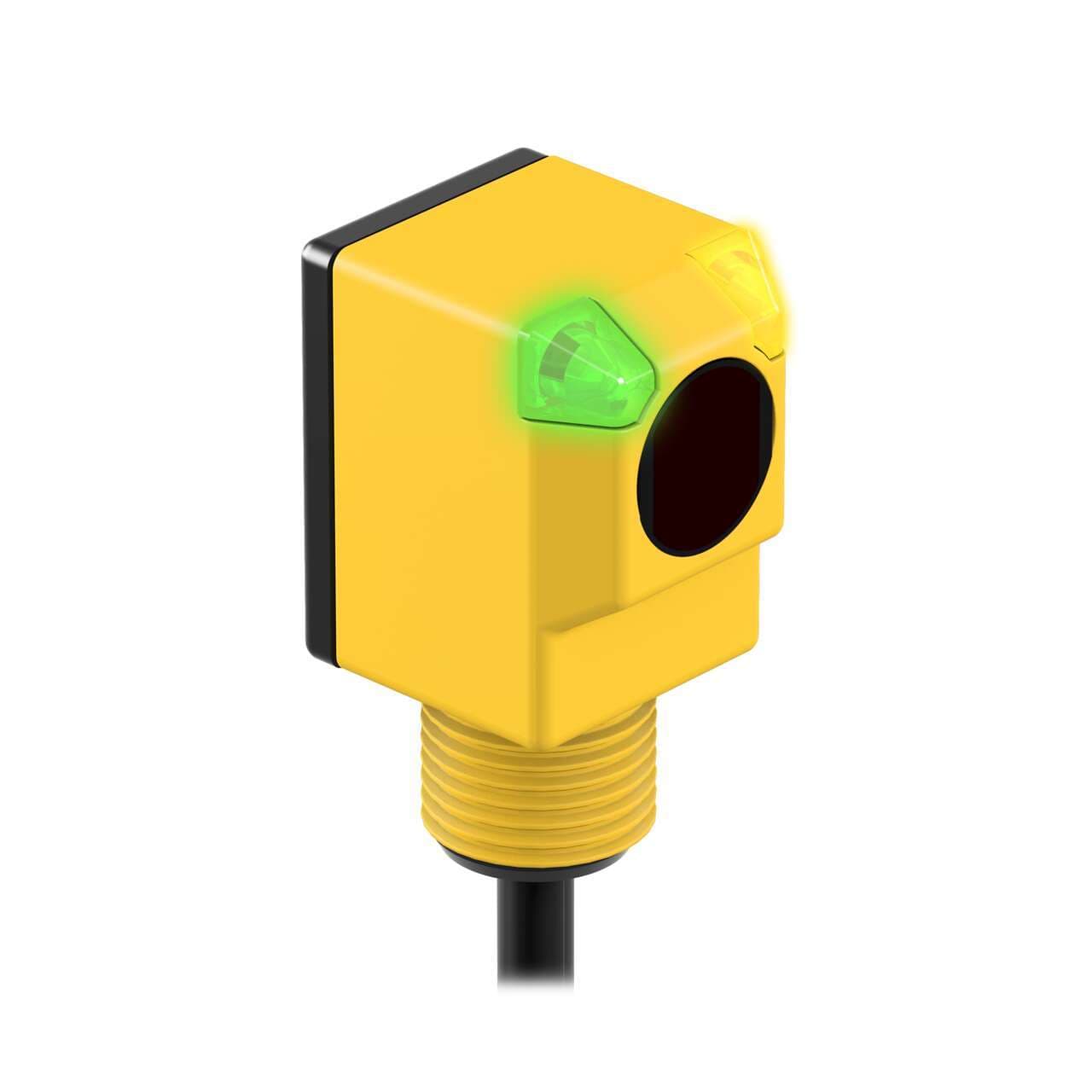

Banner Engineering Q25SN6R is a photo-electric sensor designed for through-beam system applications, functioning as the receiver component within an opposed mode setup. It features an M18 threaded mount for secure installation and is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads for convenient connection. This sensor operates within an ambient air temperature range of -40 to +70°C and is housed in a thermoplastic material with a polycarbonate lens, ensuring durability. The Q25SN6R, part of the Q25 DC series, offers a sensing distance of up to 20 meters and utilizes infrared light with a wavelength of 950 nm for detection. It supports both Light-ON and Dark-ON operating modes and provides a digital output through an NPN transistor, which is complementary NO/NC. The device requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values, and boasts a quick response time of 3ms. It is designed to meet IP69K and NEMA 6P protection standards, ensuring high levels of protection against ingress.
![Q25SN6R](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2F50bfcfd6-9397-470b-b613-9309998df103.jpeg&w=3840&q=75)
Banner Engineering Q25SN6R is a photo-electric sensor designed for through-beam system applications, functioning as the receiver component within an opposed mode setup. It features an M18 threaded mount for secure installation and is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads for convenient connection. This sensor operates within an ambient air temperature range of -40 to +70°C and is housed in a thermoplastic material with a polycarbonate lens, ensuring durability. The Q25SN6R, part of the Q25 DC series, offers a sensing distance of up to 20 meters and utilizes infrared light with a wavelength of 950 nm for detection. It supports both Light-ON and Dark-ON operating modes and provides a digital output through an NPN transistor, which is complementary NO/NC. The device requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values, and boasts a quick response time of 3ms. It is designed to meet IP69K and NEMA 6P protection standards, ensuring high levels of protection against ingress.
Product details
- Feature: Hazardous AreaNo
- Feature: AudibleNo
- DeviceNetNo
- Feature: Health/ Marginal Signal OutputYes
- Feature: Chemical ResistantYes
- IO LinkNo
- Feature: EncapsulatedYes
- Feature: Ecolab CertifiedYes
- Feature: Timing (Hold/Delay)No
- Feature: Washdown RatedYes
- AdjustmentsN/A
- Opposed Mode Emitter/ReceiverReceiver
- Barrel Diameter (mm)18
- Repeatability (µs)375
- IndicatorLEDs
- Delay at Power-up (ms)100
- Special Feature: Water DetectionNo
- Max Op. Relative Humidity [%]90% @ 50°C
- Special Feature: Remote TeachNo
- Lens MaterialPolycarbonate
- NEMA RatingNEMA 6P
- Special Feature: Intrinsically SafeNo
- IP RatingIP69
- OperationLight/Dark Operate
- Number of Pins4
- Output response time (ms)3 ON/1.5 OFF
- Max Op. Temp. (°C)70
- Min Op. Temp. (°C)-40
- ConnectionCable
- Quick Disconnect TypeNo QD
- Power Supply/Supply Voltage10-30 V dc
- OutputsNPN
- Max Sensing Distance (mm)20000
- Input/OutputDiscrete
- Housing StyleRectangular
- Primary Housing MaterialThermoplastic
- Sensing Mode (Detailed)Receiver
- Sensing Mode (General)Opposed
- Sensing BeamInfrared LED
- PowerDC
- Cable Length (m)2
- Light ColorInfrared (IR)
- Connection typePre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Degree of protectionIP67 NEMA 6P
- Compliant with standard(s)cULus cCSAus CE
- Main functionSensor (Photo-electric)
- FunctionsPhoto-electric sensor receiver green LED (power ON) amber LED (output state)
- Operating modeLight-ON Dark-ON
- Ambient air temperature for operation-40...+70 °C
- Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Sensing distance20m
- Thread sizeM18
- Materialthermoplastic housing Polycarbonate lns.
- Product series / family nameEZ-BEAM series
- ShapeRectangular
- Digital outputs1 x digital output (NPN transistor)
- Primary brandBanner Engineering
- Sub-range nameQ25 DC series
- Designthrough-beam system / opposed mode
- Wavelength950 nm
- Response time3ms / 0.003 s
- Order code / Manufacturer SKU31927
