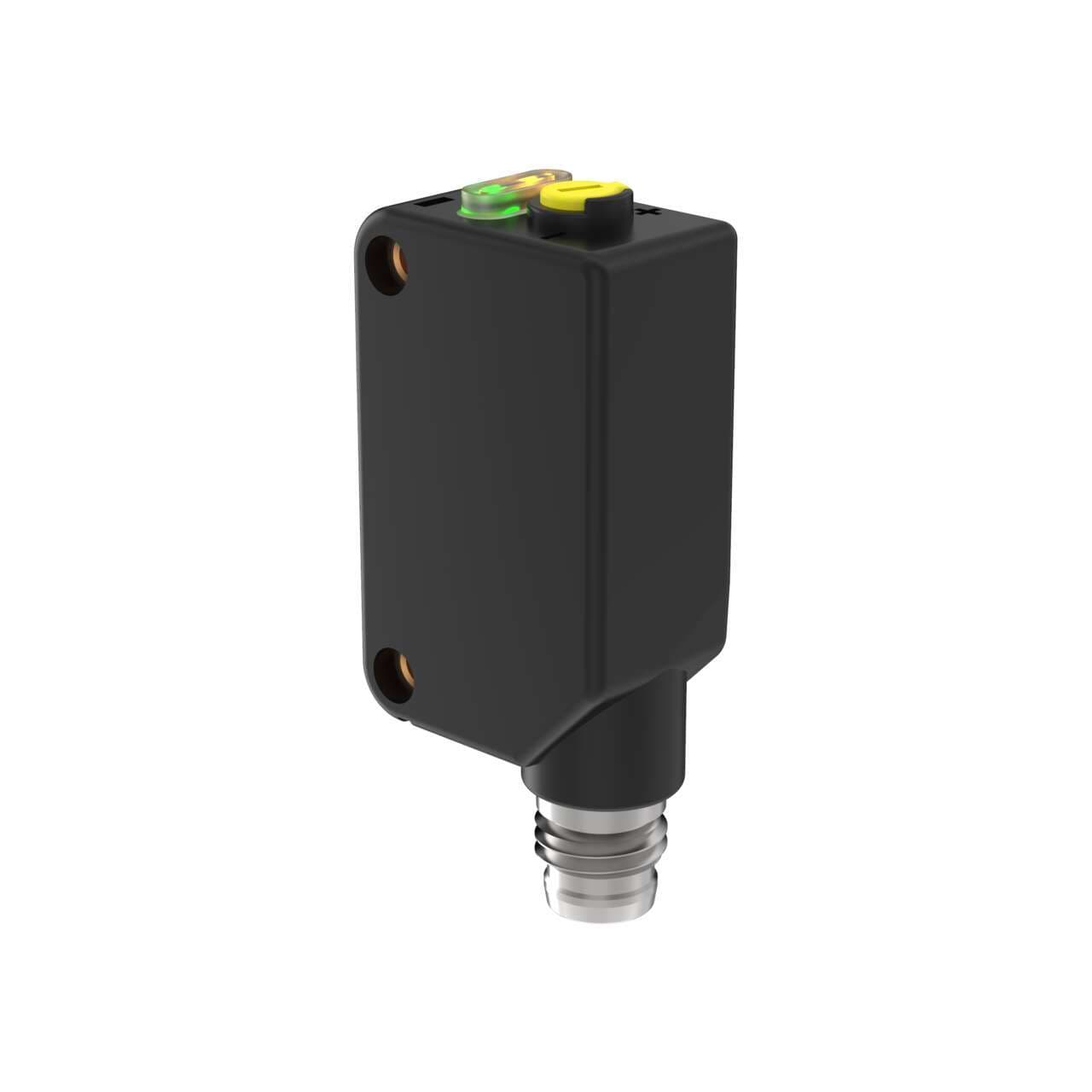

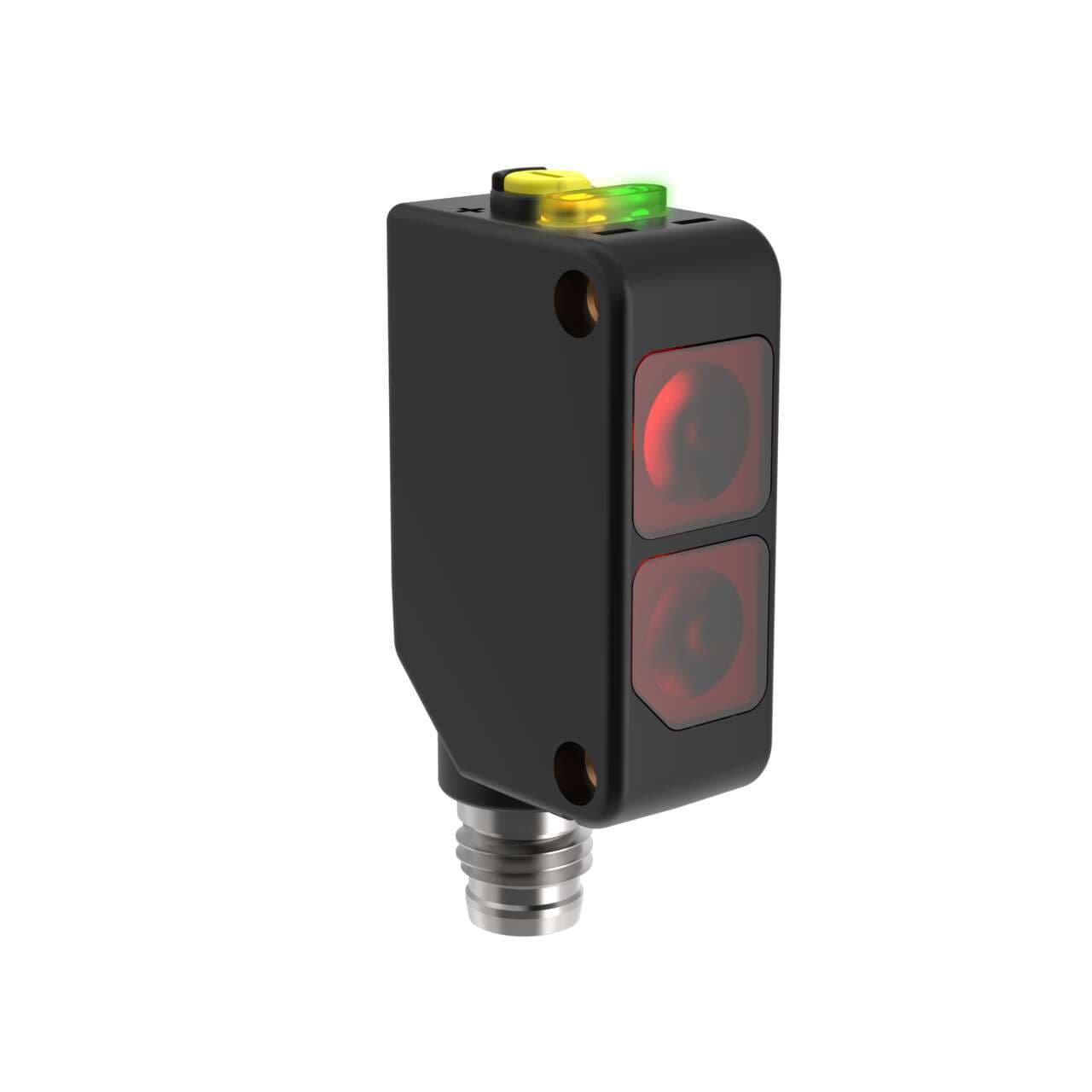

Q20PDQ7 Banner Proximity Sensors
Part#:Q20PDQ7
Alt. Part#:77758
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q20 Series: Diffuse (Red); Range: 250 mm; Input 10-30 V dc; Output: Complementary Solid-State PNP; M8 Integral QD
Product Details
- Weight 22.6796 g
- Country Of Origin MX
- Product series / family name WORLD-BEAM series
- Sub-range name Q20 series
- Design diffuse mode
- Operating mode Light-ON Dark-ON
- Ambient air temperature for operation -20...+60 °C
- Order code / Manufacturer SKU 77758
- Main function Sensor (Photo-electric)
- Light Color Visible red
- Degree of protection IP67 NEMA 6
- Primary brand Banner Engineering
- Functions Photo-electric sensor green LED (power ON) amber LED (black (LO) wire conducting) potentiometer adjustment
- Sensing distance 250mm
- Digital outputs 1 x digital output (PNP transistor)
- Compliant with standard(s) cURus CE
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Wavelength 624 nm
- Connection type Pre-equipped with 4-pin Pico-style M8 connector
- Response time 0.8ms / 0.0008 s
- Shape Rectangular
- Material thermoplastic housing
- Sensing Beam Visible Red LED
- Connection Integral QD
- Lens Material Acrylic
- NEMA Rating NEMA 6
- IO Link No
- Feature: Chemical Resistant No
- Input/Output Discrete
- Special Feature: Intrinsically Safe No
- Barrel Diameter (mm) N/A
- Housing Style Rectangular
- Min Op. Temp. (°C) -20
- Sensing Beam Wavelength 655
- Indicator LEDs
- EPLAN Cabinet Installable No
- Max Sensing Distance (mm) 250
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Opposed Mode Emitter/Receiver N/A
- Power DC
- Quick Disconnect Type M8 (Pico)
- Number of Pins 4
- IP Rating IP67
- Feature: Audible No
- Sensing Mode (Detailed) Diffuse
- Special Feature: Remote Teach No
- Repeatability (µs) 155
- Feature: Hazardous Area No
- Outputs PNP
- Operation Light/Dark Operate
- Adjustments Potentiometer
- DeviceNet No
- Sensing Mode (General) Proximity
- Delay at Power-up (ms) 100
- Output response time (ms) 0.8
- Feature: Encapsulated No
- Primary Housing Material Thermoplastic
- Max Op. Temp. (°C) 60
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Timing (Hold/Delay) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20PDQ7 on Powermatic Associates is $100.00. Order now.
About the product
Banner Engineering Q20PDQ7 is a photo-electric sensor from the Q20 series, designed with a diffuse mode potentiometer adjustment. It operates within an ambient air temperature range of -20 to +60 °C and is equipped with a 4-pin Pico-style M8 connector for connectivity. This sensor features a rectangular shape with a thermoplastic housing, ensuring durability. It offers a sensing distance of 250mm and utilizes visible red light with a wavelength of 624 nm. The Q20PDQ7 operates in both Light-ON and Dark-ON modes, catering to diverse application needs. It is protected to IP67 NEMA 6 standards, making it suitable for challenging environments. The sensor is powered by a DC supply voltage ranging from 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. It includes 1 x digital output (PNP transistor) and boasts a rapid response time of 0.8ms / 0.0008 s.
