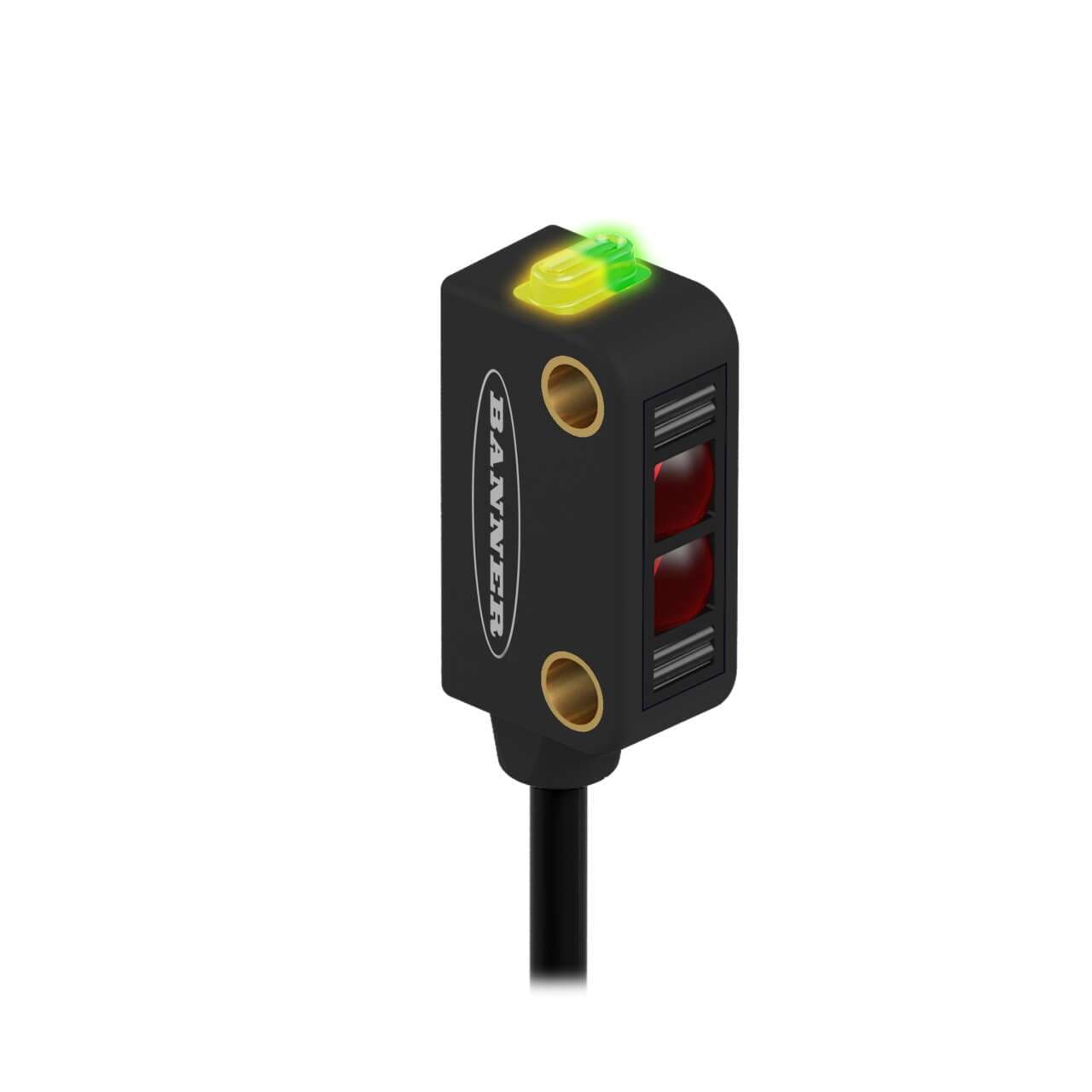

Q12AN6RQ3 Banner Proximity Sensors
Part#:Q12AN6RQ3
Alt. Part#:77097
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q12 Series: Receiver; Range: 2 m; Input: 10-30 V dc; Output: LO; 1 NPN; 150 mm (6 in) 3-pin M8 Pigtail QD
Product Details
- Weight 22.6796 g
- Country Of Origin MX
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Response time 1.3ms / 0.0013 s
- Order code / Manufacturer SKU 77097
- Sensing distance 2m
- Operating mode Light-ON
- Ambient air temperature for operation -20...+55 °C
- Product series / family name WORLD-BEAM series
- Functions Photo-electric sensor receiver green LED (power ON) yellow LED (signal)
- Light Color Visible red
- Degree of protection IP67
- Main function Sensor (Photo-electric)
- Sub-range name Q12 series
- Design through-beam system / opposed mode
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 3-pin Pico-style M8 connector
- Material thermoplastic housing Polycarbonate lns.
- Wavelength 640 nm
- Digital outputs 1 x digital output (NPN transistor)
- Compliant with standard(s) cURus CE
- Max Sensing Distance (mm) 2000
- Primary Housing Material Thermoplastic
- Input/Output Discrete
- Sensing Mode (General) Opposed
- Power DC
- Sensing Beam Visible Red LED
- Housing Style Rectangular
- Sensing Mode (Detailed) Receiver
- Cable Length (m) 0.15
- Power Supply/Supply Voltage 10-30 V dc
- Min Op. Temp. (°C) -20
- Repeatability (µs) 175
- Feature: Encapsulated No
- Max Op. Temp. (°C) 55
- IP Rating IP67
- Feature: Chemical Resistant No
- Special Feature: Water Detection No
- Adjustments N/A
- IO Link No
- Special Feature: Intrinsically Safe No
- Lens Material Polycarbonate
- Feature: Hazardous Area No
- Delay at Power-up (ms) 120
- Feature: Timing (Hold/Delay) No
- Operation Light Operate
- Indicator LEDs
- Connection Pigtail QD
- Quick Disconnect Type M8 (Pico)
- Sensing Beam Wavelength 640
- Number of Pins 3
- Opposed Mode Emitter/Receiver Receiver
- Feature: Audible No
- Outputs NPN
- Special Feature: Remote Teach No
- Barrel Diameter (mm) N/A
- Output response time (ms) 1.3 ON/0.7 OFF
- Max Op. Relative Humidity [%] 95% @ 50°C
- DeviceNet No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q12AN6RQ3 on Powermatic Associates is $85.00. Order now.
About the product
Banner Engineering Q12AN6RQ3 is a photo-electric sensor designed for through-beam system applications, functioning as a receiver alone within the Q12 series. It operates within an ambient air temperature range of -20 to +55 °C and is housed in a thermoplastic with a polycarbonate lens. This sensor is pre-wired with a 6-inch (150mm) pigtail that terminates with a 3-pin Pico-style M8 connector. It offers a sensing distance of 2 meters and emits visible red light with a wavelength of 640 nm. The Q12AN6RQ3 operates in Light-ON mode, has a supply voltage range of 10Vdc to 30Vdc (with 12Vdc / 24Vdc nominal), and features one digital output (NPN transistor) with a response time of 1.3ms (0.0013 seconds). It is designed with an IP67 degree of protection, ensuring durability in various environmental conditions.
