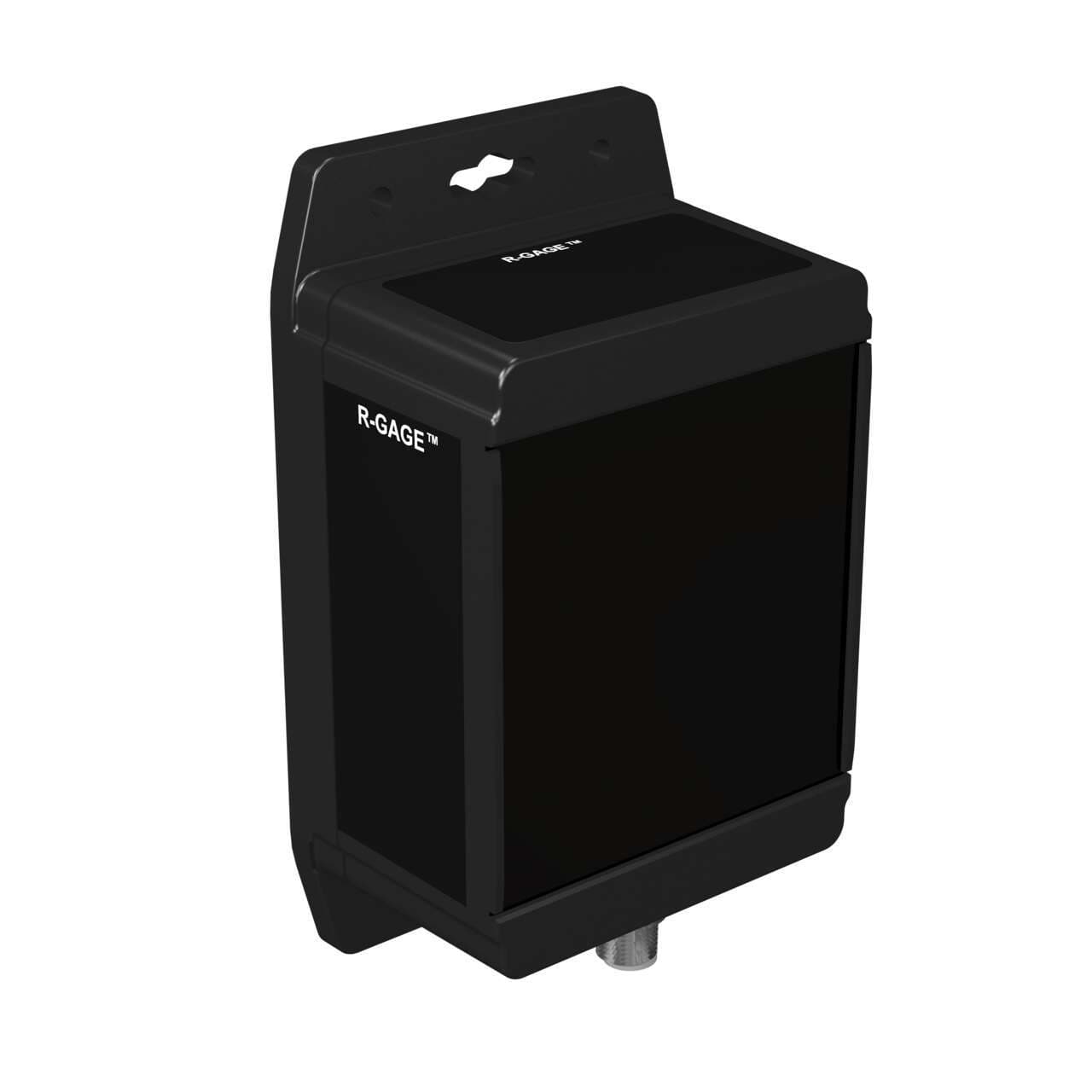

Q120RA-KR-AFQ Banner Optical Sensors

Name: Q120RA-KR-AFQ
Brand: Banner
Price: 1905 USD
Availability: BackOrder

Part#:Q120RA-KR-AFQ

Alt. Part#:93817

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

R-GAGE Series Radar Sensor; Bipolar Outputs; Range: 2-12 m Single Zone; Response Speed: 40 ms; 5-pin M12 Integral QD

Product Details

Weight
725.7472 g
Country Of Origin
US
Cert: Korea
Yes
1-wire Serial Interface
No
Profibus
No
Wireless
No
SSI
No
RS-422
No
RS-485
No
RS-232
No
PROFINET
No
IO Link
No
Common Ethernet Protocol
No
Feature: Timing (Hold/Delay)
No
Feature: Chemical Resistant
No
Power/Current Consumption (exclusive of load)
< 100 mA
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Minimum Response Time (ms)
15
Min Operating Temperature (°C)
-40
Max Operating Temperature (°C)
65

Discrete (Switched) Outputs

Bipolar (NPN & PNP)

IP Rating

IP67

Output Protection

Protected against short circuit

Delay at Power-up (ms)

2000

Adjustments

Dip Switch

Max Discrete (Switched) Output (mA)

150

Number of Pins

Power Supply

12-24 V dc

Minimum Sensing Distance (mm)

2000

Max Sensing Distance (mm)

12000

Radar Beam Pattern (H x V °)

24 x 50

Quick Disconnect Type

M12 (Euro)

Connection

Integral QD

Indicator

LED(s)

Input/Output

Discrete

Primary Housing Material

ABS/Polycarbonate

Device Type

Sensor

Sensing Mode (Detailed)

Time of Flight

Housing Style

Rectangular

Sensing Mode (General)

Proximity

PC Configurable

Max Measurement Range

>5 m - <=20 m

Operating Frequency

24 GHz

Power

Sensing Beam

Radar

Sub-range name

Q120RA-AF

Supply voltage (DC)

12Vdc-24Vdc

Operating mode

NO (Normally Open) NC (Normally Closed)

Product series / family name

R-GAGE series

Sensing distance

2...12m

Degree of protection

IP67

Equivalent to

Q120RAKRAFQ

Main function

Sensor (Radar)

Design

time-of-flight system Korea Telecom-approved

Primary brand

Banner Engineering

Functions

Narrow-beam adjustable-field radar sensor green LED (power ON) yellow LED (output state)

Shape

Rectangular

Ambient air temperature for operation

-40...+65 °C

Connection type

Pre-equipped with 5-pin Euro-style M12 connector

Material

ABS / polycarbonate housing

Order code / Manufacturer SKU

93817

Digital outputs

1 x digital output (PNP/NPN transistor)

Compliant with standard(s)

cULus CE

Protection functions

Reverse polarity Short-circuit

Emission frequency

24.050GHz...24.250GHz (ISM band)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q120RA-KR-AFQ on Powermatic Associates is $1,905.00. Order now.

About the product

Banner Engineering Q120RA-KR-AFQ is a narrow-beam adjustable-field radar sensor designed with a time-of-flight system and approved by Korea Telecom. It operates within an ambient air temperature range of -40 to +65 °C and is housed in an ABS / Polycarbonate (PC) material, ensuring durability in various environments. This sensor is equipped with a 5-pin Euro-style M12 connector for connectivity and falls within the Q120RA-AF series. It offers a degree of protection rated at IP67, making it suitable for applications requiring resistance to dust and water ingress. The supply voltage required for operation is between 12Vdc and 24Vdc. Its rectangular shape is designed for straightforward installation, and it operates on a 24.050GHz to 24.250GHz (ISM band) transmission frequency. The sensing distance ranges from 2 to 12 meters, and it features an operating mode that can be set to either NO (Normally Open) or NC (Normally Closed). Additionally, it includes 1 x digital output (PNP/NPN transistor) and is equipped with protection functions against reverse polarity and short-circuit incidents.
