PVL500P

Banner

Product Lifecycle: Active

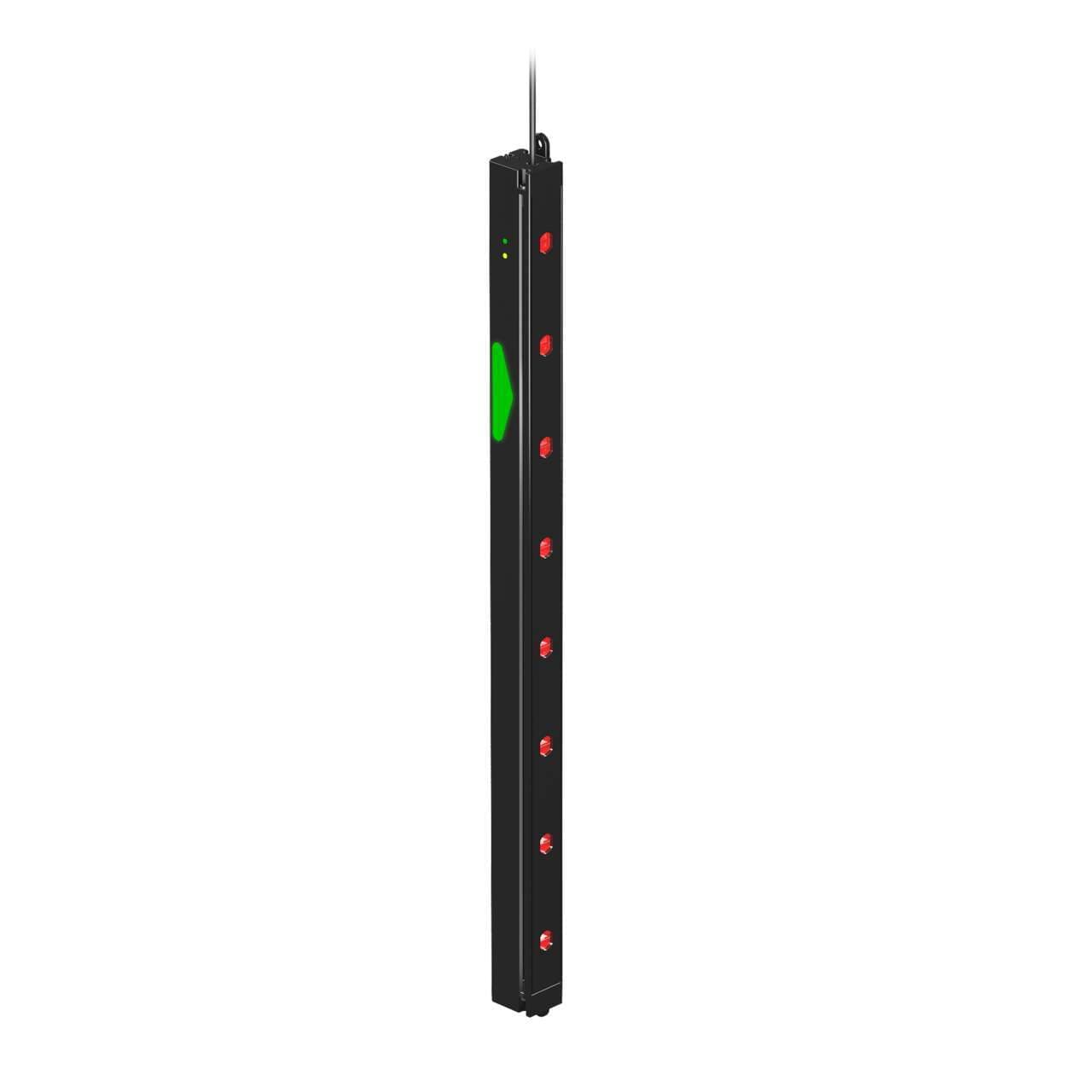

Banner Engineering PVL500P is a photo-electric array sensor designed for retro-reflective mode operation. It features a 500mm array length and operates within an ambient air temperature of up to +50°C. This sensor is pre-wired with a 2m pigtail that terminates with a 5-pin M12 connector, ensuring easy integration into existing systems. The PVL500P is housed in black anodized aluminum with a PVC connector, offering a degree of protection rated at IP50. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. The rectangular-shaped sensor has a sensing distance of 1.5m and utilizes green and red light with wavelengths of 525 nm and 625 nm, respectively. The beam spacing or pitch is 70mm, and it features a single digital output (PNP transistor) in a Normally Open (NO) operating mode.

PVL500P

Banner Engineering PVL500P is a photo-electric array sensor designed for retro-reflective mode operation. It features a 500mm array length and operates within an ambient air temperature of up to +50°C. This sensor is pre-wired with a 2m pigtail that terminates with a 5-pin M12 connector, ensuring easy integration into existing systems. The PVL500P is housed in black anodized aluminum with a PVC connector, offering a degree of protection rated at IP50. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. The rectangular-shaped sensor has a sensing distance of 1.5m and utilizes green and red light with wavelengths of 525 nm and 625 nm, respectively. The beam spacing or pitch is 70mm, and it features a single digital output (PNP transistor) in a Normally Open (NO) operating mode.

  • Job LightGreen
  • Pro-Editor Compatible (Discrete)No
  • WirelessNo
  • Multi-Color DeviceSingle Color On
  • Modbus RTUNo
  • Feature: Chemical ResistantNo
  • Feature: AudibleNo
  • Sensing Resolution (mm)70
  • Feature: Hazardous AreaNo
  • Primary Window MaterialAcrylic Clear
  • Button OperationMomentary
  • Storage Temp (°C)-40 to 70
  • Array Length (mm)500
  • Number of Beams8
  • Beam Spacing (mm)70.0
  • Max Op. Temperature (°C)50
  • Max Output Response Time (ms)2
  • Sensing Array Length (mm)500
  • Output TypePNP
  • Supply Voltage12-30 V dc
  • Input TypePNP
  • OperationNormally Open
  • Number of Input Pins/Conductors5
  • Mis-Pick LightRed
  • Max Current Color (mA)220
  • Color Option 2Red
  • Animation Option 1Solid On
  • Product Size (mm)Other
  • Animation Option 2Flashing Only
  • Color Input ControlIndividual (One wire/color, same number of colors as input wires)
  • Color Option 1Green
  • Number of Colors / Segments2
  • Color TechnologyStandard LED
  • Mounting ThreadNo Thread
  • Housing StyleFlat Mount - Array
  • Activation FunctionOptical
  • Sensing Mode (General)Retroreflective
  • IO LinkNo
  • Environmental RatingIP50
  • Maximum Sensing Distance (mm)1500
  • ConnectionCable
  • ActuationYes
  • Primary Housing MaterialBlack Anodized Aluminum
  • Sensing Mode (Detailed)Non-Polarized
  • Power SourceDC
  • PowerDC
  • Mounting modeSurface
  • Primary brandBanner Engineering
  • FunctionsArray sensor for error-proofing of bin handpicking operations - retroreflective sensing only
  • Degree of protectionIP50
  • Technology used in componentLED
  • Length (m)(cable) 2 m
  • Length (mm)(array) 500 mm
  • Product series / family namePVL
  • Frame colorBlack
  • Connection typePre-wired bare end flying leads
  • Compliant with standard(s)CE
  • Net Height (mm)(sensing height) 19.7" / 500 mm
  • Maximum temperature50 °C
  • Main functionSensor (Array)
  • Sensing distance1.5m / 1500 mm
  • Digital outputs1 x digital output (PNP transistor)
  • Ambient air temperature for operation0...+50 °C
  • ContentsReflective tape
  • Distance(beam spacing) 70mm
  • Supply voltage (DC)12-30Vdc (12Vdc-24Vdc nom.)
  • MaterialAcrylic Clear (window) Aluminum (housing)
  • Light ColorGreen Red
  • Visual position indicatorgreen LED (power ON) yellow LED (output state)
  • Supply voltage(DC) 12-30 V
