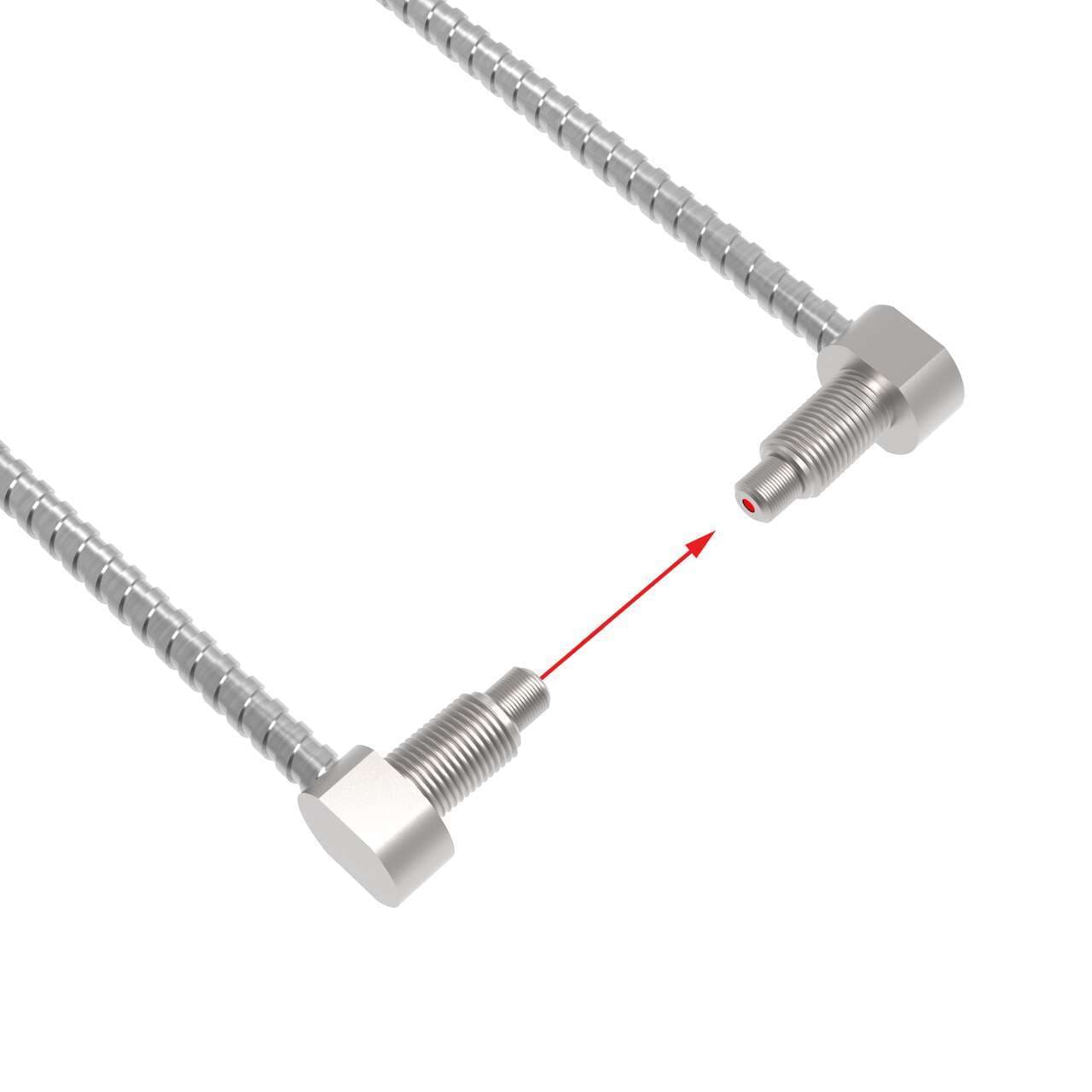

PIAT43TSL5TA-VL Banner Through Beam Sensors
Part#:PIAT43TSL5TA-VL
Alt. Part#:93950
Manufacturer:Banner
Category:Through Beam Sensors
Product Lifecycle:Active
Product description
Plastic Fiber, Opposed Mode; Core Dia.: 1 mm; Fiber Length 1 m; Tight Angle, Thread M4; Stainless Monocoil; 25 mm Bend Radius; Vantage Line
Product Details
- Weight 45.3592 g
- Country Of Origin TW
- Max Distance: DF-G3 (mm) 5600
- Max Distance: DF-G1 (mm) 721
- Termination Terminated
- Application: Liquid Level No
- Minimum Bend Radius (mm) 25
- Fiber Length (m) 1
- Fiber Sensing End Size - Mounting Area M4
- Measured Max Distance (mm) 721
- Tariff Fiber Meters (fbm) 2
- Termination Type Plastic Fiber Sensors
- Max Distance: DF-G2 (mm) 1167
- Feature: Chemical Resistant No
- Application: Vacuum Feed Through None
- Minimum Repeat Bending Endurance 1000
- Feature: Small Object Detection No
- Feature: Extended Range No
- Integrated Lens No
- Core Diameter (mm) 1
- Flex Relief Yes
- Retractile No
- Sensing End Segment 3 Thread
- Max Temp ( °C) 70
- Sensing End Segment 2 Thread
- Sensing End Segment 1 Angle
- Fiber Sensing End Size M2.6
- Sensing End Material (Specific) Stainless Steel
- Fiber Sheathing Material (Jacket) Stainless Steel Monocoil
- Sensing Mode (General) Opposed
- Fiber Sensing End Tip Thread
- Housing Style Round
- Sensing Mode (Detailed) Reflective
- Quantity Included 2
- Fiber Optic Type Plastic
- Beam Exit Right Angle
- Max Range: DF-G3 (mm) >5m
- Main function Fiber sensor
- Shape Cylindrical (threaded) end tip
- Primary brand Banner Engineering
- Design through-beam system / opposed mode pair of individual fibers Side / right-angled sensing
- Material Plastic fiber Plastic fiber stainless flexible fiber sheath tub.
- Functions Fiber optic sensor
- Sub-range name Plastic fiber - Vantage Line
- Diameter 1mm fiber core
- Order code / Manufacturer SKU 93950
- Product series / family name Fiber sensors
- Thread size M4
- Equivalent to PIAT43TSL5TAVL
- Length 3ft / 1m
- Ambient air temperature for operation +70 °C
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIAT43TSL5TA-VL on Powermatic Associates is $171.00. Order now.
About the product
Banner Engineering PIAT43TSL5TA-VL is a fiber optic sensor designed for through-beam system applications, functioning as an opposed mode pair of individual fibers with side, right-angled sensing. It features a 1mm fiber core diameter and falls under the Plastic fiber series. The sensor has a cylindrical (threaded) end tip shape, with the sensing end made of stainless steel and the fiber sheathed in Steelskin for enhanced durability. It is designed to operate in ambient air temperatures up to +70°C. The total length of the fiber is 3 feet (approximately 1 meter).
