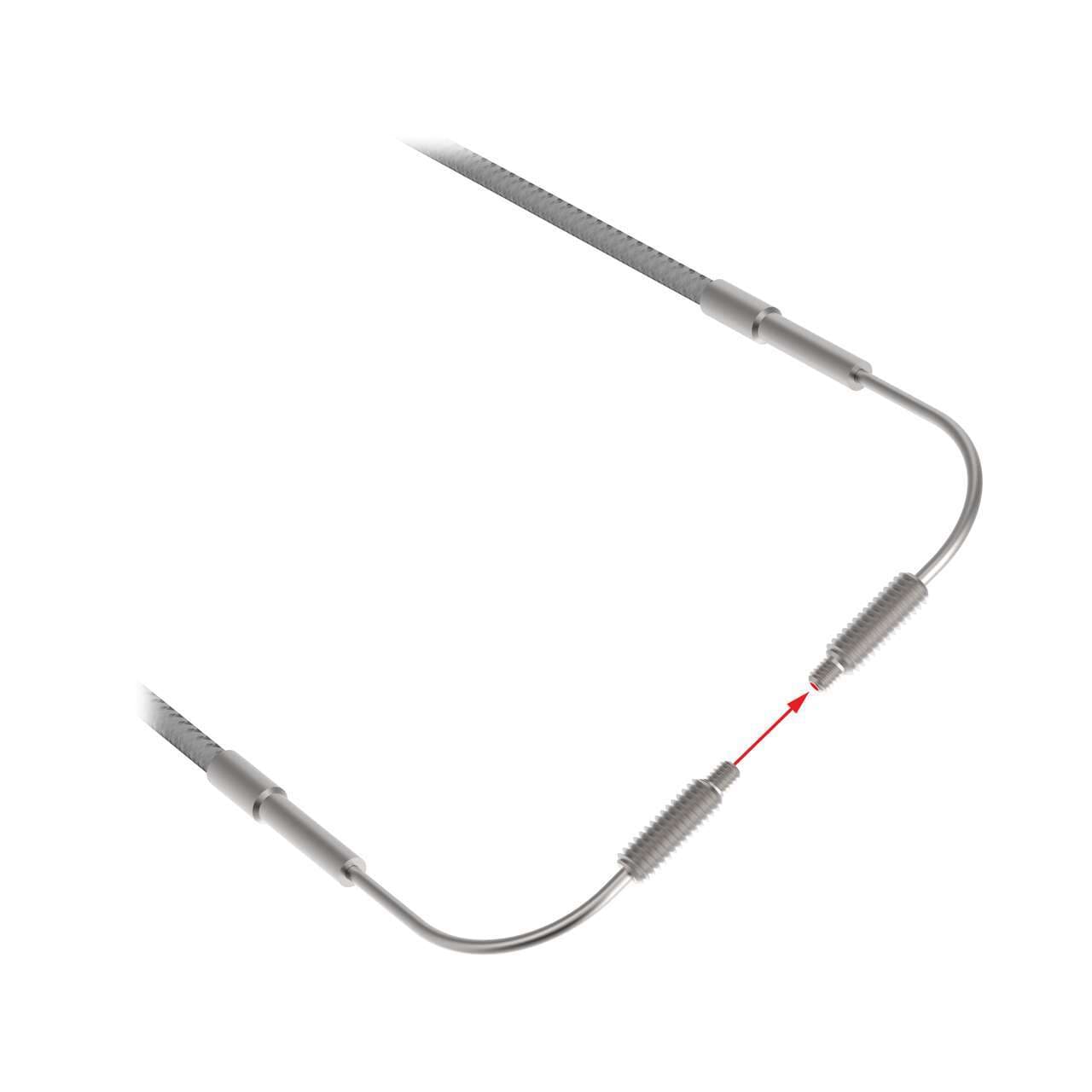

PIAT43TMB5 Banner Through Beam Sensors

Product Details

• Weight
  54.43104 g
• Country Of Origin
  JP
• Max Distance: DF-G1 (mm)
  No Data
• Max Distance: DF-G2 (mm)
  No Data
• Max Distance: DF-G3 (mm)
  No Data
• Fiber Sensing End Size - Mounting Area
  M4
• Measured Max Distance (mm)
  No Data
• Termination Type
  Plastic Fiber Sensors
• Tariff Fiber Meters (fbm)
  2
• Feature: Small Object Detection
  No
• Application: Vacuum Feed Through
  None
• Application: Liquid Level
  No
• Feature: Extended Range
  No
• Feature: Chemical Resistant
  No
• Max Temp ( °C)
  70
• Integrated Lens
  No
• Minimum Repeat Bending Endurance
  1000
• Termination
  Terminated
• Minimum Bend Radius (mm)
  12
• Flex Relief
  No
Retractile
No
Core Diameter (mm)
1
Sensing End Segment 3
Thread
Sensing End Segment 2
Thread
Sensing End Segment 1
Angle
Fiber Sensing End Size
M2.5
Fiber Length (m)
1
Fiber Sensing End Tip
Thread
Beam Exit
Right Angle
Sensing Mode (Detailed)
Reflective
Sensing End Material (Specific)
Stainless Steel
Fiber Sheathing Material (Jacket)
STEELSKIN
Sensing Mode (General)
Opposed
Fiber Optic Type
Plastic
Quantity Included
2
Housing Style
Round
Diameter
1mm fiber core
Product series / family name
Fiber sensors
Design
through-beam system / opposed mode pair of individual fibers Side / right-angled sensing
Material
Stainless steel sensing end Plastic fiber steelskin (fiber sheath)
Main function
Fiber sensor
Length
3ft / 1m
Sub-range name
Plastic fiber series
Order code / Manufacturer SKU
70864
Primary brand
Banner Engineering
Functions
Fiber optic sensor
Shape
Cylindrical (threaded) end tip
Thread size
M4
Ambient air temperature for operation
+70 °C
