PIAT410TMB5MTA Banner Through Beam Sensors

Name: PIAT410TMB5MTA
Brand: Banner
Price: 545 USD
Availability: BackOrder

Part#:PIAT410TMB5MTA

Alt. Part#:73498

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

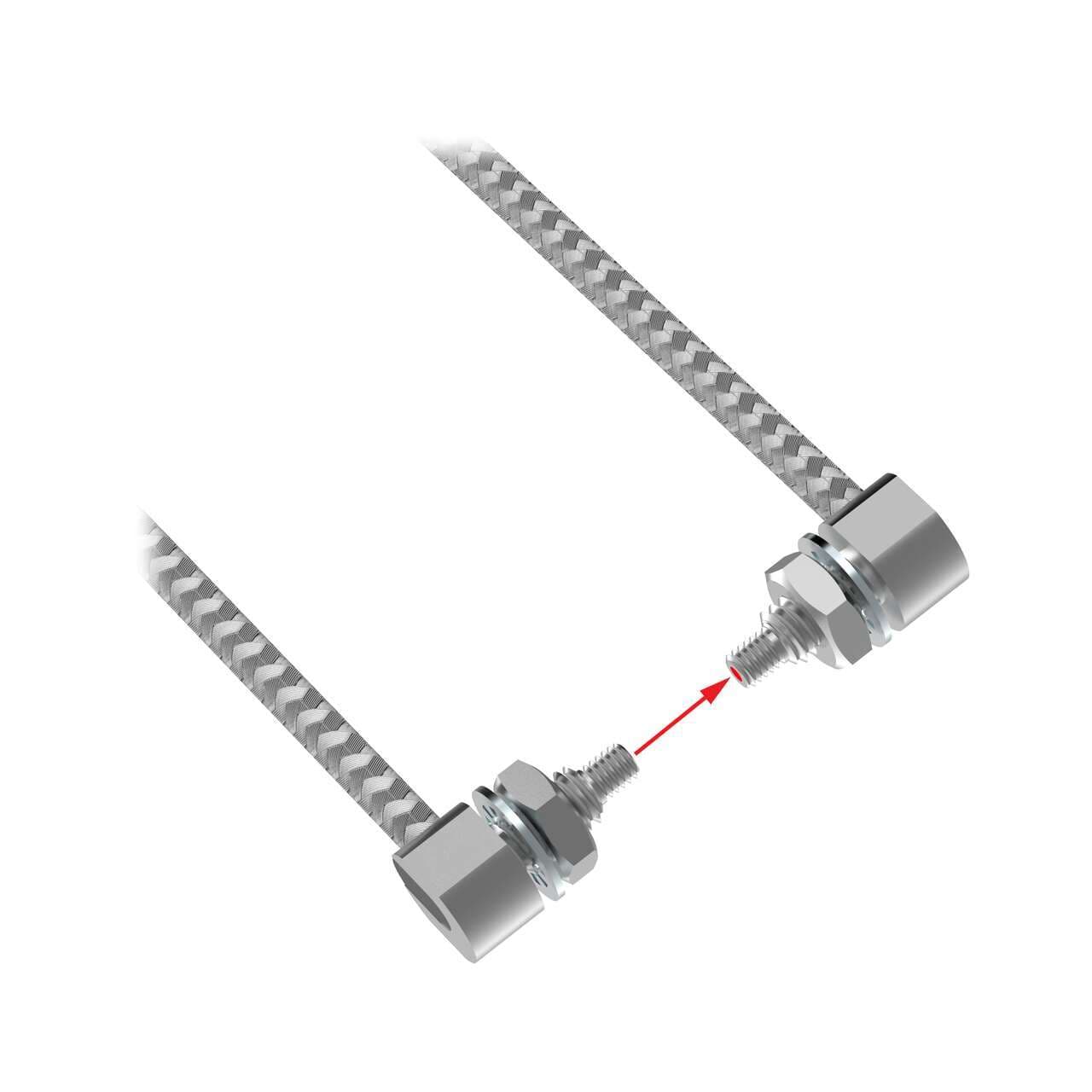

Plastic Fiber, Opposed Mode; Core Dia.: 1 mm; Fiber Length 3 m; Angle, Thread; SteelSkin, TMB5 Termination

Product Details

Weight
136.0776 g
Country Of Origin
JP
Fiber Sensing End Size - Mounting Area
M4
Tariff Fiber Meters (fbm)
6.1
Max Distance: DF-G2 (mm)
No Data
Application: Vacuum Feed Through
None
Minimum Repeat Bending Endurance
1000
Max Distance: DF-G1 (mm)
No Data
Measured Max Distance (mm)
No Data
Max Distance: DF-G3 (mm)
No Data
Termination Type
Plastic Fiber Sensors
Feature: Small Object Detection
No
Application: Liquid Level
No
Feature: Chemical Resistant
No
Feature: Extended Range
No
Integrated Lens
No
Termination
Terminated
Max Temp ( °C)
70
Minimum Bend Radius (mm)
12
Core Diameter (mm)
1

Flex Relief

Sensing End Segment 2

Thread

Retractile

Sensing End Segment 3

Thread

Sensing End Segment 1

Angle

Fiber Sensing End Size

M2.5

Fiber Length (m)

3.048

Quantity Included

Fiber Sensing End Tip

Thread

Beam Exit

Right Angle

Fiber Sheathing Material (Jacket)

STEELSKIN

Sensing Mode (General)

Opposed

Sensing End Material (Specific)

Stainless Steel

Fiber Optic Type

Plastic

Sensing Mode (Detailed)

Reflective

Housing Style

Round

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIAT410TMB5MTA on Powermatic Associates is $545.00. Order now.

About the product

Banner Engineering PIAT410TMB5MTA is a fiber optic sensor designed for through-beam system applications, functioning as an opposed mode pair of individual fibers positioned side by side with right-angled sensing. It features a 1mm fiber core diameter and falls under the Plastic fiber series. The sensor has a cylindrical (threaded) end tip, with the sensing end made of stainless steel and the fiber sheathed in polyethylene (PE). It is capable of operating in ambient air temperatures up to +70°C and has a total length of 5 meters.

PIAT410TMB5MTA Related Documents

PIAT4 SERIES TERMINATED STEEL SKIN TIGHT ANGLE-1630955033188.pdf PIAT4 SERIES TERMINATED STEEL SKIN TIGHT ANGLE-1630955033149.stp
