PIAT43UHFTA-VL Banner Through Beam Sensors

Name: PIAT43UHFTA-VL
Brand: Banner
Price: 112 USD
Availability: BackOrder

Part#:PIAT43UHFTA-VL

Alt. Part#:93159

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

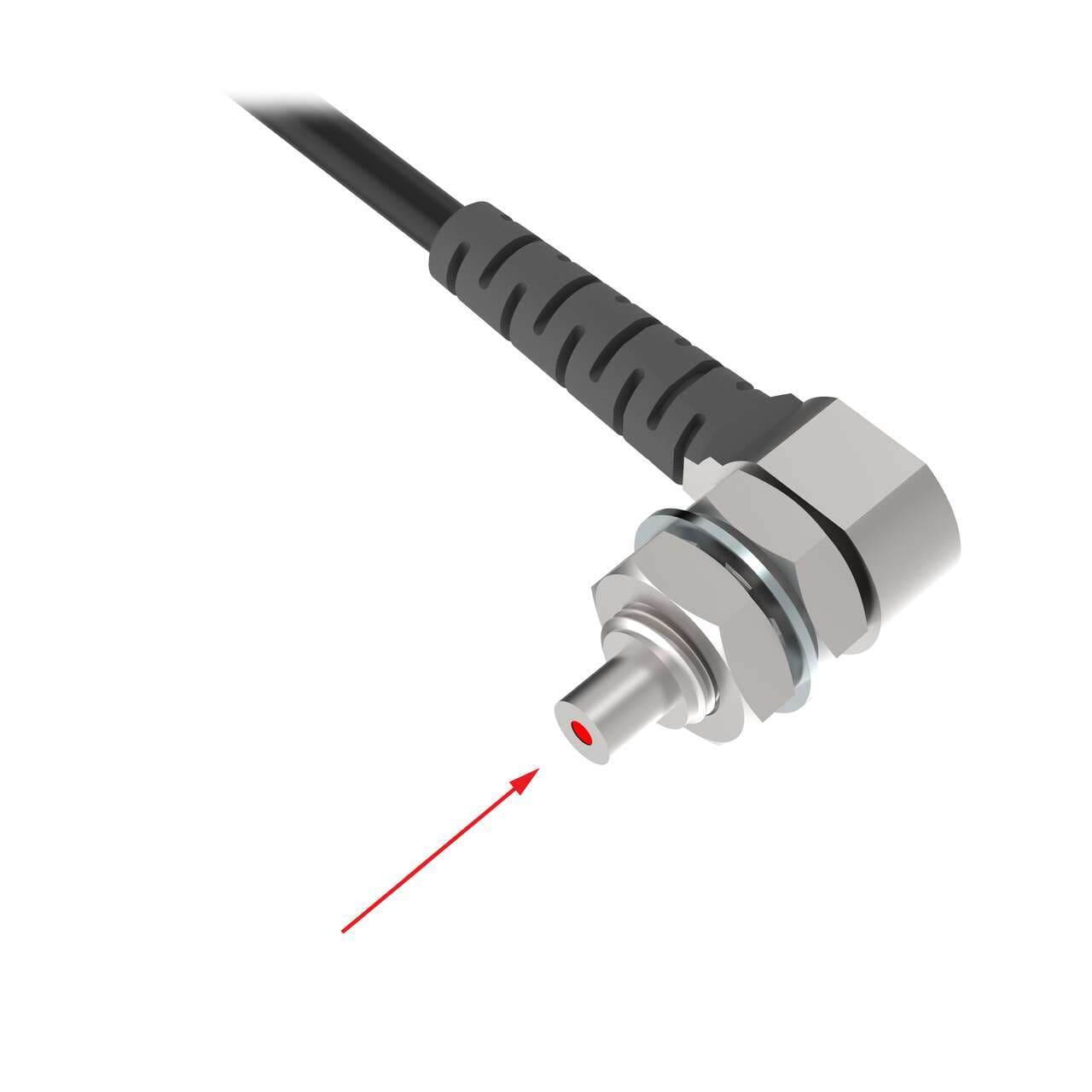

Plastic Fiber; Opposed; Core Dia.: 1 mm; Fiber Length 1 m; Tight Angle;Thread M4; High Flex 2 mm Bend Radius; Flex Relief; Free cut; Vantage Line

Product Details

Weight
22.6796 g
Country Of Origin
TW
Max Distance: DF-G2 (mm)
780
Fiber Sensing End Size - Mounting Area
M4
Max Distance: DF-G1 (mm)
482
Max Distance: DF-G3 (mm)
3743
Measured Max Distance (mm)
482
Termination Type
Plastic Fiber Sensors
Tariff Fiber Meters (fbm)
2
Application: Vacuum Feed Through
None
Application: Liquid Level
No
Feature: Extended Range
No
Max Temp ( °C)
70
Integrated Lens
No
Minimum Repeat Bending Endurance
1000
Feature: Small Object Detection
No
Feature: Chemical Resistant
No
Core Diameter (mm)
1
Minimum Bend Radius (mm)
2
Termination
Free Cut

Flex Relief

Yes

Retractile

Sensing End Segment 3

Thread

Sensing End Segment 2

Thread

Fiber Sensing End Size

M2.6

Sensing End Segment 1

Angle

Fiber Sensing End Tip

Thread

Fiber Length (m)

Sensing Mode (Detailed)

Reflective

Sensing End Material (Specific)

Stainless Steel

Fiber Sheathing Material (Jacket)

Polyethylene

Beam Exit

Right Angle

Fiber Optic Type

Plastic

Sensing Mode (General)

Opposed

Housing Style

Round

Quantity Included

Max Range: DF-G3 (mm)

>3m - <=5m

Product series / family name

Fiber sensors

Functions

Fiber optic sensor

Diameter

1mm fiber core

Ambient air temperature for operation

+70 °C

Primary brand

Banner Engineering

Design

through-beam system / opposed mode flex strain relief pair of individual fibers Side / right-angled sensing

Thread size

Order code / Manufacturer SKU

93159

Sub-range name

Plastic fiber - Vantage Line

Length

3ft / 1m

Equivalent to

PIAT43UHFTAVL

Main function

Fiber sensor

Shape

Cylindrical (threaded) end tip

Material

Stainless steel sensing end Plastic fiber Polyethylene fiber sheath

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIAT43UHFTA-VL on Powermatic Associates is $112.00. Order now.

About the product

Banner Engineering PIAT43UHFTA-VL is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode flex strain relief pair of individual fibers positioned side / right-angled for sensing. It operates at an ambient air temperature of up to +70°C. This sensor is part of the Plastic fiber (Vantage Line) series, characterized by a 1mm fiber core diameter. The design includes a cylindrical (threaded) end tip made of stainless steel, with the fiber itself being plastic and the sheath composed of Polyethylene (PE). The total length of the sensor is 3ft / 1m.
