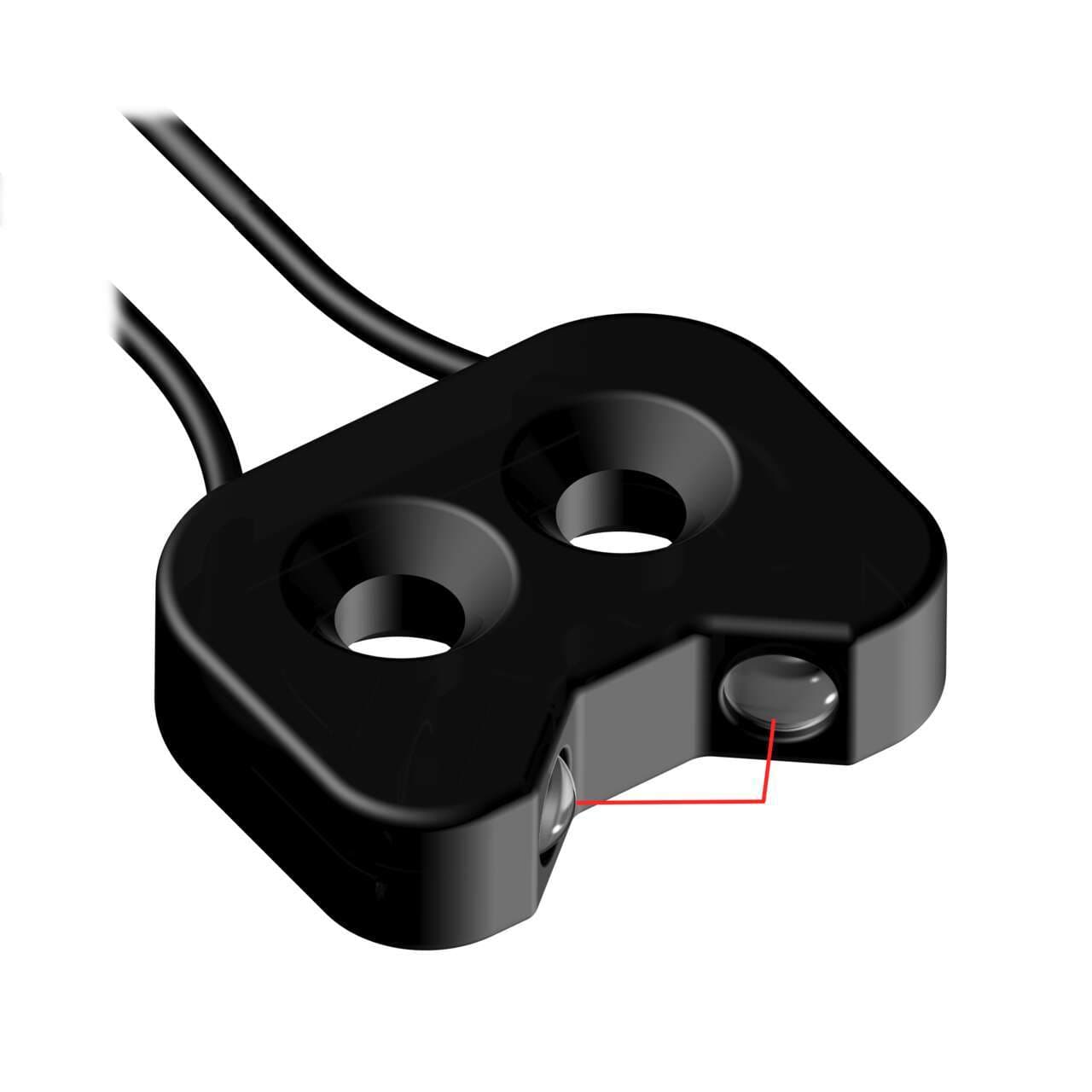

P22-C1 Banner Through Beam Sensors

Product Details

• Weight
  36.28736 g
• Country Of Origin
  JP
• Max Distance: DF-G1 (mm)
  No Data
• Max Distance: DF-G2 (mm)
  No Data
• Max Distance: DF-G3 (mm)
  No Data
• Tariff Fiber Meters (fbm)
  4
• Application: Vacuum Feed Through
  None
• Application: Liquid Level
  No
• Termination Type
  Plastic Fiber Sensors
• Feature: Small Object Detection
  No
• Fiber Sensing End Size - Mounting Area
  19.0 x 14.2 mm
• Measured Max Distance (mm)
  No Data
• Integrated Lens
  Yes
• Minimum Repeat Bending Endurance
  2000
• Feature: Extended Range
  No
• Feature: Chemical Resistant
  No
• Max Temp ( °C)
  70
• Flex Relief
  No
• Sensing End Segment 2
  Lens
• Retractile
  No
Termination
Free Cut
Minimum Bend Radius (mm)
1
Core Diameter (mm)
0.5
Sensing End Segment 1
Rectangle
Fiber Sensing End Size
19.0 x 14.2 mm
Fiber Length (m)
2
Fiber Sensing End Tip
Lens
Fiber Sheathing Material (Jacket)
Polyethylene
Sensing End Material (Specific)
Polyethylene
Sensing Mode (Detailed)
Convergent
Beam Exit
In-line
Sensing Mode (General)
Diffuse
Fiber Optic Type
Plastic
Housing Style
Fixtured
Quantity Included
1
Functions
Fiber optic sensor
Length
6ft / 2m
Ambient air temperature for operation
+70 °C
Main function
Fiber sensor
Shape
Rectangular
Equivalent to
P22C1
Product series / family name
Fiber sensors
Order code / Manufacturer SKU
56058
Primary brand
Banner Engineering
Design
diffuse-reflective system
Dimensions
19x14.2mm sensing area
Diameter
0.5mm fiber core
Sub-range name
Plastic fiber series
Material
Plastic sensing end Plastic fiber Polyethylene fiber sheath
