K50LRGX7PQ Banner Pick-to-Light Sensors

Name: K50LRGX7PQ
Brand: Banner
Price: 107 USD
Availability: BackOrder

Part#:K50LRGX7PQ

Alt. Part#:75674

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K50 Series EZ-LIGHT: 2-Color Sensor Emulation Indi; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Red Green; 5-pin M12 Integral QD

Product Details

Weight
136.0776 g
Country Of Origin
MX
Modbus RTU
No
Pro-Editor Compatible (Discrete)
No
IO Link
No
Wireless
No
Feature: Audible
No
Feature: Hazardous Area
No
Feature: Chemical Resistant
No
Application: Photoelectric Sensors
Yes
Feature: Quick Disconnect
Yes
Multi-Color Device
Single Color On
Feature: Washdown Rated
Yes
Primary Housing Color
Black
Primary Window Material
Polycarbonate Diffused
Max Op. Temperature (°C)
50
Environmental Rating
IP67; IP69
Physical Dimensions (LxWxH or DxH mm)
50.0 x 69.0
Min Op. Temperature (°C)
-40
Max Input Response Time (ms)
1

Input Type

PNP

Supply Voltage

18-30 V dc

Number of Input Pins/Conductors

Max Current Color (mA)

Color Option 2

Green

Quick Disconnect Type

M12 (Euro)

Connection

Integral QD

Animation Option 1

Solid On

Color Option 1

Red

Color Technology

Standard LED

Product Size (mm)

Number of Colors / Segments

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Mounting Thread

M30 x 1.5

Cable Length (m)

0.15

Indication

Yes

Primary Housing Material

Polycarbonate

Power

Housing Style

Base Mount - Dome Window

Power Source

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LRGX7PQ on Powermatic Associates is $107.00. Order now.

About the product

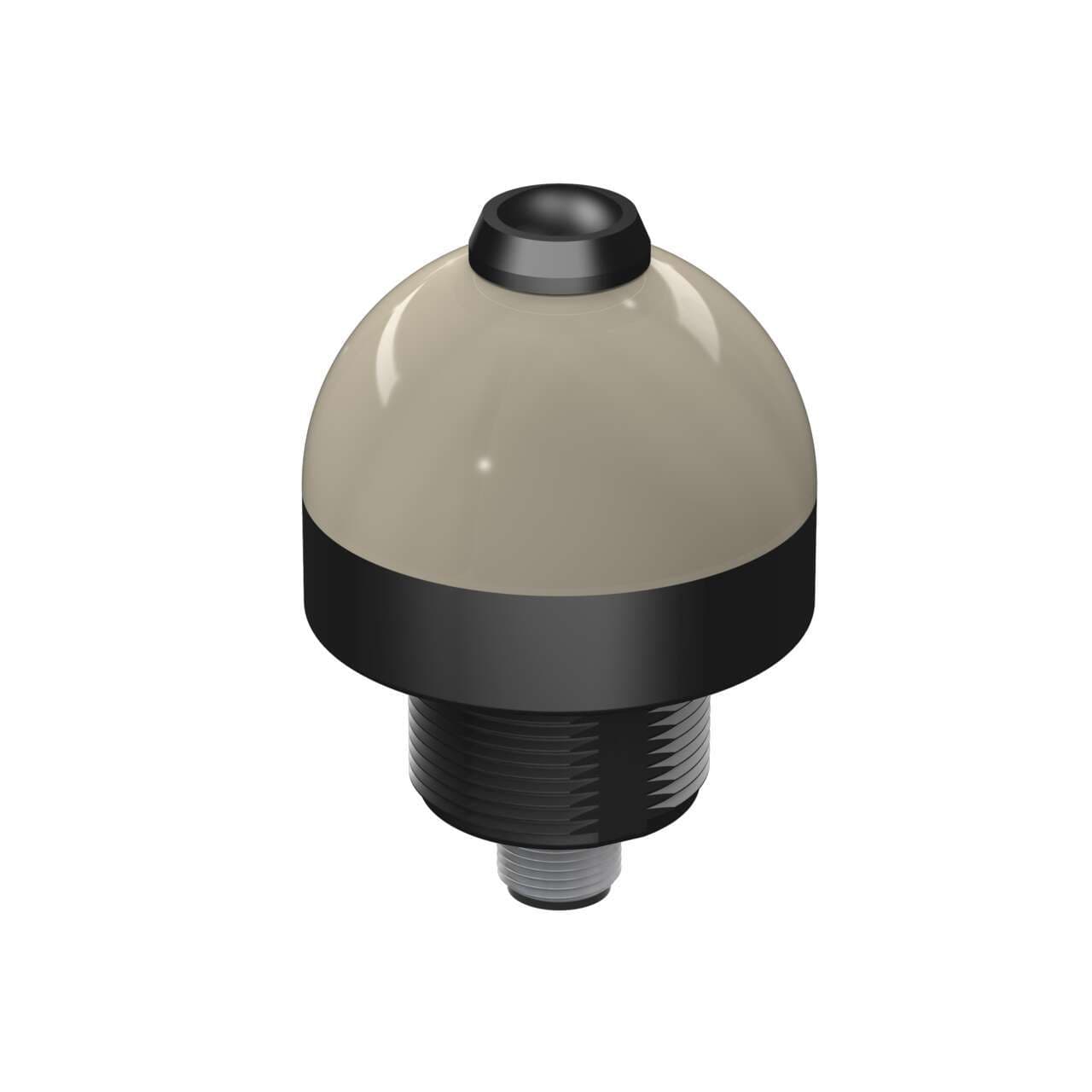

Banner Engineering K50LRGX7PQ is a pilot light from the EZ-LIGHT series designed as a phot-electric sensor emulator with a 2-color R/G color pattern LED illumination. This part features a black housing with a dome-shaped window made from diffused polycarbonate (PC) and a base also constructed from polycarbonate (PC), ensuring durability. It is pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The K50LRGX7PQ operates on a supply voltage range of 18Vdc to 30Vdc, with a nominal voltage of 24Vdc, and can be mounted on a surface, base, or pole with a flush 30mm hole M30 thread. The dome has a diameter of 50mm (2 inches), and the unit is designed to operate in ambient air temperatures ranging from -40°C to +50°C. It boasts a high degree of protection with ratings of IP67 and IP69K, indicating a high level of resistance to dust and water ingress. The current consumption is 40mA, and it features 2 x digital inputs (18-30Vdc; NPN) for color control.
