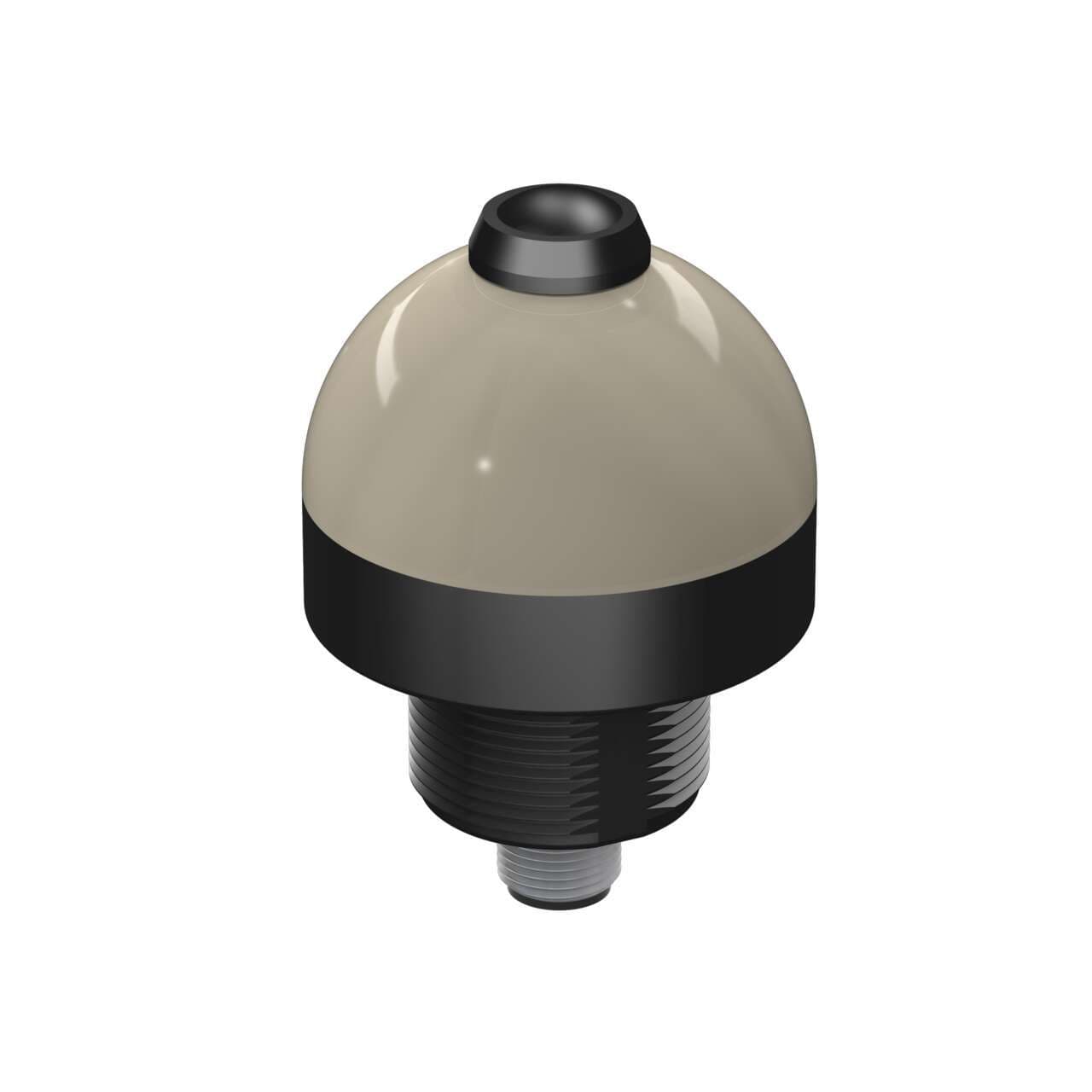

K50LWXXPPB2Q Banner Pick-to-Light Sensors

K50LWXXPPB2Q on Powermatic Associates
Banner
  • K50LWXXPPB2Q
  • K50LWXXPPB2Q

Part#:K50LWXXPPB2Q

Alt. Part#:32023

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K50L Series EZ-LIGHT: 1-Color Indicator with Dry Contact Switch; Voltage: 12-30 V dc;; Housing: Polycarbonate; IP67; Input: PNP; Colors: White; 4-pin M12 Integral QD

Product Details

  • Weight
    158.7572 g
  • Country Of Origin
    MX
  • Modbus RTU
    No
  • Wireless
    No
  • IO Link
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Feature: Chemical Resistant
    No
  • Multi-Color Device
    Single Color On
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Secondary Material
    Thermoplastic
  • Button Operation
    Momentary
  • Primary Housing Color
    Black
  • Feature: Quick Disconnect
    Yes
  • Storage Temp (°C)
    -40 to 70
  • Primary Window Material
    Polycarbonate Diffused
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Environmental Rating
    IP65
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 74.7
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    50
  • Input Type
    PNP
  • Output Type
    Dry Contact
  • Supply Voltage
    12-30 V dc
  • Operation
    Normally Open
  • Number of Input Pins/Conductors
    4
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Animation Option 1
    Solid On
  • Color Option 1
    White
  • Max Current Color (mA)
    65
  • Color Technology
    Standard LED
  • Mounting Thread
    M30 x 1.5
  • Product Size (mm)
    50
  • Number of Colors / Segments
    1
  • Power
    DC
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Housing Style
    Base Mount - Dome Window
  • Actuation
    Yes
  • Activation Function
    Push-Button
  • Primary Housing Material
    Polycarbonate
  • Power Source
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LWXXPPB2Q on Powermatic Associates is $127.00. Order now.


About the product

Banner Engineering K50LWXXPPB2Q is a pilot light from the EZ-LIGHT series designed to serve as an LED pilot light indicator. It features 1-color white LED illumination within a black housing and a dome-shaped window. The construction includes a polycarbonate (PC) diffused window and a polycarbonate (PC) base, ensuring durability. This part is pre-wired with a 2m / 6.5ft 4-wire cable that terminates with bare end flying leads for easy installation. It operates on a supply voltage of 18Vdc to 30Vdc, with 24Vdc being nominal. The K50LWXXPPB2Q offers versatile mounting options including surface, base, or pole flush with a 30mm hole and an M30 thread. The dome has a diameter of 50mm / 2 inches. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C. This part boasts a high degree of protection with ratings of IP67 and IP69K, making it suitable for harsh environments. It has a current consumption of 40mA and includes 1 x digital input (18-30Vdc; PNP) for color control.
