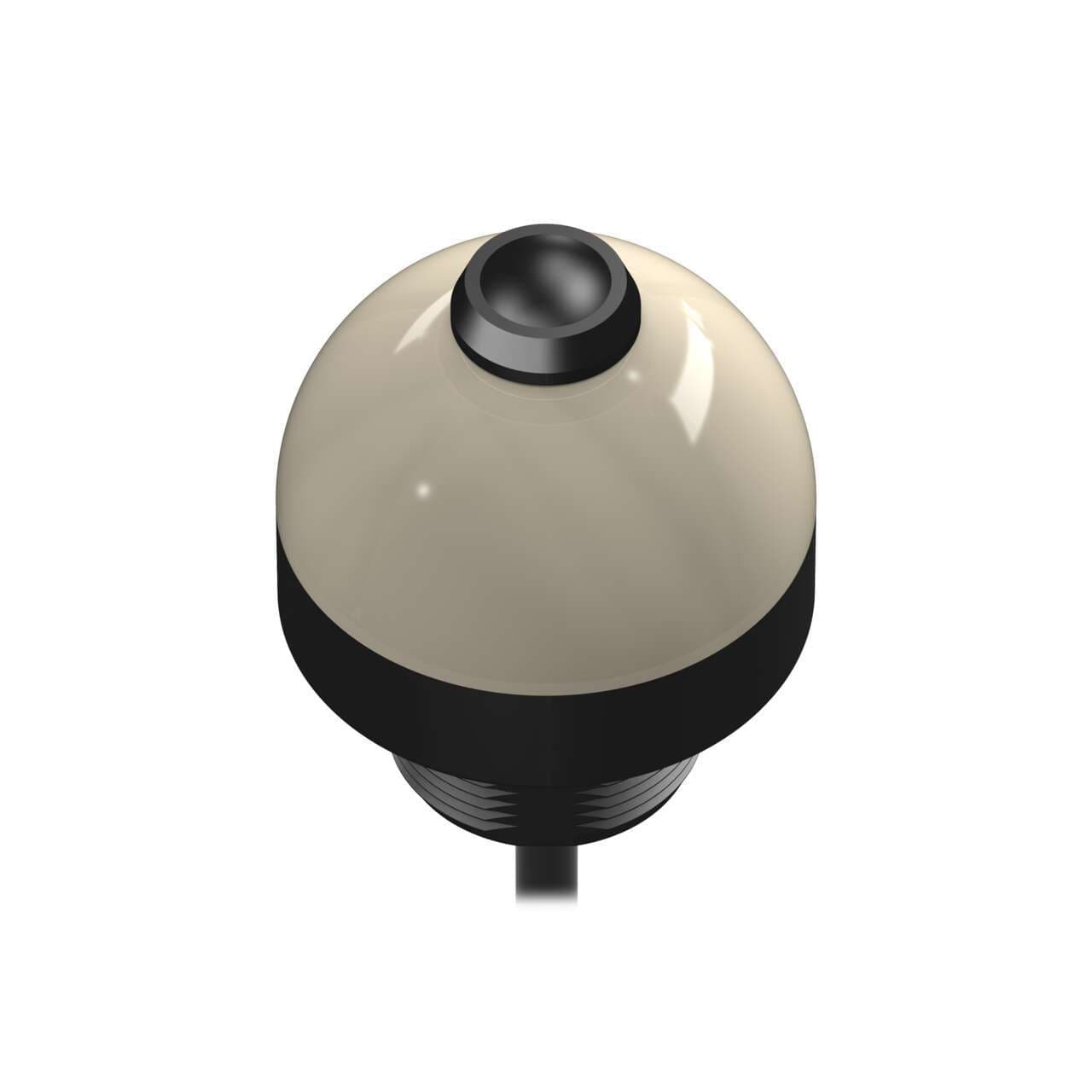

K50LGRXPPB2 Banner Pick-to-Light Sensors

K50LGRXPPB2 on Powermatic Associates
Banner
  • K50LGRXPPB2
  • K50LGRXPPB2

Part#:K50LGRXPPB2

Alt. Part#:32031

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K50L Series EZ-LIGHT: 2-Color Indicator with Dry Contact Switch; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Green Red; 2 m (6.5 ft) Integral Cable

Product Details

  • Weight
    226.796 g
  • Country Of Origin
    MX
  • Feature: Quick Disconnect
    No
  • Environmental Rating
    IP65
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Multi-Color Device
    Single Color On
  • Feature: Chemical Resistant
    No
  • Button Operation
    Momentary
  • Feature: Hazardous Area
    No
  • Feature: Audible
    No
  • Secondary Material
    Thermoplastic
  • Primary Window Material
    Polycarbonate Diffused
  • Primary Housing Color
    Black
  • Storage Temp (°C)
    -40 to 70
  • Min Op. Temperature (°C)
    -40
  • Output Type
    Dry Contact
  • Input Type
    PNP
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Max Op. Temperature (°C)
    50
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 63.7
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Supply Voltage
    12-30 V dc
  • Operation
    Normally Open
  • Number of Input Pins/Conductors
    5
  • Max Current Color (mA)
    65
  • Color Option 2
    Red
  • Connection
    Cable
  • Animation Option 1
    Solid On
  • Color Option 1
    Green
  • Color Technology
    Standard LED
  • Product Size (mm)
    50
  • Number of Colors / Segments
    2
  • Mounting Thread
    M30 x 1.5
  • Activation Function
    Push-Button
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Primary Housing Material
    Polycarbonate
  • Actuation
    Yes
  • Power Source
    DC
  • Power
    DC
  • Housing Style
    Base Mount - Dome Window

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LGRXPPB2 on Powermatic Associates is $141.00. Order now.


About the product

Banner Engineering K50LGRXPPB2 is a pilot light from the EZ-LIGHT series designed with a key switch and a 2-color G/R color pattern LED illumination. It features a black housing with a dome-shaped window made from diffused polycarbonate (PC) and a base also constructed from polycarbonate (PC). This part is pre-equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector and operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. It offers versatile mounting options including surface, base, or pole flush with a 30mm hole and an M30 thread. The dome diameter measures 50mm / 2 inches. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a high degree of protection with ratings of IP67 and IP69K. The current consumption is 65mA, and it includes 2 x digital inputs (12-30Vdc; PNP) for color control.
