EA5E1200Q

Banner

Product Lifecycle: Active

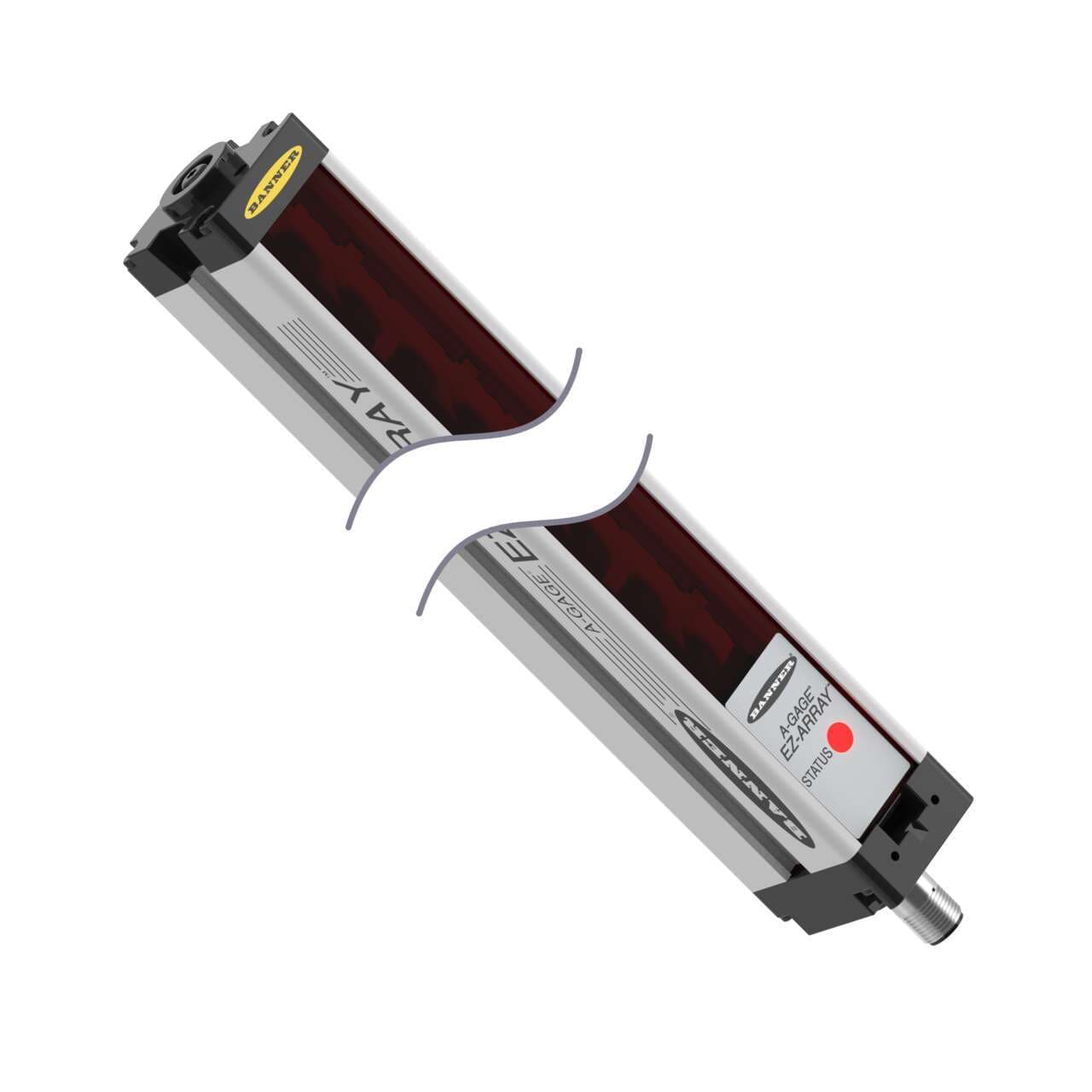

Banner Engineering EA5E1200Q is a sensor (Edge) from the EZ-ARRAY series, featuring a measuring light curtain array (emitter alone) with a resolution of 5mm and 240 beams at a 5mm beam spacing/pitch. It is housed in aluminium, ensuring durability within an ambient air temperature range of -40 to +70°C. This part is designed with a rectangular shape, 1200mm array length, and is equipped with a pre-equipped 5-pin Euro-style M12 connector for connectivity. It operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.) and emits infrared (IR) light. The EA5E1200Q is protected to a degree of IP65, making it suitable for various industrial environments.

EA5E1200Q

Banner Engineering EA5E1200Q is a sensor (Edge) from the EZ-ARRAY series, featuring a measuring light curtain array (emitter alone) with a resolution of 5mm and 240 beams at a 5mm beam spacing/pitch. It is housed in aluminium, ensuring durability within an ambient air temperature range of -40 to +70°C. This part is designed with a rectangular shape, 1200mm array length, and is equipped with a pre-equipped 5-pin Euro-style M12 connector for connectivity. It operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.) and emits infrared (IR) light. The EA5E1200Q is protected to a degree of IP65, making it suitable for various industrial environments.

Product details

  • Power Supply12-30V dc
  • Max Relative Humidity95%
  • Emitter/Receiver Range (m)0.4 - 4
  • Discrete OutputN/A
  • Minimum Object Sensitivity (mm)5-10
  • Max Temp (°C)70
  • Array Length (mm)1200
  • Housing Length (mm)1278
  • Min Temp (°C)-40
  • Number of Beams240
  • Analog OutputN/A
  • RS-485No
  • Modbus RTUNo
  • RS-232No
  • DeviceNetNo
  • IO LinkNo
  • Primary Housing MaterialAluminum
  • Device TypeTwo-Piece
  • PowerDC
  • Sensing Mode (Detailed)Emitter
  • Beam Spacing5 mm
  • Product series / family nameA-GAGE series
  • Main functionSensor (Edge)
  • FunctionsMeasuring light curtain array emitter red LED (status)
  • Distance240 beams / 5mm beam spacing/pitch
  • Degree of protectionIP65
  • Compliant with standard(s)cULus CE
  • Sub-range nameEZ-ARRAY
  • Resolution5mm
  • Ambient air temperature for operation-40...+70 °C
  • Primary brandBanner Engineering
  • Supply voltage (DC)12Vdc-30Vdc (24Vdc nom.)
  • Dimensions1200mm array length
  • Connection typePre-equipped with 5-pin Euro-style M12 connector
  • MaterialAluminium housing
  • Light ColorInfrared (IR)
  • Order code / Manufacturer SKU75430
