EA5ERBK300PIXMODSRQ Banner Measurement Sensors

EA5ERBK300PIXMODSRQ on Powermatic Associates
Banner

Part#:EA5ERBK300PIXMODSRQ

Manufacturer:Banner

Alt. Part#:81603

Product Lifecycle:Active

Get a quick Quote!

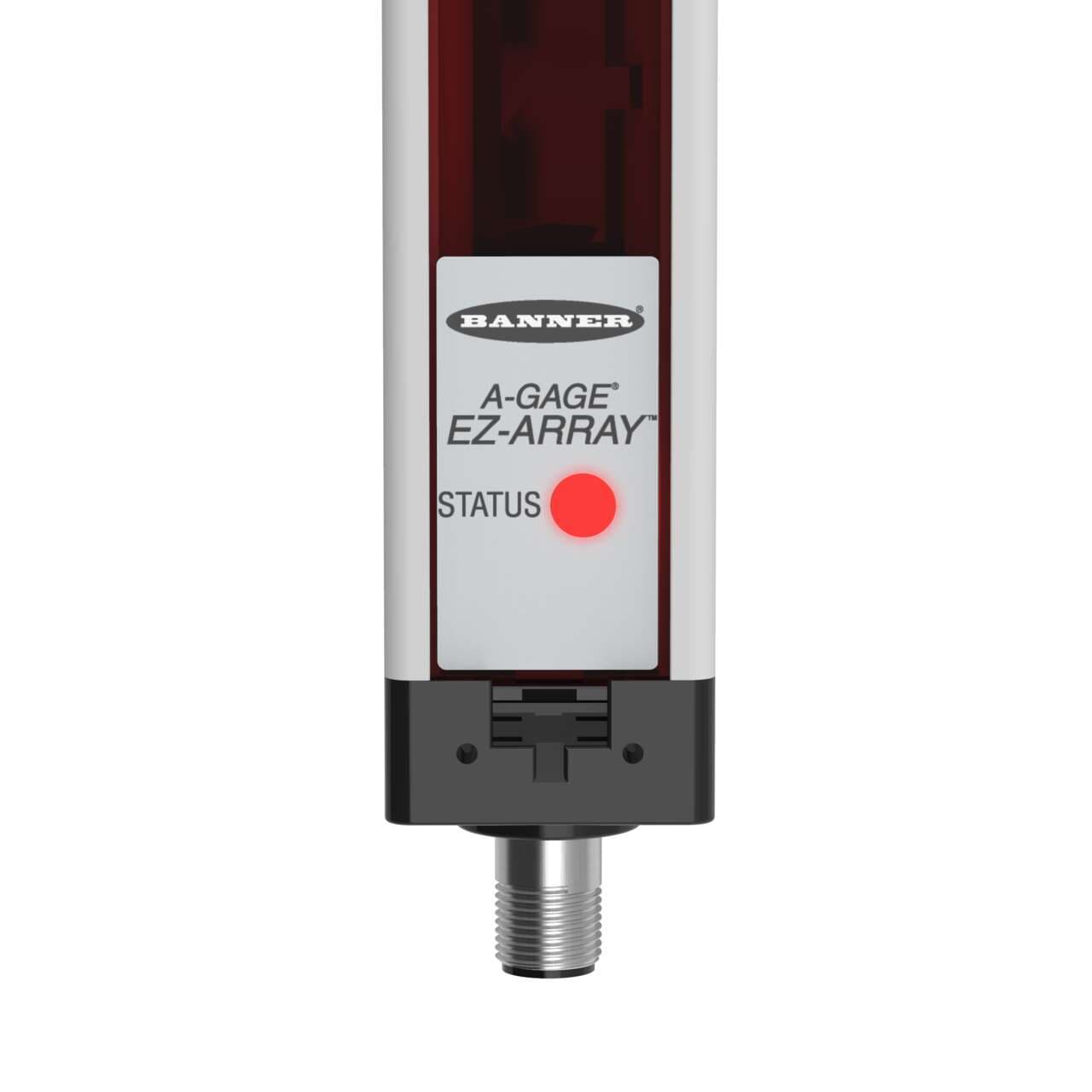

EZ-ARRAY Emitter Receiver Bracket Kit: 300 mm; Range: 30 - 1500 mm; Input: 12-30 V dc; Outputs: 2 Solid-State PNP 2 Analog 4-20 mA EIA-4; 8-pin M12 QD (2 required per Pair)

About the manufacturer: Banner is one of the manufacturers that offers Measurement Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the EA5ERBK300PIXMODSRQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    1279.12944 g
  • Country Of Origin
    MX
  • Max Relative Humidity
    95%
  • Power Supply
    12-30V dc
  • Emitter/Receiver Range (m)
    0.3 - 1.5
  • Discrete Output
    PNP
  • Minimum Object Sensitivity (mm)
    5-10
  • Max Temp (°C)
    70
  • Array Length (mm)
    300
  • Housing Length (mm)
    379
  • Min Temp (°C)
    -40
  • Number of Beams
    60
  • Analog Output
    Current (4-20 mA)
  • RS-232
    No
  • RS-485
    Yes
  • Modbus RTU
    Yes
  • DeviceNet
    No
  • Device Type
    Kit
  • IO Link
    No
  • Power
    DC
  • Beam Spacing
    5 mm
  • Primary Housing Material
    Aluminum
  • Sensing Mode (Detailed)
    Emitter/Receiver Pair
  • Short Range
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

EA5ERBK300PIXMODSRQ Description

Banner Engineering EA5ERBK300PIXMODSRQ is a sensor designed for edge detection and profile sensing, belonging to the EZ-ARRAY series. This sensor features an aluminium housing and operates within an ambient air temperature range of -40 to +70°C. It is equipped with two analog outputs (4-20mA) and two digital outputs (PNP transistor; complementary NO/NC), ensuring versatile connectivity options. The device offers a degree of protection rated at IP65, making it suitable for various industrial environments. With dimensions specifying a 300mm array length, the sensor provides a resolution of 5mm and a sensing distance of 60mm. It functions as a short-range measuring light curtain array edge/profile sensor, comprising an emitter and receiver pair. The sensor is pre-equipped with an 8-pin Euro-style M12 connector for easy installation and supports a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal. Communication is facilitated via the Modbus RTU RS-485 protocol, and the sensor features 60 beams with a 5mm beam spacing/pitch for precise detection.

Related documents EA5ERBK300PIXMODSRQ Specs

EA5ERBK300PIXMODSRQ 126701.pdf
