EA5E750Q Banner Measurement Sensors

Name: EA5E750Q
Brand: Banner
Price: 1437 USD
Availability: BackOrder

Part#:EA5E750Q

Alt. Part#:75427

Manufacturer:Banner

Category:Measurement Sensors

Product Lifecycle:Active

Product description

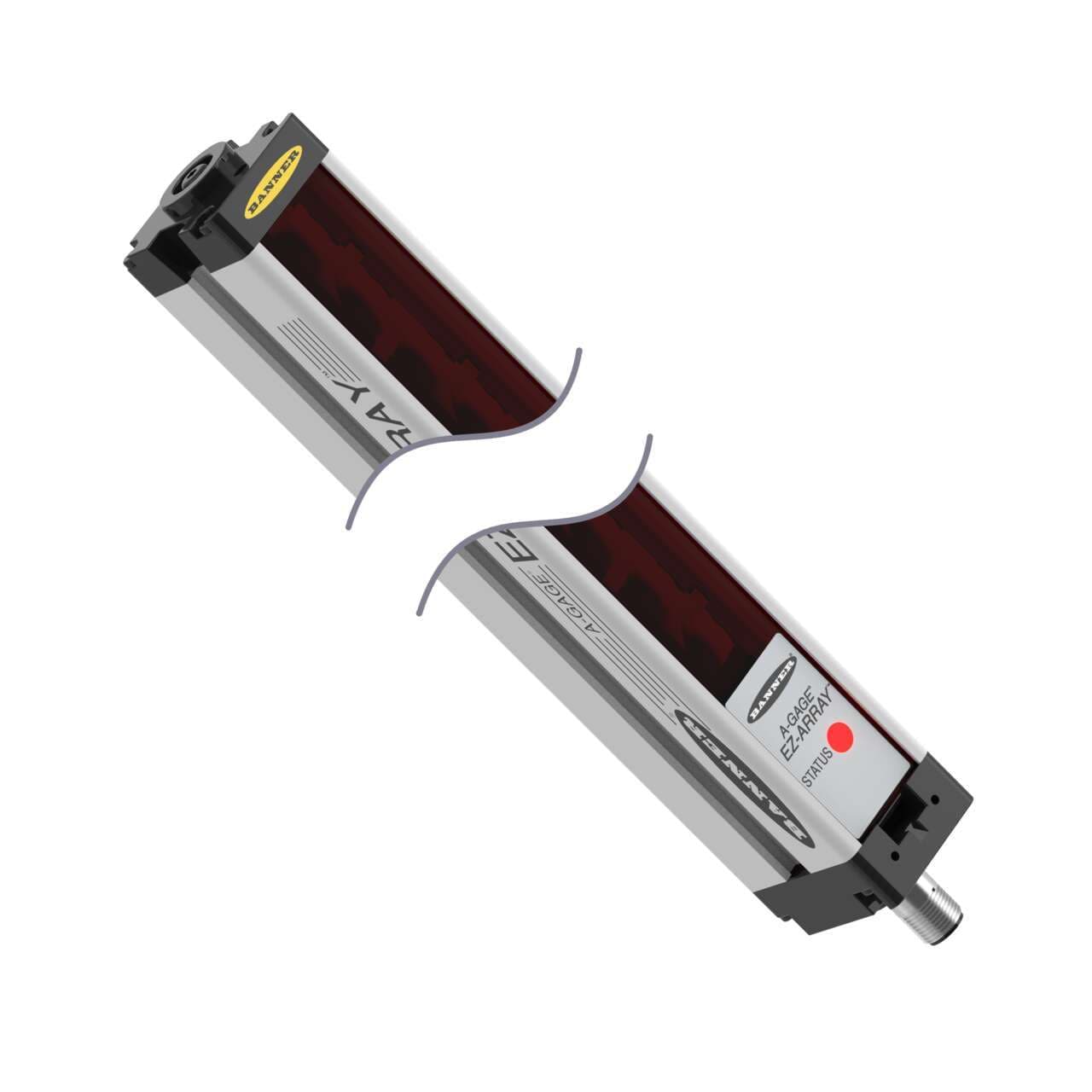

EA5E750Q EZ-ARRAY 5 mm OPTICAL SPACING x 750 mm EMITTER

Product Details

Weight
2540.1152 g
Country Of Origin
MX
Power Supply
12-30V dc
Emitter/Receiver Range (m)
0.4 - 4
Max Relative Humidity
95%
Discrete Output
N/A
Minimum Object Sensitivity (mm)
5-10
Array Length (mm)
750
Max Temp (°C)
70
Min Temp (°C)
-40
Housing Length (mm)
828
Number of Beams
150
Analog Output
N/A
RS-485
No
RS-232
No
DeviceNet
No
Device Type
Two-Piece
IO Link
No
Primary Housing Material
Aluminum
Beam Spacing
5 mm

Sensing Mode (Detailed)

Emitter

Modbus RTU

Power

Primary brand

Banner Engineering

Functions

Measuring light curtain array emitter red LED (status)

Degree of protection

IP65

Order code / Manufacturer SKU

75427

Product series / family name

A-GAGE series

Light Color

Infrared (IR)

Distance

150 beams / 5mm beam spacing/pitch

Main function

Sensor (Edge)

Supply voltage (DC)

12Vdc-30Vdc (24Vdc nom.)

Material

Aluminium housing

Dimensions

750mm array length

Sub-range name

EZ-ARRAY

Connection type

Pre-equipped with 5-pin Euro-style M12 connector

Compliant with standard(s)

cULus CE

Resolution

5mm

Ambient air temperature for operation

-40...+70 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EA5E750Q on Powermatic Associates is $1,437.00. Order now.

EA5E750Q Description

Banner Engineering EA5E750Q is a sensor (Edge) from the EZ-ARRAY series, featuring a measuring light curtain array (emitter alone) with a resolution of 5mm and 150 beams at a 5mm beam spacing/pitch. It is housed in aluminium with dimensions of 750mm array length and is designed to operate in ambient air temperatures ranging from -40 to +70°C. This part offers a degree of protection of IP65, making it suitable for various industrial environments. It emits infrared (IR) light and has a rectangular shape. The EA5E750Q is pre-equipped with a 5-pin Euro-style M12 connector for connectivity and requires a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal.

EA5E750Q Related Documents

130426.pdf.pdf
