EA5ERBK150PUXMODSRQ Banner Measurement Sensors

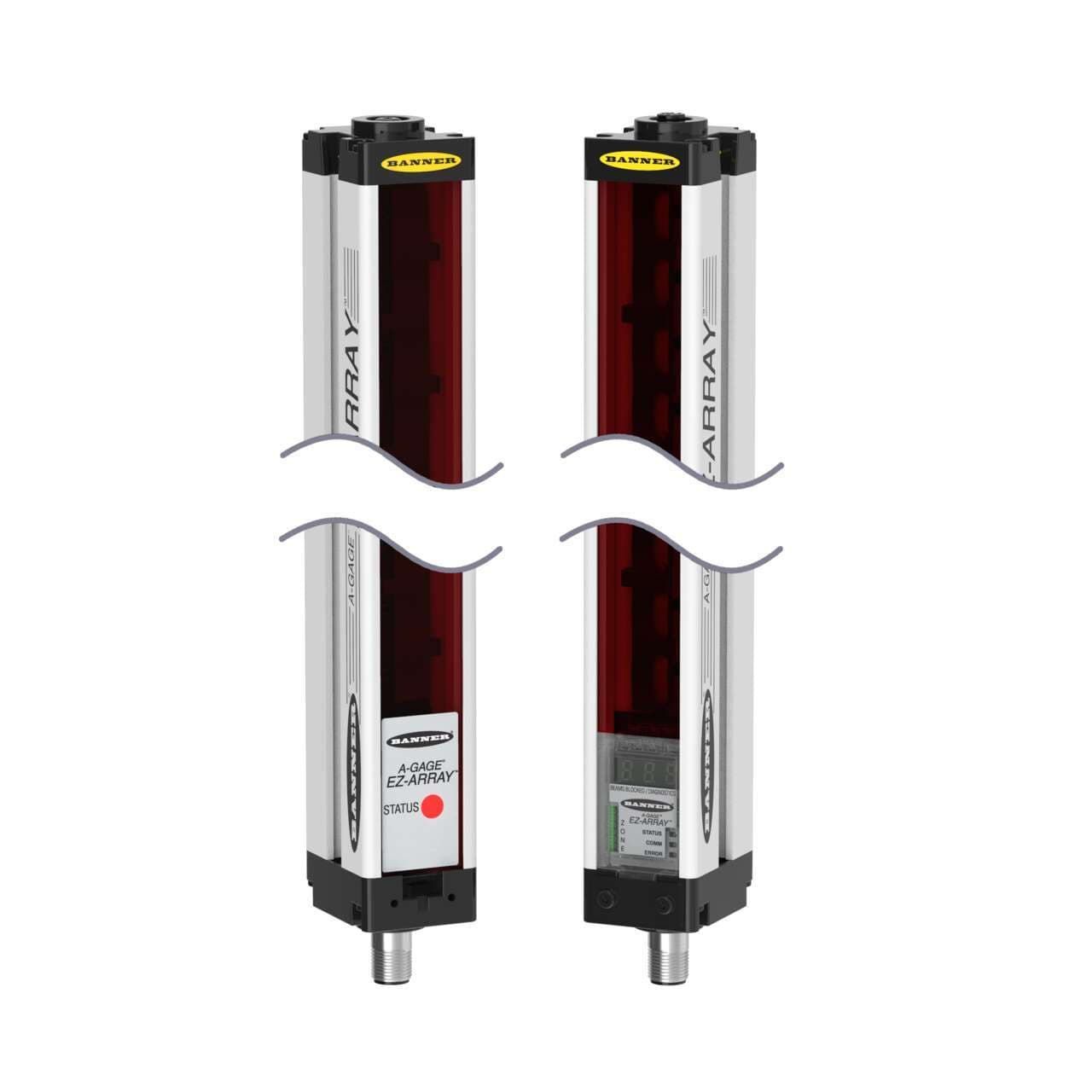

Banner Engineering EA5ERBK150PUXMODSRQ is a sensor designed for edge detection and profile sensing, belonging to the EZ-ARRAY series. This sensor features an aluminium housing and operates within an ambient air temperature range of -40 to +70°C. It is equipped with two analog outputs (0-10Vdc) and two digital outputs (PNP transistor; complementary NO/NC), ensuring versatile connectivity options. The sensor offers a degree of protection rated at IP65, making it suitable for various industrial environments. With dimensions specifying a 150mm array length, it has a rectangular shape and provides a resolution of 5mm. The sensing distance is set at 60mm, designed for short-range measuring with a light curtain array that includes an emitter and receiver pair. This model is pre-equipped with an 8-pin Euro-style M12 connector for easy installation and supports a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. It utilizes the Modbus RTU RS-485 communication protocol for data transmission and is configured with 30 beams at a 5mm beam spacing/pitch, enhancing its sensing capabilities.
