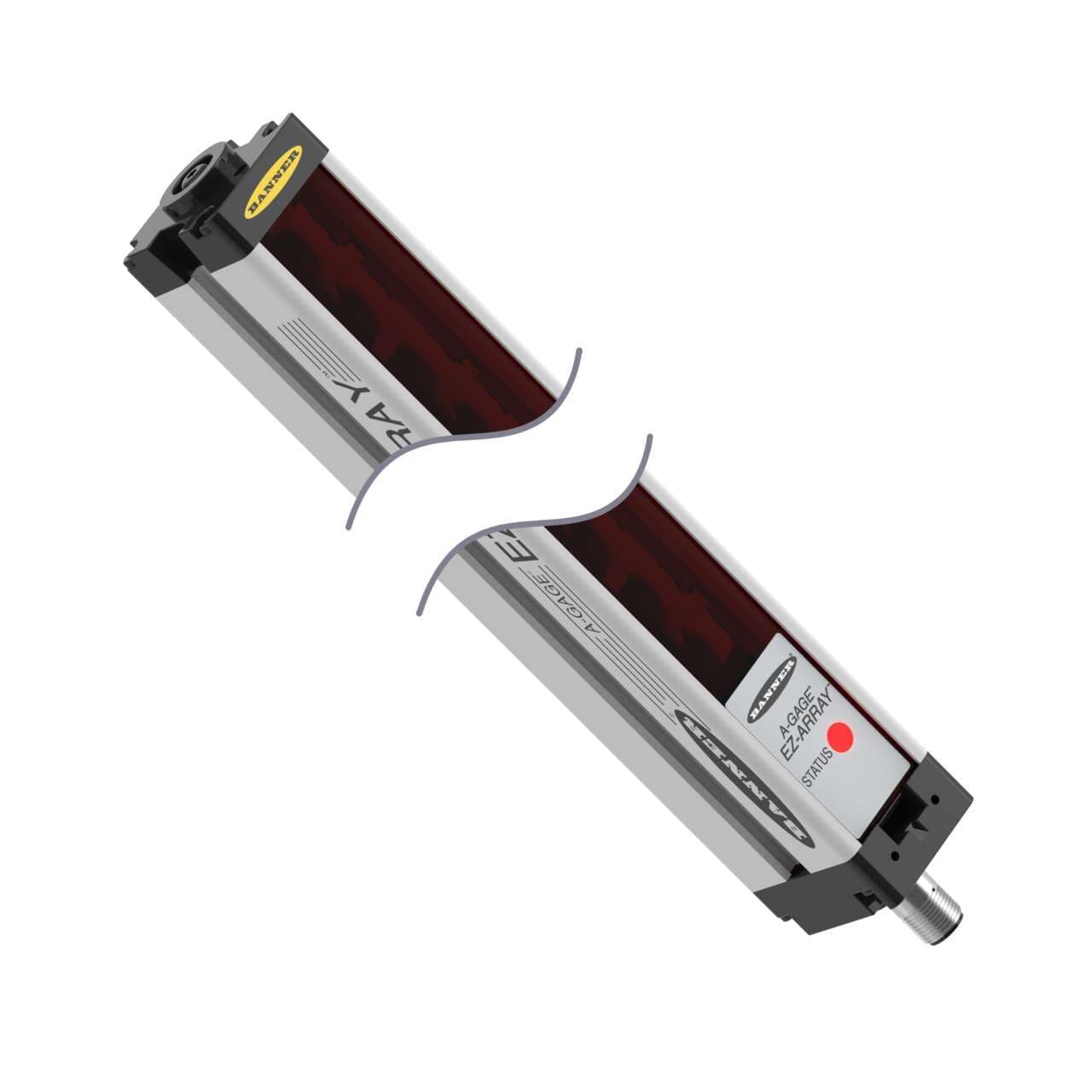

EA5E150Q Banner Measurement Sensors
Part#:EA5E150Q
Alt. Part#:75423
Manufacturer:Banner
Category:Measurement Sensors
Product Lifecycle:Active
Product description
EA5E150Q EZ-ARRAY 5 mm OPTICAL SPACING x 150 mm EMITTER
Product Details
- Weight 1397.06336 g
- Country Of Origin MX
- Emitter/Receiver Range (m) 0.4 - 4
- Max Temp (°C) 70
- Minimum Object Sensitivity (mm) 5-10
- Power Supply 12-30V dc
- Max Relative Humidity 95%
- Discrete Output N/A
- Housing Length (mm) 227
- Array Length (mm) 150
- Number of Beams 30
- Min Temp (°C) -40
- Analog Output N/A
- RS-485 No
- RS-232 No
- Device Type Two-Piece
- Primary Housing Material Aluminum
- IO Link No
- Power DC
- Modbus RTU No
- DeviceNet No
- Beam Spacing 5 mm
- Sensing Mode (Detailed) Emitter
- Sub-range name EZ-ARRAY
- Main function Sensor (Edge)
- Primary brand Banner Engineering
- Distance 30 beams / 5mm beam spacing/pitch
- Degree of protection IP65
- Order code / Manufacturer SKU 75423
- Product series / family name A-GAGE series
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Compliant with standard(s) cULus CE
- Supply voltage (DC) 12Vdc-30Vdc (24Vdc nom.)
- Dimensions 150mm array length
- Ambient air temperature for operation -40...+70 °C
- Functions Measuring light curtain array emitter red LED (status)
- Light Color Infrared (IR)
- Resolution 5mm
- Material Aluminium housing
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EA5E150Q on Powermatic Associates is $723.00. Order now.
About the product
Banner Engineering EA5E150Q is a sensor (Edge) from the EZ-ARRAY series, featuring a measuring light curtain array (emitter alone) with a 150mm array length and 30 beams at a 5mm beam spacing/pitch. It is constructed with an aluminium housing and designed to operate within an ambient air temperature range of -40 to +70°C. This part offers a degree of protection rated at IP65, ensuring its suitability for various industrial environments. The EA5E150Q utilizes infrared (IR) light and has a resolution of 5mm. It is pre-equipped with a 5-pin Euro-style M12 connector for connectivity and operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal. The shape of the sensor is rectangular, aligning with its functional and installation requirements.
