EA5E2400Q Banner Measurement Sensors

Name: EA5E2400Q
Brand: Banner
Price: 3294 USD
Availability: BackOrder

Part#:EA5E2400Q

Alt. Part#:75434

Manufacturer:Banner

Category:Measurement Sensors

Product Lifecycle:Active

Product description

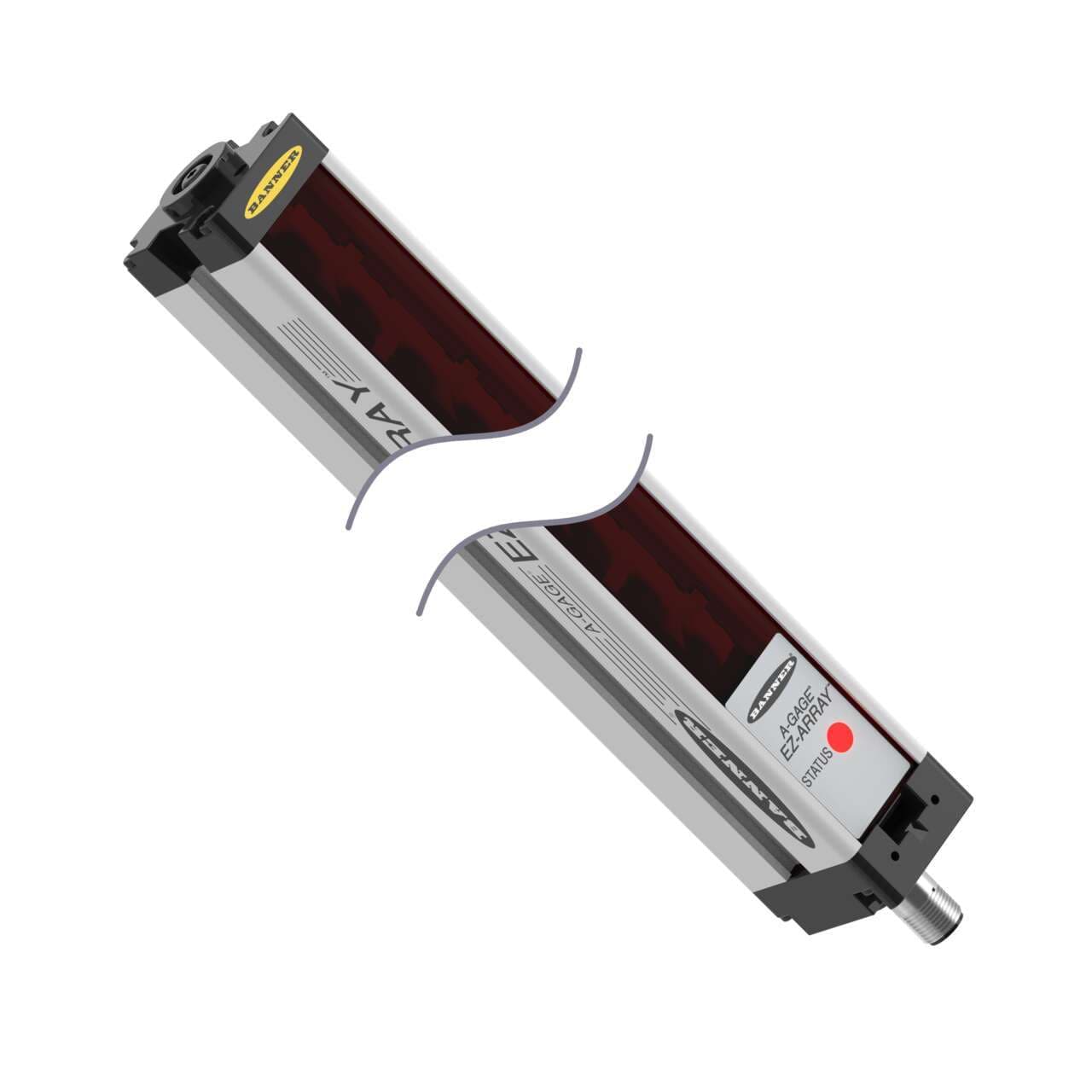

EA5E2400Q EZ-ARRAY 5 mm OPTICAL SPACING x 2400 mm EMITTER

Product Details

Weight
6350.288 g
Country Of Origin
MX
Power Supply
12-30V dc
Max Relative Humidity
95%
Emitter/Receiver Range (m)
0.4 - 4
Discrete Output
N/A
Minimum Object Sensitivity (mm)
5-10
Array Length (mm)
2400
Max Temp (°C)
70
Number of Beams
480
Analog Output
N/A
Housing Length (mm)
2478
Min Temp (°C)
-40
RS-485
No
Modbus RTU
No
RS-232
No
DeviceNet
No
IO Link
No
Beam Spacing
5 mm
Device Type
Two-Piece

Power

Primary Housing Material

Aluminum

Sensing Mode (Detailed)

Emitter

Connection type

Pre-equipped with 5-pin Euro-style M12 connector

Light Color

Infrared (IR)

Supply voltage (DC)

12Vdc-30Vdc (24Vdc nom.)

Distance

480 beams / 5mm beam spacing/pitch

Material

Aluminium housing

Main function

Sensor (Edge)

Resolution

5mm

Order code / Manufacturer SKU

75434

Primary brand

Banner Engineering

Ambient air temperature for operation

-40...+70 °C

Product series / family name

A-GAGE series

Degree of protection

IP65

Compliant with standard(s)

cULus CE

Sub-range name

EZ-ARRAY

Functions

Measuring light curtain array emitter red LED (status)

Dimensions

2400mm array length

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EA5E2400Q on Powermatic Associates is $3,294.00. Order now.

About the product

Banner Engineering EA5E2400Q is a sensor (edge) from the EZ-ARRAY series, designed with an aluminium housing and a rectangular shape. It features a 2400mm array length and operates within an ambient air temperature range of -40 to +70°C. This measuring light curtain array (emitter alone) offers a resolution of 5mm, with 480 beams and a 5mm beam spacing/pitch. It emits infrared (IR) light and is protected to a degree of IP65. The EA5E2400Q is pre-equipped with a 5-pin Euro-style M12 connector for connectivity and requires a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal.
