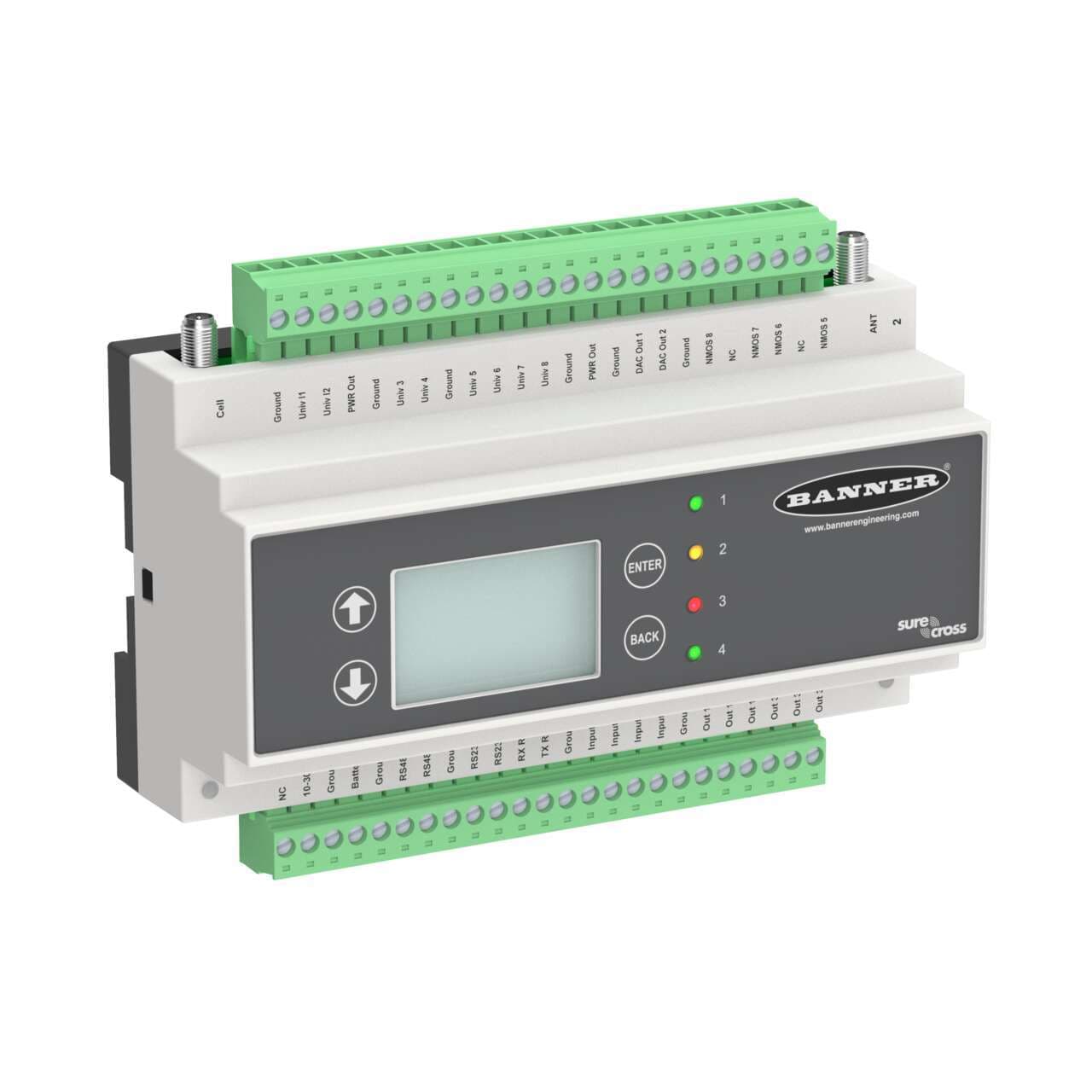

DXM150-B1R2 Banner I/O Modules

DXM150-B1R2 on Powermatic Associates
Banner

Part#:DXM150-B1R2

Manufacturer:Banner

Category:I/O Modules

Alt. Part#:91027

Product Lifecycle:Active

Get a quick Quote!

DXM150 Controller; Multihop Radio 900 MHz 1 W; Inputs: 2 Discrete, 8 Universal; Outputs: 2 Relay, 4 Discrete, 2 Analog; SAM4 Processor, LCD Display; RS485, Ethernet, USB, CAN, RS232, Solar/Battery Controller

About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DXM150-B1R2 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    662.24432 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    No
  • Wireless Radio Frequency
    900 MHz
  • Wireless
    Yes
  • PROFINET
    No
  • RS-232
    Yes
  • RS-485
    Yes
  • Modbus/TCP
    Yes
  • Modbus RTU
    Yes
  • EtherNet/IP
    Yes
  • Application: Indicator Light
    Yes
  • Feature: Hazardous Area
    No
  • Dimension Length (mm)
    150
  • On-Board Memory (MB)
    2
  • Star Topology
    Yes
  • Tree Topology
    Yes
  • Processing Speed (MHz)
    100
  • Relative Humidity
    95%
  • Min Temp Operating Conditions
    -20
  • Point-to-Multipoint Topology
    Yes
  • Max Temp Operating Conditions
    60
  • Point-to-Point Topology
    Yes
  • LCD Display
    Yes
  • Environmental Rating (IP)
    IP20
  • Power Supply
    12-30 V dc
  • Output Details
    2 Relay, 4 NMOS, 2 Analog
  • Input Details
    2 Isolated discrete and 8 Universal
  • Discrete Outputs
    Yes
  • Discrete Inputs
    Yes
  • Input/Output
    Analog & Discrete
  • Analog Outputs
    Yes
  • Analog Inputs
    Yes
  • Power
    DC
  • Device Type
    Wireless Controller with MultiHop Radio
  • Housing Style
    External Terminals

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DXM150-B1R2 Description

Banner Engineering DXM150-B1R2 is a Remote I/O controller designed for DIN rail mounting and features a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. This controller is equipped with 2 analog outputs (0-20mA / 0-10Vdc), 2 digital outputs (SPDT / Form-C / NO/NC contact type; 16A / 250Vac), and 4 digital outputs (12Vdc-30Vdc; NMOS; 1A), alongside 2 digital inputs (12-30Vdc isolated inputs) and 8 digital inputs (12Vdc-30Vdc; Sink/Source/Counter) which can also function as 8AI (4-20mA / 0-10Vdc / 10kΩ thermistor). It features a 100MHz processing speed, isolated inputs, and a built-in relay. The DXM150-B1 series utilizes Frequency Hopping Spread Spectrum (FHSS) technology with a SAM4 processor and CAN for robust communication. Connection types include an RJ45 connector for Ethernet and an RP-SMA connector. It requires a supply voltage of 12-30Vdc (12Vdc-24Vdc nom.) and supports RS-485, RS-232, Modbus RTU, Modbus TCP, and Ethernet/IP communication protocols. The memory capacity is 2MB on-board and expandable up to 8GB via SD card. Operating on a 900MHz ISM band with a 1W radio (HE5 MultiHop data radio; North America), it can achieve a maximum transmission distance of 9.6km at nominal emission power. The dimensions of the DXM150-B1R2 are H93.9mm x W156mm x D94.6mm.

Related documents DXM150-B1R2 Specs

DXM150-B1R2 178136.pdf
