DXM1200E-B1R1 Banner I/O Modules

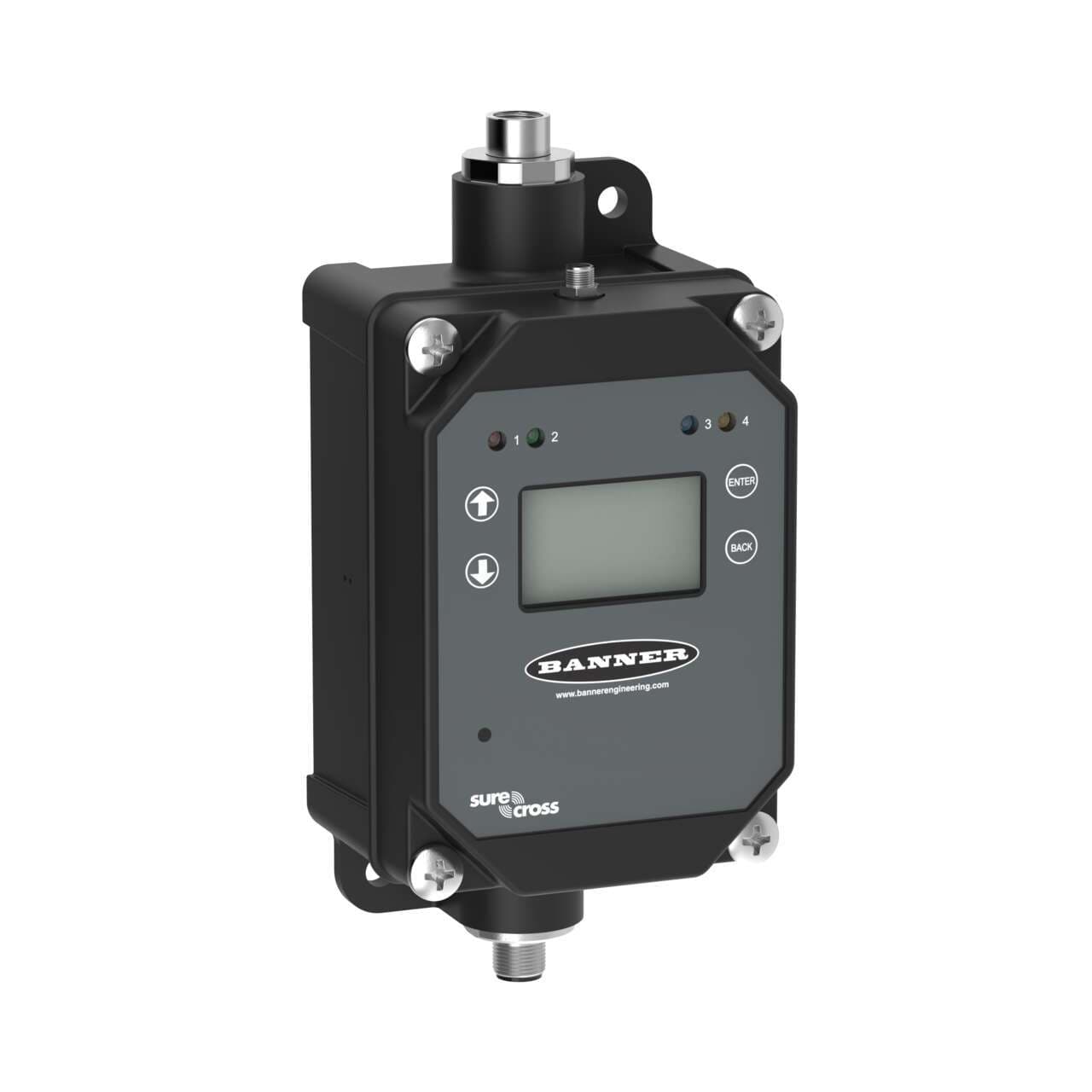

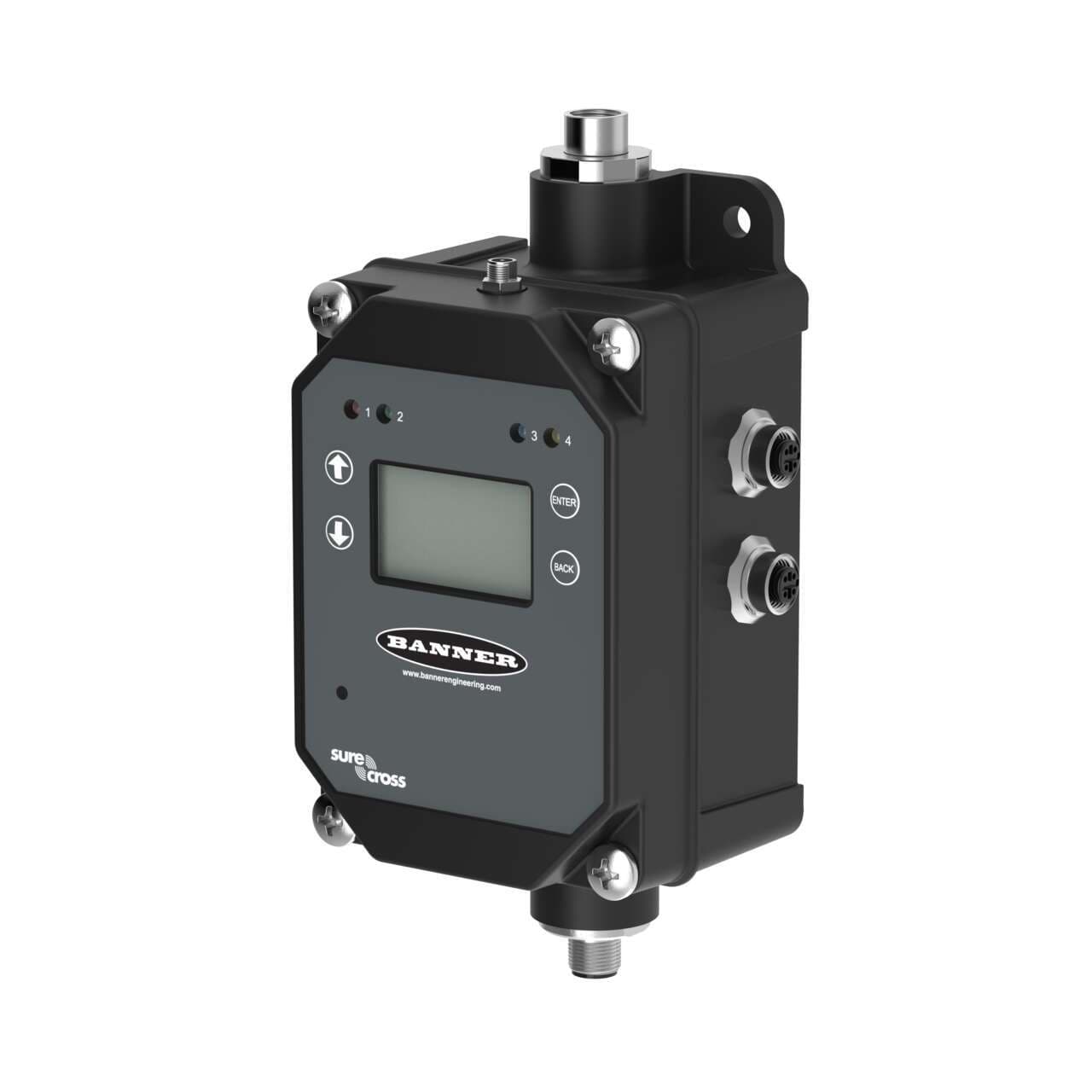

Banner Engineering DXM1200E-B1R1 is a remote I/O controller designed for surface mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP67. The dimensions of this controller are H74.6mm x W180.9mm x D90.8mm. It utilizes a 900 MHz transmission frequency and is part of the DXM1200E-B1 series. This model features a 300MHz processing speed and an extended housing for data aggregation of sensors and wireless networks, employing FHSS (Frequency Hopping Spread Spectrum) technology with an M7 processor. Connection options include a 4-pin M12 female connector (D-coded; Ethernet), a 5-pin M12 male connector, two 5-pin M12 female connectors, and an RP-SMA connector. The supply voltage required is 12-30Vdc (12Vdc-24Vdc nom.). It supports RS-485 Modbus RTU, Modbus TCP, Ethernet/IP, and PROFINET communication protocols. The memory capacity includes 16MB of on-board memory and an 8GB SD card. The frequency is set at the 900MHz ISM band with a 1W radio (PE5 performance radio; North America), capable of a maximum transmission distance of 9.6km at nominal emission power.
