DXM1200-B1R2 Banner I/O Modules

DXM1200-B1R2 on Powermatic Associates
Banner
  • DXM1200-B1R2
  • DXM1200-B1R2

Part#:DXM1200-B1R2

Alt. Part#:801554

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

DXM1200 Controller; Multihop Radio 900 MHz 1 W; M7 Processor, 16MB Memory, LCD Display; RS485, Ethernet (M8)

Product Details

  • Weight
    508.02304 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    No
  • RS-232
    No
  • Wireless Radio Frequency
    900 MHz
  • Wireless
    Yes
  • RS-485
    Yes
  • Application: Indicator Light
    Yes
  • Feature: Hazardous Area
    No
  • Modbus/TCP
    Yes
  • PROFINET
    Yes
  • Modbus RTU
    Yes
  • EtherNet/IP
    Yes
  • On-Board Memory (MB)
    16
  • Processing Speed (MHz)
    300
  • Tree Topology
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Star Topology
    Yes
  • Min Temp Operating Conditions
    -20
  • Point-to-Point Topology
    Yes
  • LCD Display
    Yes
  • Environmental Rating (IP)
    IP67
  • Relative Humidity
    95%
  • Max Temp Operating Conditions
    60
  • Power Supply
    12-30 V dc
  • Device Type
    Wireless Controller with MultiHop Radio
  • Power
    DC
  • Housing Style
    IP67 Internal Antenna

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DXM1200-B1R2 on Powermatic Associates is $820.00. Order now.

About the product

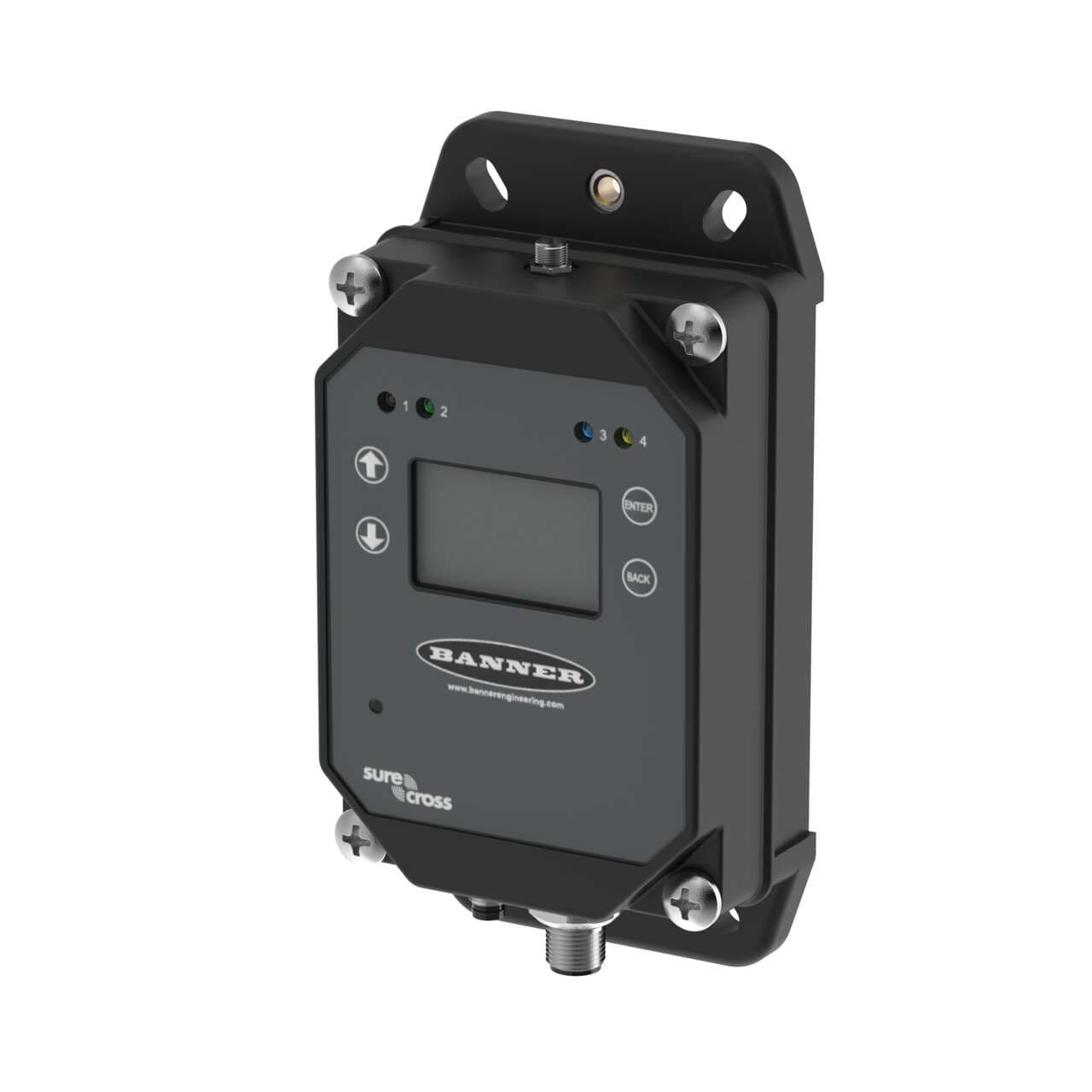

Banner Engineering DXM1200-B1R2 is a remote I/O controller designed for surface mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP67. The dimensions of this controller are H50.9mm x W170.5mm x D90.8mm. It utilizes a 900 MHz transmission frequency and is equipped with a 300MHz processing speed for efficient data aggregation of sensor and wireless networks, incorporating FHSS (Frequency Hopping Spread Spectrum) technology and an M7 processor. Connection options include a 4-pin M8 male connector for Ethernet, a 5-pin M12 male connector, and an RP-SMA connector. The DXM1200-B1R2 supports a supply voltage range of 12-30Vdc (12Vdc-24Vdc nom.) and communicates via RS-485 Modbus RTU, Modbus TCP, Ethernet/IP, and PROFINET protocols. It has a memory capacity of 16MB on-board and supports an 8GB SD card. The frequency band is the 900MHz ISM with a 1W radio (HE5 MultiHop data radio; North America), capable of a maximum transmission distance of 9.6km at nominal emission power.
