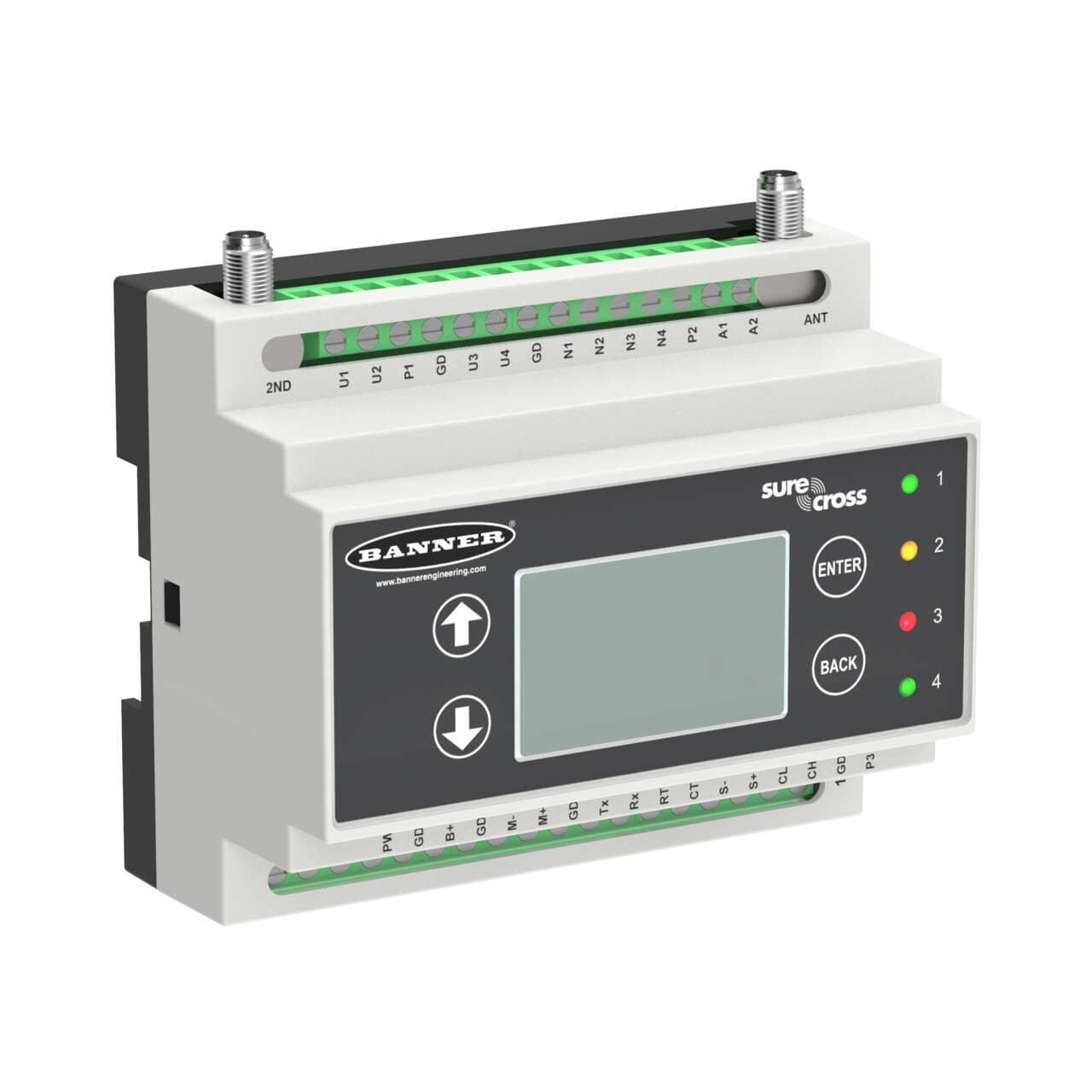

DXM1000-B1R3 Banner I/O Modules

DXM1000-B1R3 on Powermatic Associates
Banner
  • DXM1000-B1R3
  • DXM1000-B1R3

Part#:DXM1000-B1R3

Alt. Part#:807402

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

DXM1000 Controller; DX80 Performance Gateway 2.4 GHz 65 mW; Inputs: 4 Universal; Outputs: 4 NMOS Discrete, 2 Selectable Analog, 2 Switched Power, 1 Courtesy Power; M7 Processor, 16MB Memory, LCD Display; RS485, Ethernet, USB, CAN, RS232, Solar/Battery Controller

Product Details

  • Weight
    498.9512 g
  • Country Of Origin
    US
  • Wireless Radio Frequency
    2.4 GHz
  • 1-wire Serial Interface
    No
  • Modbus RTU
    Yes
  • Star Topology
    Yes
  • Wireless
    Yes
  • RS-485
    Yes
  • RS-232
    Yes
  • PROFINET
    Yes
  • Modbus/TCP
    Yes
  • EtherNet/IP
    Yes
  • Application: Indicator Light
    Yes
  • Feature: Hazardous Area
    No
  • Dimension Length (mm)
    100
  • Processing Speed (MHz)
    300
  • Tree Topology
    No
  • On-Board Memory (MB)
    16
  • Point-to-Point Topology
    Yes
  • Relative Humidity
    95%
  • LCD Display
    Yes
  • Min Temp Operating Conditions
    -20
  • Point-to-Multipoint Topology
    Yes
  • Max Temp Operating Conditions
    60
  • Environmental Rating (IP)
    IP20
  • Output Details
    4 NMOS Discrete, 2 Selectable Analog
  • Power Supply
    12-30 V dc
  • Power
    DC
  • Input Details
    4 Universal Inputs
  • Discrete Outputs
    Yes
  • Analog Outputs
    Yes
  • Discrete Inputs
    Yes
  • Analog Inputs
    Yes
  • Input/Output
    Analog & Discrete
  • Device Type
    Wireless Controller with Performance Gateway
  • Housing Style
    External Terminals

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DXM1000-B1R3 on Powermatic Associates is $899.00. Order now.

About the product

Banner Engineering DXM1000-B1R3 is a remote I/O controller designed for DIN rail mounting and features a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers two analog outputs (0-20mA / 0-10Vdc), alongside four digital outputs (12Vdc-30Vdc; NMOS; 1A). This part also includes four digital inputs (12-30Vdc; Sink/Source/Counter) that can alternatively be used as four analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). With dimensions of H59.5mm x W104mm x D94.6mm and an IP20 degree of protection, it utilizes a 300MHz processing speed for efficient data aggregation of sensor and wireless networks, incorporating FHSS (Frequency Hopping Spread Spectrum) technology and an M7 processor CAN. Connection options include an RJ45 connector for Ethernet and an RP-SMA connector, supporting a supply voltage of 12-30Vdc (12Vdc-24Vdc nom.). The DXM1000-B1R3 supports multiple communication protocols, including RS-485, RS-232, Modbus RTU, Modbus TCP, Ethernet/IP, and PROFINET. It features a memory capacity of 16MB (on-board) and 8GB (SD card), operating on a 2.4GHz ISM band 65mW radio (PE5 performance radio; worldwide) with a maximum transmission distance of 3.2km at nominal emission power.

DXM1000-B1R3 Related Documents

210852.pdf
